USER/INSTALLER MANUAL
Ø35 mm
20kg
TUB10R
TUB20R
TUB20
TUB20EFRA
Ø45 mm
25kg
35kg
50kg
70kg
TUB25E
TUB35E
TUB50E
TUB70E
TUB25EFRA
TUB35EFRA
TUB50EFRA
TUB70EFRA
TUB90EFRA
TUB25 24V
-
TUB50MT
-
TUB25CUT
-
-
-
TUB90M8MT
-
-
-
TUB90M8FRAMT
MANUAL DO UTILIZADOR/INSTALADOR
Ø59 mm
90kg
140kg
180kg
TUB90E
TUB140
TUB180
TUB140MT
TUB180MT
TUB90MT
Ø92 mm
200kg
300kg
TUB200R2
TUB300E
EN
v6.3
REV. 02/2023
600kg
TUB600E
Advertisement
Table of Contents
Related Manuals for Motorline professional TUB10R
Summary of Contents for Motorline professional TUB10R

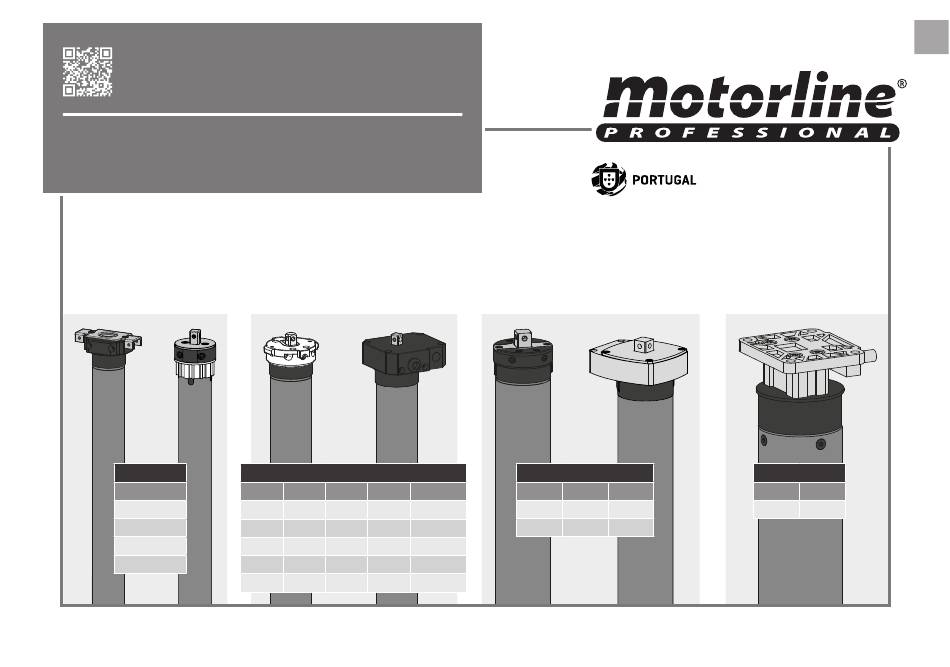

- Page 1 REV. 02/2023 Ø35 mm Ø45 mm Ø59 mm Ø92 mm 20kg 25kg 35kg 50kg 70kg 90kg 140kg 180kg 200kg 300kg 600kg TUB10R TUB25E TUB35E TUB50E TUB70E TUB90E TUB140 TUB180 TUB200R2 TUB300E TUB600E TUB20R TUB25EFRA TUB35EFRA TUB50EFRA TUB70EFRA TUB90EFRA TUB140MT...
- Page 2 00. CONTENT 01. SAFETY INSTRUCTIONS 01. SAFETY INSTRUCTIONS INDEX ATTENTION: STANDARDS TO FOLLOW 01. SAFETY INSTRUCTIONS This product is certified in accordance with European Community (EC) safety standards. 02. THE AUTOMATISM MOTORS MODELS AND REFERENCES This product complies with Directive 2011/65/EU of the 03.
- Page 3 01. SAFETY INSTRUCTIONS GENERAL WARNINGS • Children shouldn’t play with the product or opening devices to avoid the motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. Read all instructions carefully before beginning the installation/ WARNINGS FOR TECHNICIANS usage procedures and keep this manual in a safe place that it can be consulted whenever necessary.
- Page 4 01. SAFETY INSTRUCTIONS RESPONSABILITY September 2009. • Attach the permanent label for the manual release as close as possible • Supplier disclaims any liability if: to the release mechanism. • Product failure or deformation result from improper installation • Disconnect means, such as a switch or circuit breaker on the electrical use or maintenance! panel, must be provided on the product’s fixed power supply leads in •...
- Page 5 35mm 15,5 15,5 39,5 39,5 31,5 31,5 61,5 61,5 C (mm) C (mm) C (mm) C (mm) TUB10R TUB10R TUB140 TUB140 230Vac 50Hz 230Vac 50Hz 6 Nm 6 Nm 26 RPM 26 RPM <43 dB <43 dB 4 min. 4 min.
- Page 6 03. INSTALLATION 03. INSTALLATION PLACING THE MOTOR ON THE WALL LIMIT SWITCHES Before you start to tune the limit switches, confirm the orientation of your motor tuning arrows. This may have one or two possible orientations on the same motor: arrows going in or out. In any position, the adjustment A rotates the tube from the top to the bottom and the adjustment B rotates from the upwards.
- Page 7 04. ADDITIONAL INFORMATION 05. TUB FRA - PROGRAMMING DISASSEMBLING COMPACT ACCESSORY TECHNICAL SPECIFICATIONS Disassemble the motor from • Frequency Transmission 433,92 Mhz the compact mounting ac- • Nº of Channels cessory. Just open the tabs The control board MC4SP has as shown in the figure in •...
- Page 8 05. TUB FRA - PROGRAMMING 05. TUB FRA - PROGRAMMING PROGRAMMING PROGRAMMING WARNING: Always start any programming with control board disconnected from the power supply! Program a new remote control through another already programmed: Programming new remote control: 01 • Press and hold 02 •...
