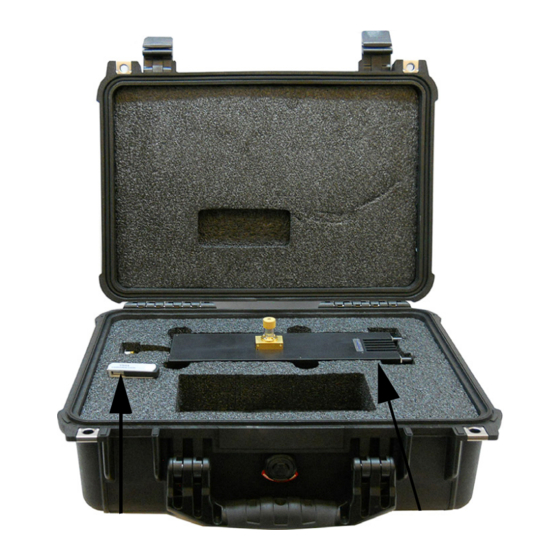

N5262BW/BT/BR/DRxx
Mini VNAX Frequency Extension Modules
The Keysight N5262BWxx Transceiver Modules (Tx/Rx), N5262BRxx Receiver Modules (Rx), N5262BTxx Transmitter
(TxRef) Modules, and N5262DRxx Dual Receiver Modules (RX) are manufactured by Virginia Diodes, Inc. (VDI).
These modules may be used with the Keysight N5222/24/25/27A/B PNA or N5242/44/45/47A/B PNA-X, or the
Keysight N5261/62A or N5292A Controller to configure a banded millimeter-wave network analyzer system.
PRODUCT NOTE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keysight N5262BW Series
Summary of Contents for Keysight N5262BW Series
- Page 1 (TxRef) Modules, and N5262DRxx Dual Receiver Modules (RX) are manufactured by Virginia Diodes, Inc. (VDI). These modules may be used with the Keysight N5222/24/25/27A/B PNA or N5242/44/45/47A/B PNA-X, or the Keysight N5261/62A or N5292A Controller to configure a banded millimeter-wave network analyzer system.
-
Page 2: Safety Notices
DOCUMENT OR ANY INFORMATION to the public to use, modify, CONTAINED HEREIN. SHOULD KEYSIGHT AND THE USER HAVE A reproduce, release, perform, SEPARATE WRITTEN AGREEMENT display, or disclose commercial WITH WARRANTY TERMS computer software or... - Page 3 Transmitter (TxRef) Modules, and N5262DRxx Dual Receiver Modules (RX) are manufactured by Virginia Diodes, Inc. (VDI). These modules may be used with the Keysight N5222/24/25/27A/B PNA or N5242/44/45/47A/B PNA-X, or the Keysight N5261/62A or N5292A Controller to configure a banded millimeter-wave network analyzer system.
-
Page 4: Option Information
Keysight Technologies N5262BW/BT/BR/DRxx Mini VNAX Frequency Extension Modules Option Information Refer to the section "Configuring a Module: Ordering a VDI VNAX Mini-Module, N526xBxx" on page 36 of the Keysight Technologies Banded Millimeter Wave Network Analysis Technical Overview at https://literature.cdn.keysight.com/litweb/pdf/5992-2177EN.pdf? id=2870369&cc=US&Ic=eng#page=36 RF/LO Input Power Options Option 120: Requires +10 dBm at the module input. - Page 5 Keysight Technologies N5262BW/BT/BR/DRxx Mini VNAX Frequency Extension Modules Table 1 TxRx Transceiver Mini Modules (STD) Keysight Extended Waveguide VDI Part Model Freq. (GHz) Flange Number N5262BW01-STD 750 to 1,100 VNAX-WR1.0TxRx-M WR1.0 N5262BW02-STD 330 to 500 WR2.2 VNAX-WR2.2TxRx-M N5262BW03-STD 220 to 330 WR3.4...
- Page 6 Keysight Technologies N5262BW/BT/BR/DRxx Mini VNAX Frequency Extension Modules Table 3 TxRef Transmitter Mini Modules (STD) Keysight Extended Waveguide VDI Part Model Freq. (GHz) Flange Number N5262BT02-STD 330 to 500 WR2.2 VNAX-WR2.2TxRef-M WR3.4 N5262BT03-STD 220 to 330 VNAX-WR3.4TxRef-M 140 to 220 WR5.1...
- Page 7 Keysight Technologies N5262BW/BT/BR/DRxx Mini VNAX Frequency Extension Modules Table 5 Rx Dual Receiver Mini Modules (STD) VDI Part Keysight Waveguide Extended Model Flange Freq. (GHz) Number 330 to 500 N5262DR02-STD WR2.2Rx-M-HS WR2.2 N5262DR03-STD 220 to 330 WR3.4Rx-M-HS WR3.4 N5262DR05-STD WR5.1Rx-M-HS WR5.1...
- Page 8 Keysight Technologies N5262BW/BT/BR/DRxx Mini VNAX Frequency Extension Modules Cable Sets If ordering a cable set separately, use model number to determine the appropriate set. Table 7 Available TxRx Cable Sets Keysight Cable Description Part Number Option CS-24-TxRx-1.2 1.2m cable set for 26.5 GHz PNA or PNA-X CS-24-TxRx-5 5m cable set for 26.5 GHz PNA or PNA-X...
-
Page 9: Serial Numbers
Keysight Technologies N5262BW/BT/BR/DRxx Mini VNAX Frequency Extension Modules Serial Numbers The product serial number is the OEM serial number VNAXxxxx (xxxx = numbers in the OEM serial number) assigned by Virginia Diodes, Inc. Refer to the label on the product for the serial number. - Page 10 RF and LO cable connected to the modules. For low power VDI modules that are directly connected to the Keysight PNA/ PNA-X with a 1.2m cable set, the VNA port power driving the RF and LO must be set to the nominal +2 dBm.
-
Page 11: Instrument Markings
This symbol is used to identify a terminal which is internally connected to the product frame or chassis. The CE mark is a registered trademark of the European Community. The Keysight email address is required by EU directives applicable to our product. ccr.keysight@keysight.com The CSA mark is a registered trademark of the CSA International. -
Page 12: Emc Compliance
• IEC/EN 61010-1 Acoustic Statement (European Machinery Directive) Acoustic noise emission LpA <70 dB Operator position Normal operation mode per ISO 7779 To find a current Declaration of Conformity for a specific Keysight product, go to: https://regulations.about.keysight.com/DoC/default.htm Keysight N5262BW/BT/BR/DRxx Product Note... -
Page 13: Keysight Support, Services, And Assistance
Keysight Technologies representative. Keysight Technologies provides warranty service, if a repair is needed. The product is serviced by VDI, which requires that the product be returned to VDI or Keysight. Contacting Keysight Assistance with test and measurement needs, and information on finding a local Keysight office are available on the Internet at: http://www.keysight.com/find/assist... - Page 14 This information is subject to change without notice. © Keysight Technologies 2017 - 2023 Print Date: May 2023 Supersedes: February 2022 www.keysight.com...
