Summary of Contents for DITEC NeoS

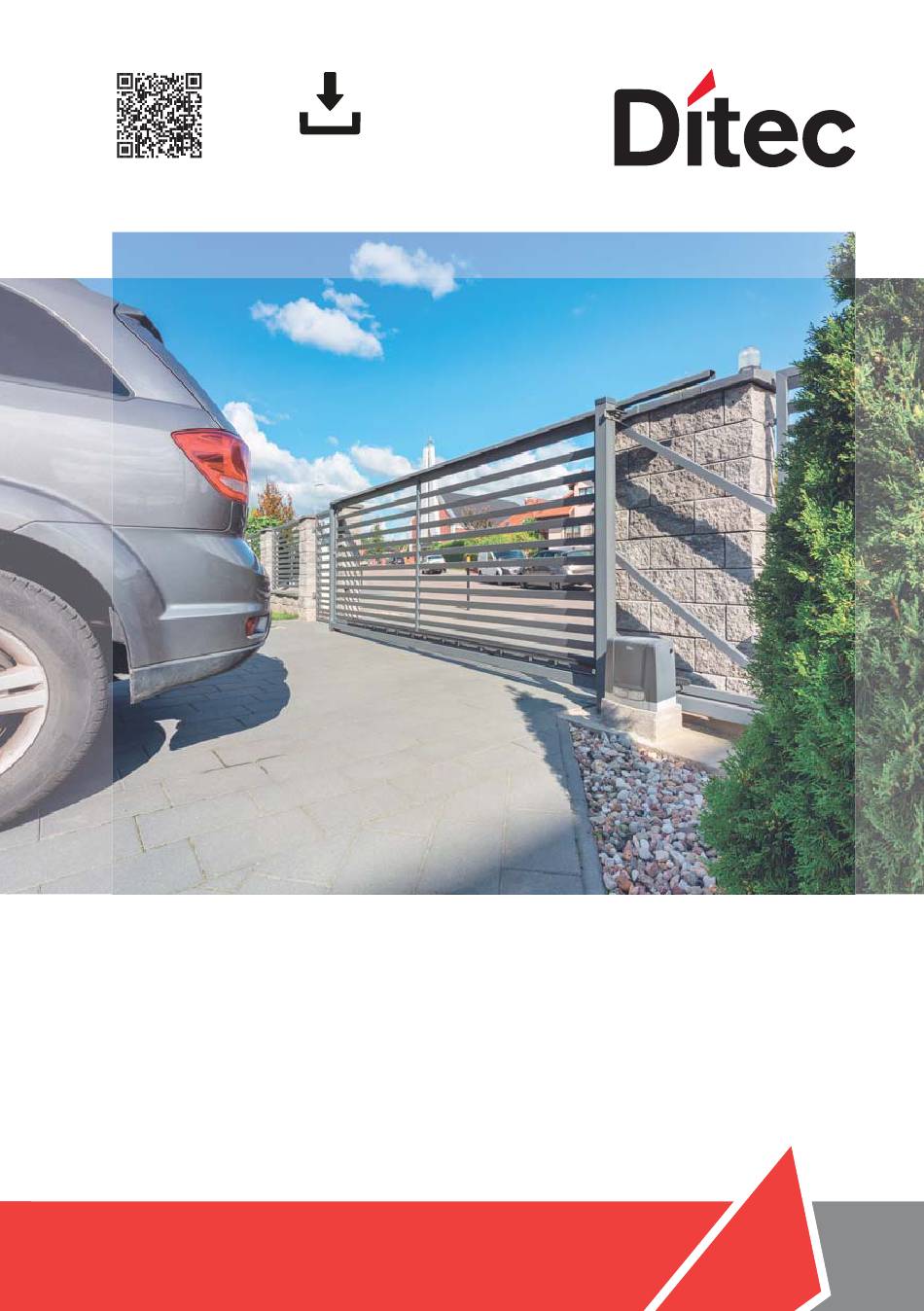

- Page 1 Last version of this manual IP2160EN•2023-06-07 Technical Manual Ditec NeoS / NeoS+ Sliding Gates (Translation of the original instructions) www.ditecautomations.com...
-
Page 2: Table Of Contents
Index General safety precautions ............................3 Declaration of incorporation of partly completed machinery ..................4 UK Declaration of Conformity ............................5 Technical specifications ........................... 6 Operating instructions ............................. 7 Machinery Directive ..............................7 Standard installation ............................8 Dimensions ..............................9 Main components ............................. -
Page 3: General Safety Precautions
General safety precautions ATTENTION! Important safety instructions.Please follow these instructions carefully. Failure to observe the information given in this manual may lead to severe personal injury or damage to the equipment.Keep these instructions for future reference. This manual and those for any accessories can be downloaded from www.ditecautomations.com This installation manual is intended for qualified personnel only •... -
Page 4: Declaration Of Incorporation Of Partly Completed Machinery
Sweden declare, under our sole responsibility, that the type of equipment with the name: Ditec NES400EH, NES600EH, NES1000EHSF Automation for sliding gates (CS12E) Ditec NES400EHP, NES600EHP, NES1000EHP Automation for sliding gates (CS12M) complies with the following directives and their amendments: 2006/42/EC Machinery Directive (MD), regarding the following essential health and safety require- ments: 1.1.2, 1.1.3, 1.2.1, 1.2.2, 1.2.3, 1.2.4.2, 1.2.6, 1.3.9, 1.4.3, 1.7.2, 1.7.3, 1.7.4, 1.7.4.1,... -
Page 5: Declaration Of Conformity
SE-261 44 Landskrona Sweden Declare under our sole responsibility that the types of equipment with names: Ditec NES400EH, NES600EH, NES1000EHSF Automation for sliding gates (CS12E) Ditec NES400EHP, NES600EHP, NES1000EHP Automation for sliding gates (CS12M) complies with the following directives and their amendments: •... -
Page 6: Technical Specifications
1. Technical specifications Ditec NES400EH Ditec NES400EHP Ditec NES400EHJ Power supply 230 V~ 50/60Hz 230 V~ 50/60Hz 120 V~ 50/60Hz Absorption 1,2 A 1,2 A 2,4 A Fuse Thrust 400 N 400 N 400 N Wing speed 0,1÷0,25 m/s 0,1÷0,25 m/s 0,1÷0,25 m/s... -
Page 7: Operating Instructions
Ditec NES1000EHP Ditec NES1000EHPJ Power supply 230 V~ 50/60Hz 120 V~ 50/60Hz Absorption Fuse F2,5 A F6,3A Thrust 1000 N 1000 N Wing speed 0,1÷0,19 m/s 0,1÷0,19 m/s Max stroke 20 m 20 m Max wing weight 1000 kg 1000 kg... -
Page 8: Standard Installation
4 x 0,5mm² Digital combination wireless keypad Photocells 4 x 0,5 mm² Actuator NEOS with control panel 3G x 1,5 mm² Safety edge 2 x 0,5 mm² Connect the power supply to a type-approved omnipolar switch, with a contact opening distance of at least 3mm (not supplied). -
Page 9: Dimensions
3. Dimensions 210 (NES 400) 220 (NES 600-1000) 170 (NES 400) 180 (NES 600-1000) 4. Main components Ref. Description Motor Control panel Diagnostic circuit Key release Pinion Battery kit Cable inlet Power supply terminal... -
Page 10: Installation
5. Installation The given operating and performance features can only be guaranteed with the use of DITEC ac- cessories and safety devices. Unless otherwise specified, all measurements are expressed in mm. 5.1 Preliminary checks Check the stability of the wing (derailing and lateral falls) and the sliding wheels and that the upper guides do not cause any friction. -
Page 11: Base Plate Position
5.2 Base plate position [1] Insert the anchor ties into the base plate and fix them with the supplied nuts. [2] Insert the screws in the base plate, secure them with the nuts and then bend the metal tab to prevent the screw from coming out. -
Page 12: Gearmotor Installation
5.3 Gearmotor installation -5 +20 M12-low type Release the gearmotor [1] (see OPERATING INSTRUCTIONS). Loosen the front screw [2] and remove the casing by pressing on its sides [3-4]. Place the gearmotor on the base plate. Adjust the gearmotor horizontally by sliding it along the slots of the gearmotor base and vertically with four levelling screws [A]. -
Page 13: Rack Installation
5.4 Rack installation Release the gearmotor (see OPERATING INSTRUCTIONS) and open the gate. Place the rack against the pinion and sliding the gate manually fix it along its whole length. NOTE: To make it easier to align the rods correctly, use a scrap piece of rack and rest it un- derneath the junction point, as shown in the figure detail. -
Page 14: Operation With Virtual Encoder
5.5 Operation with virtual encoder NEOS gearmotors do not require limit switches because they have a virtual encoder. Mechanical opening and closing end stops must be installed. The gate automatically slows when approaching the end stops. WARNING: when the gate reaches the opening or closing limit stop, it reverses briefly to facilitate manual release of the gearmotor. -
Page 15: Chain Drive Kit Installation
5.7 Chain drive kit installation NOTE: Install the chain drive kit before securing the gearmotor to the base plate. Release the gearmotor (see OPERATING INSTRUCTIONS). [1] Remove pinion [12]. [2] Fix pinion supporting plate [A] to the gearmotor. Insert pinions [B] as illustrated in the diagram. [3] Pass the chain between the pinions by hand. - Page 16 NOTE: Make sure that the distance between the pinion centre and tie rod [F] is correct when the gate is fully open and closed. Secure the chain with nuts [G]. Tighten the chain [E] with the tie rods [F]. Slightly lubricate the chain [E] and the pinions after assembly. WARNING: when the chain traction kit is fitted, the gearmotor drive direction is inverted.
-
Page 17: Electrical Connections
6. Electrical connections NOTE: the electrical wiring and start-up of the gearmotors is shown in the CS12E and CS12M control panel installation manuals. Tie not supplied Fascetta non di nostra fornitura Make sure that the yellow-green Assicurarsi che il conduttore conductor is at least 30 mm longer giallo verde sia almeno 30 mm più... -
Page 18: Installation Of Internal Photocell
6.1 Installation of internal photocell OPENING LIN2 Additional photocells can be installed inside the gearmotor casing of Ditec NEOS, to protect both opening and closing movements by using the LIN2 photocell. Fit a receiver (RX) or a transmitter (TX) as shown in the figure. -
Page 19: Troubleshooting / Alarms
8. Troubleshooting / alarms Problem Possible cause No power. Short-circuited accessories. Contact Technical Service. Blown line fuse. Contact Technical Service. Release door microswitch open Check the position of the key. Close the release door if it’s open. The gate doesn’t open or close Contact Technical Service. - Page 20 All the rights concerning this material are the exclusive property of ASSA ABLOY Entrance Systems AB. Although the contents of this publication have been drawn up with the greatest care, ASSA ABLOY Entrance Systems AB cannot be held responsible in any way for any damage caused by mistakes or omissions in this publication. We reserve the right to make changes without prior notice.
