Summary of Contents for Genius COMPAS

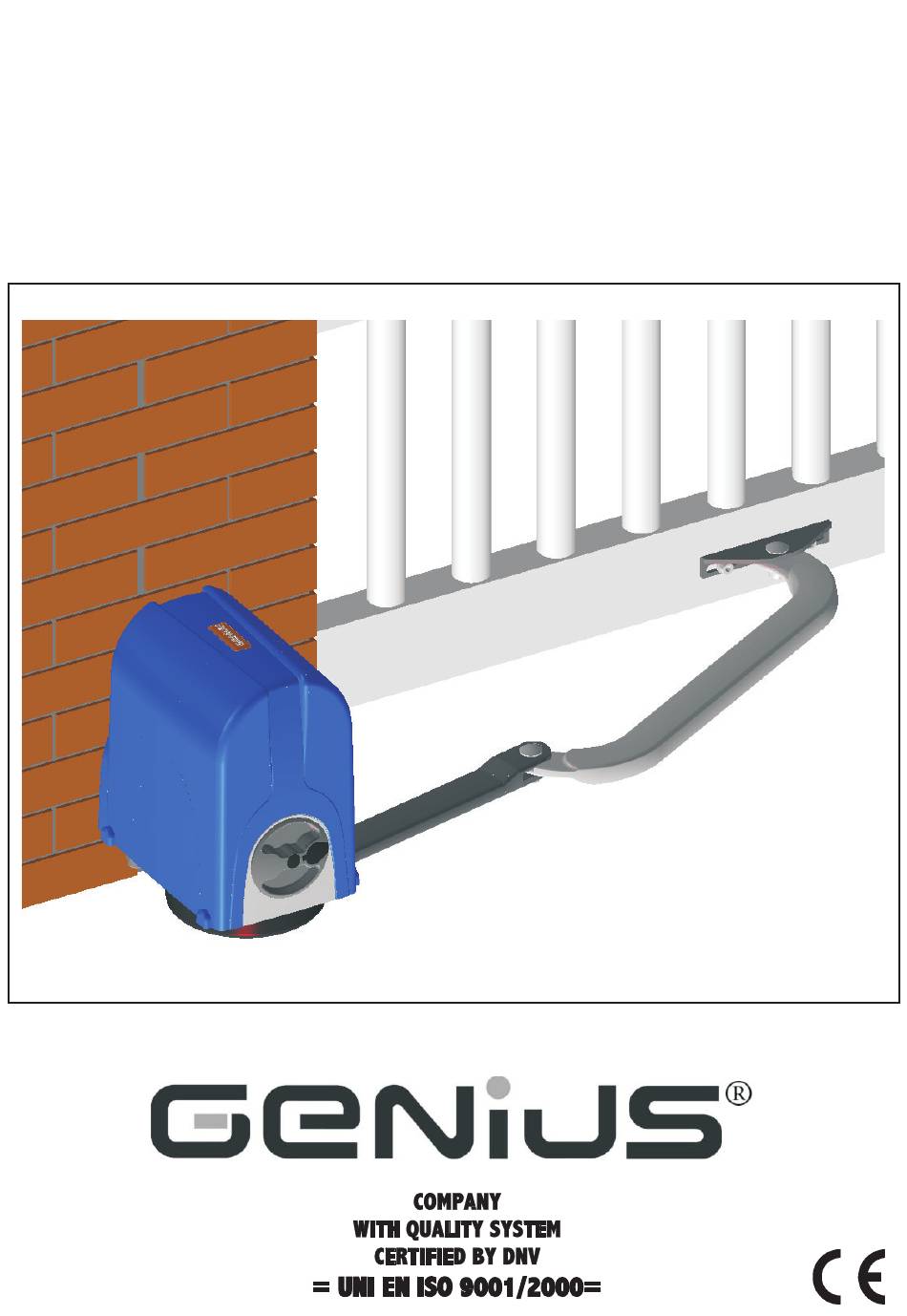

  • Page 1 COMPAS COMPAS...
  • Page 2 24) The application cannot be used by children, by people with reduced physical, mental, 6) GENIUS declines all liability caused by improper use or use other than that for which the sensorial capacity, or by people without experience or the necessary training.

  • Page 3: Ce Declaration Of Conformity For Machines

    Via Padre Elzi, 32 - 24050 - Grassobbio BERGAMO - ITALY Declares that: Operator mod. COMPAS 24 - COMPAS 24 C powered on 230Vac • is built to be integrated into a machine or to be assembled with other machinery to create a machine under the provisions of Directive 98/37/EC;...

  • Page 4: Technical Specifications

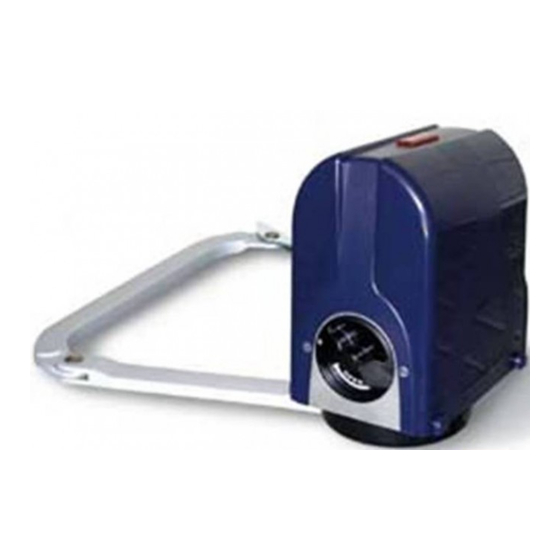

    COMPAS AUTOMATED SYSTEM The COMPAS automated system consists of a non-reversing 2. TECHNICAL SPECIFICATIONS electro-mechanical operator available in two versions: • COMPAS 24C with built-in control unit • COMPAS 24 without control unit The operator was designed for automating the opening of gates with one or two leaves, with maximum length of 2.5m.

  • Page 5: Electrical Connections

    4. ELECTRICAL CONNECTIONS “X” is less than 500mm, run an impact test on the point indicated in Fig.4, as described in UNI EN12445 standard, and make sure that the measured values • The lay-out below refers to an installation with two conform to the specifications of UNI EN 12453 standard.
  • Page 6 Establish the height of the Secure the bracket in the established position using two M8 operator, bearing in mind that: screws. • the securing bracket of the curved arm must be in a zone where it can be secured to the gate leaf (Fig.7) •...

  • Page 7: Manual Mode Operation

    7. MANUAL MODE OPERATION 5.5. POSITIONING THE MECHANICAL STOPS The COMPAS operator is supplied standard with opening and closing mechanical stops. This is to facilitate the installation If the operator has to be manually activated due to a power operations because there is no need to construct the mechanical cut or to an operator fault, proceed as follows: stop elements.
  • Page 8 9) GENIUS is niet aansprakelijk als de regels der goede techniek niet in acht genomen zijn HINWEISE FÜR DEN INSTALLATIONSTECHNIKER bij de bouw van het sluitwerk dat gemotoriseerd moet worden, noch voor vervormingen die zouden kunnen ontstaan bij het gebruik.
  • Page 9 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. GENIUS se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...

This manual is also suitable for:

Compas 24 cCompas 24
