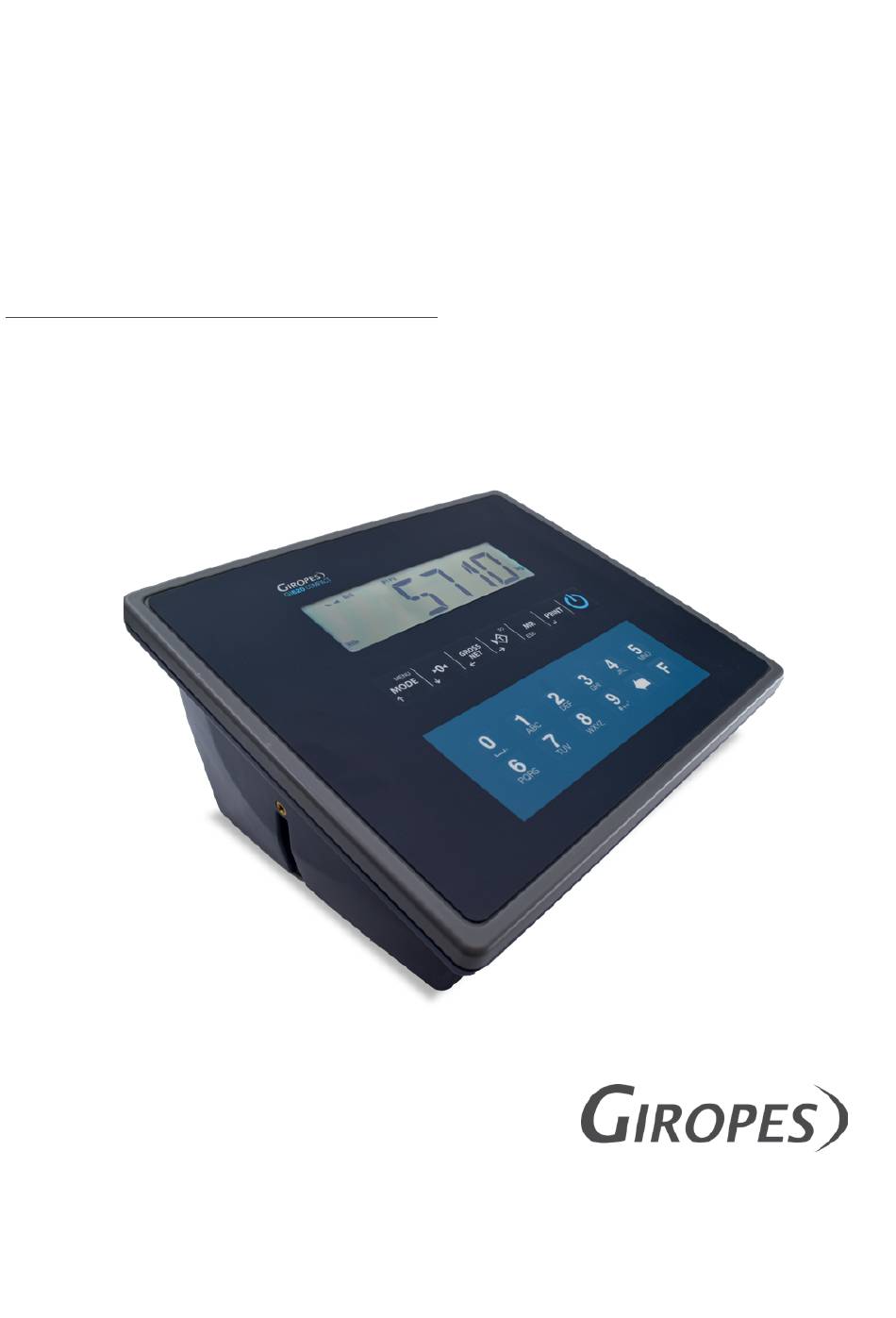

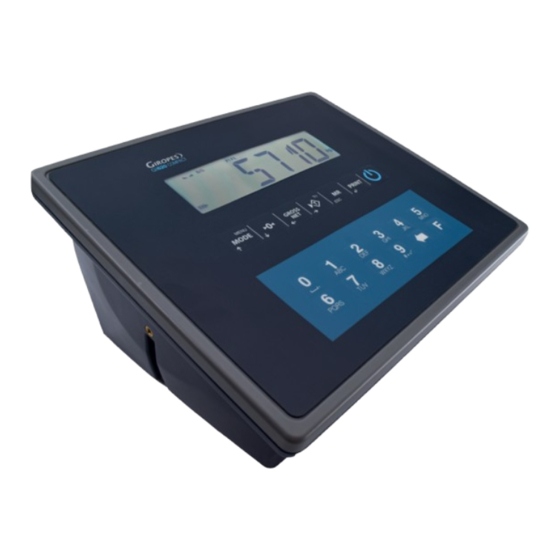

GI620 COMPACT
USER MANUAL
EN
INDICATOR WITH FUNCTION
AXLE WEIGHING
V.1
22/06/2023
The manufacturer reserves the right to modify the characteristics of its products without prior notice to introduce technical improvements or comply with
new official regulations.
Pol. Empordà Internacional C/ Molló 3
17469 VILAMALLA - (Girona) SPAIN
T. (34) 972 527 212
Advertisement
Table of Contents
Related Manuals for Giropes GI620 COMPACT
Summary of Contents for Giropes GI620 COMPACT
- Page 1 GI620 COMPACT USER MANUAL INDICATOR WITH FUNCTION AXLE WEIGHING 22/06/2023 Pol. Empordà Internacional C/ Molló 3 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212 The manufacturer reserves the right to modify the characteristics of its products without prior notice to introduce technical improvements or comply with...
- Page 2 USER MANUAL GI620 COMPACT INDEX 1. INTRODUCTION 1.1 DISPLAY LCD 1.2 PLATFORM MANAGEMENT 1.3 FILE MANAGEMENT 1.4 WEIGHT MANAGEMENT 1.5 FUNCTIONS 1.6 PRINTER 1.7 PC MANAGEMENT 1.8 TICKET FORMAT 1.9 BATTERY POWER 2. GENERAL CHARACTERISTICS 2.1 DIMENSIONS 3. DISPLAY SYMBOLS 4.
- Page 3 USER MANUAL GI620 COMPACT 1. INTRODUCTION -This version of the device is designed to work with a maximum of 2 channels. -Place the platforms on a completely flat and level surface. and leave them well aligned. -The platforms should be mounted with mats for a better leveling and to avoid vibrations. In the case of having the platforms embedded in the ground, mats will not be necessary.
-
Page 4: General Characteristics
USER MANUAL GI620 COMPACT 1.8 TICKET FORMAT It is possible to modify and select the printed fields related to the Weighing tickets using the GiManager software 1.9 BATTERY POWER The device has an optional internal battery that allows operation also during a drop in mains power. Batterylife (fully charged) is approx. - Page 5 USER MANUAL GI620 COMPACT 2.1 DIMENSIONS...
-
Page 6: Display Symbols
USER MANUAL GI620 COMPACT 3. DISPLAY SYMBOLS The LCD display has various symbols that indicates the operating status of the indicator. The function of each symbol is described below. NUMBER SYMBOL FUNCTION Is showing the weighing range Indicates that the weight detected is within the range of zero calibration, inclu- ded in the range –5% FS and +15 FS. - Page 7 USER MANUAL GI620 COMPACT Indicates the channel or channels in use. Indicates the record or records in use. Indicates that a memorized tare has been activated, previously stored in the database (F50). (only in the version with tara) Not used...
-
Page 8: Keys Function
USER MANUAL GI620 COMPACT 4. KEYS FUNCTION KEYBOARD DESCRIPTION OF THE EXECUTABLE FUNCTION GI620 Power key: Turn the indicator on and off Short press: access to the user menu Long press: Access to the technical menu In the edit menus:... - Page 9 USER MANUAL GI620 COMPACT In the edit menus: In the numeric menus, directly enter the digit represented on the key. In alphanumeric menus, the letters or symbols described. Pressing change from letter to number and vice versa. The left arrow serves to delete one by one the last digit in editing.
-
Page 10: Basic Configurations
USER MANUAL GI620 COMPACT It is also possible to access functions directly by pressing the number keys on the keyboard. Switch to static mode and displays the sum of the active channels. By Default channel 1+2 Switches to static mode and displays channel 1... - Page 11 USER MANUAL GI620 COMPACT 5.4 USER MENU Being in the weighing screen, press the key once, to access to the user menu. Use the arrow keys as well as to move through, as well to access and exit the menus.
- Page 12 COM1 - number of bytes / parity / stop bits / baudrate / Protocol / Sending mode. COM2 - not available .COM3 - not available The available protocols are: Giropes, Sipi 2, ALIBI, Sensocar, Printer, Giconf PRINTER - Adjustment of the printersettings of the COM ports PRCOM1 - COM1 Settings...
- Page 13 USER MANUAL GI620 COMPACT DATE - Setting of the system date. TIME - Setting of the system time. REG. C NF LANGGE - Setting of the system language (including the printouts): Spanish / English / French/Portuguese / Italian / German / Basque / Catalan / Galician.
-
Page 14: Basic Functions
USER MANUAL GI620 COMPACT 6. BASIC FUNCTIONS The functions described below are those performed during the operation of the device, in normal weighing window. 6.1 ZEROING THE SCALE once and the 5EL PTmenu will appear. Select the desired The first step is to select the desired channel. To do this, press the key platform with the arrow keys. - Page 15 USER MANUAL GI620 COMPACT 6.5 CANCELLATION OF THE ACTIVE TARE (ONLY IN TARE_VERSION) To deactive the curent tare, press for approx. 2s 6.6 DISABLE THE TARE KEY (ONLY IN TARE_VERSION) It is possible, for convenience, to disable the function of the tare key. To deactivate the tare key, see the Technical manual.
- Page 16 USER MANUAL GI620 COMPACT 7.2 WEIGHING WITH AXLE TOTALIZATION AUTOMATIC F97 PRESS F+9+7 TO ACTIVATE THE AUTOMATIC AXLE-WEIGHT WORKING MODE First the device will ask, to work with both platforms P1 and P2 or only with one of the two platforms.
- Page 17 USER MANUAL GI620 COMPACT 8. DYNAMIC AXLE-WEIGHT: F98 This operation mode uses a single channel of the GI620 either connecting 1 platform on channel 3 or on channel 4, or with 2 platforms acting together connected on channels 3 and 4. In any case, the active channel remains P3. The channel 4 connector does not act as a separate channel, it act as another channel 3 connector.
- Page 18 USER MANUAL GI620 COMPACT 9. PRINTOUT 9.1 TOTALIZATION In static mode, during the accumulation, each detected axle is printed, on the contrary in dynamic mode nothing is printed until it is totalized. In any case, once the totalization is done, the ticket is closed and a new accumulation can be started.
- Page 19 USER MANUAL GI620 COMPACT 9.2 PRINTING THE TOTALS In the weighing window, press the key , once, to access the user menu. Use the arrow keys to move, access and leave the menus The LI5T5 menu includes the Totals-list Accessing this option, prints the list of stored totalweights. In this menu it is to choose, delete or not delete the memory after printing the list...
- Page 20 USER MANUAL GI620 COMPACT Request Description Display the Number of Axles 0 -> « Label » « Axis number » Format 1 -> « Axis number » 2 -> « Number of axes» « Label » 3 -> « Label »...
- Page 21 USER MANUAL GI620 COMPACT Request Description Display the Platform (Channel) name Format 0 -> « Label Channel 1» 1 -> « Label Channel 2 » 2 -> « Label Channel 3 » Example [PLT,0] Request Description Display the information of Database 0 ->...
- Page 22 USER MANUAL GI620 COMPACT Request Description Allows the entry of the character vertical tab (0x0B) Example “FOO<VT>BAR” Equal to “FOO\x0BBAR” Request Description Allows the entry of the character ‘\f’ (form feed) Example “FOO<FF>BAR” Equal to “FOO\fBAR” Request Description Allows the entry of the character ‘\r’ (carriage return) Example “FOO<CR>BAR”...
- Page 23 USER MANUAL GI620 COMPACT Request Description Restores normal typology size Example “<H3>” Request [SIG] Description Type of Signature [SIG1] User Signature [SIG2] Driver´s Signature 11. BY10 DATA VISUALIZER 11.1 X10 DATA VISUALIZER In the weighing window, press the key , once, to access the user menu. Use the arrow keys to move, access and leave the menus Move to the BY 10 option and access it.
-
Page 24: Error Messages
USER MANUAL GI620 COMPACT 12. ERROR MESSAGES During operation, the terminal verifies that there are no programming errors, which are notified to the user through messages displayed on the display. Error UL When the weight is less than the minimum weight and we are viewing a channel, the equipment will display the UL message on the screen. -
Page 25: Cell Connector
USER MANUAL GI620 COMPACT 13. CELL CONNECTOR The cable that comes from the transducers / s is connected by welding, it is recommended to be very careful with the quality of this and the insulation between the conductors and the use of a good tin alloy since a product of poor quality or not suitable could harm the proper functioning of the instrument. - Page 26 USER MANUAL GI620 COMPACT...
- Page 27 USER MANUAL GI620 COMPACT...
- Page 28 USER MANUAL GI620 COMPACT Pol. Empordà Internacional C/ Molló 3 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212...
