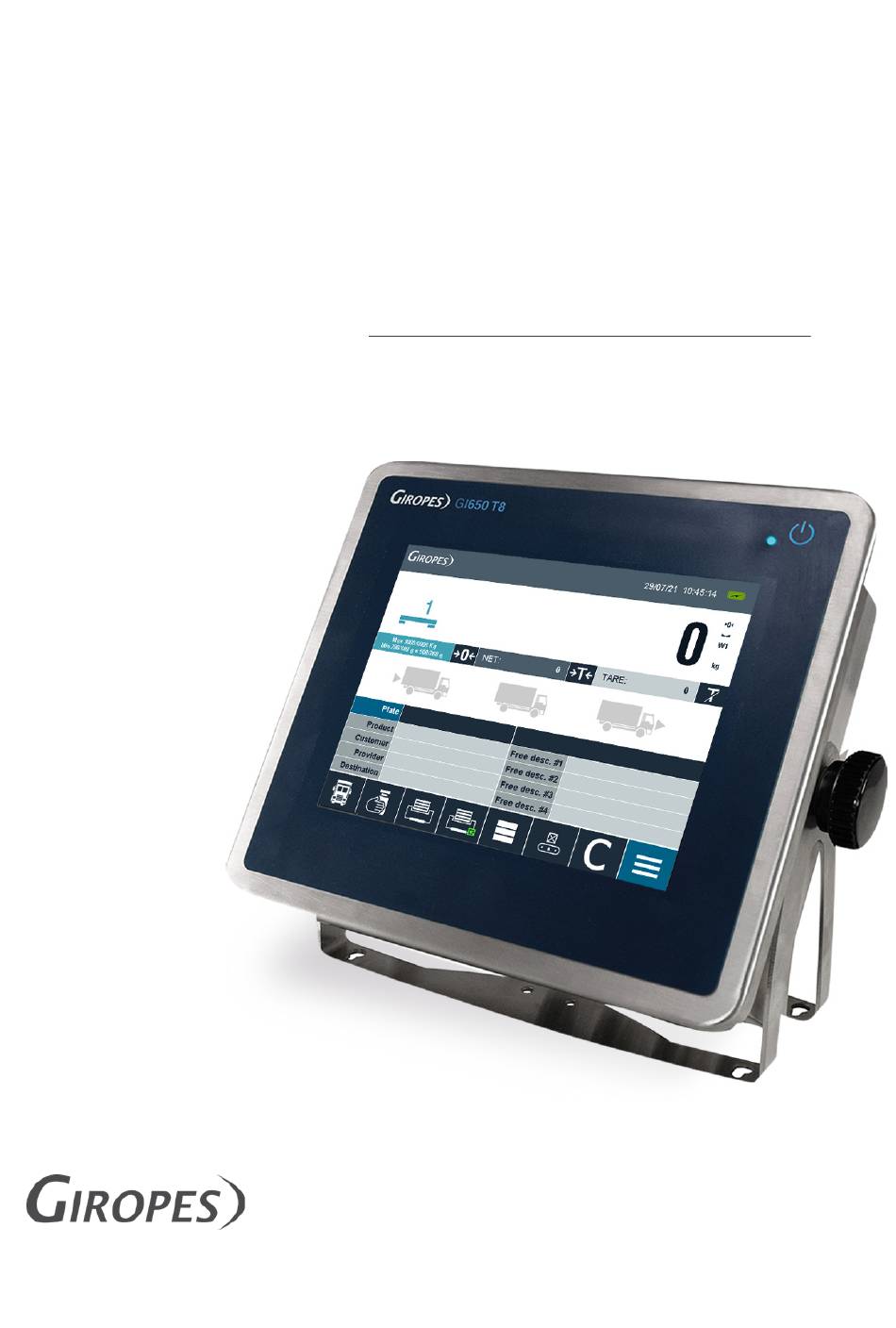

GI650
WEIGHBRIDGE
EN
USER MANUAL
V.1.4_03/05/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI650 and is the answer not in the manual?

Questions and answers

Related Manuals for Giropes GI650

Summary of Contents for Giropes GI650

  • Page 1 GI650 WEIGHBRIDGE USER MANUAL V.1.4_03/05/2022 Pol. Empordà Internacional C/Molló 3 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212 El fabricante se reserva el derecho de modificar sin previo aviso las características de sus productos para introducir mejoras técnicas o cumplir con nuevas regulaciones oficiales./Le constructeur se réserve le droit de modifier les caractéristiques de ses produits en vue d’y apporter des améliorations techniques...
  • Page 2 USER MANUAL GI650 EN...

  • Page 3: Table Of Contents

    USER MANUAL GI650 EN 1. INTRODUCTION 1.1 CHARACTERISTICS CONNECTION OF THE LOAD CELL OPERATION INTERFACE SERIAL COMMUNICATION POWER SUPPLY OPERATING CONDITIONS AND MECHANICAL DATA 1.2 GENERAL FUNCTIONAL CHARACTERISTICS 1.3 DIMENSIONS 1.4 DISPLAY 1.5 KEYS AND FUNCTIONS MAIN-DISPLAY KEYBOARD-DISPLAY NUMERIC-DISPLAY 1.6 FUNCTIONS WHEN STARTING THE INDICATOR 2.

  • Page 4: User Manual Gi650 En En

    USER MANUAL GI650 1. INTRODUCTION Dear User, the performance that the equipment you have acquired will offer you, will be all the greater the more attention you devote to the instructions for use included in this manual. Please break our traditional apathy towards the manuals and do not wait for “everything goes wrong” for a consultant, so you can enjoy optimal benefits from the execution of the first weight.

  • Page 5: Operating Conditions And Mechanical Data

    It is possible to store and manage Tara-values in the Manage the Printer It is possible to work with 2 printer/labeler on the GI650. You can also free configure the printouts and on which printer, which information is printed. Software...

  • Page 6: Dimensions

    USER MANUAL GI650 1.3 DIMENSIONS BENCH TOP ON WALL Diseñado: Revisado: Validado: Fecha: Unidades del plano: Número SAP: 13/05/2019 GI450T8 Propiedad: Tamaño del papel: Vista general Escala: Pedido n Giropès S.L. Pol. Empordà Internacional. Calle Molló. Parcela 15-16. Página: 17469 Vilamalla (Girona).

  • Page 7: Display

    USER MANUAL GI650 1.4 DISPLAY Number Function Platform-number and Configuration Date Time Charging-indicator Zero-indicator Stable-indicator Weight-range Gross-weight Net-weight Tare-weight Truck - status Categories Command-Keys...

  • Page 8: Keys And Functions

    USER MANUAL GI650 1.5 KEYS AND FUNCTIONS It is possible to choose between 3 different Keyboards: QWERTZ, QWERTY and AZERTY To change the Keyboard you have to access to the Main-menu by press Choose the Menu point “General” and change the settings.

  • Page 9: Keyboard-Display

    USER MANUAL GI650 KEYBOARD-DISPLAY: Function Exit the Keyboard Clear all letters Delete the last letter Save the changes Change to the special characters Arrow Keys NUMERIC-KEYBOARD: Function Exit the Keyboard Clear all numbers Delete the last number Save the change...

  • Page 10: Functions When Starting The Indicator

    USER MANUAL GI650 1.6 FUNCTIONS WHEN STARTING THE INDICATOR To turn on the indicator press the key The Display turns on, showing the Firmware-, Bootloader- and Weight model-version, also the CRC-value and the number of Calibrations during the initialization. After finishing the initialization, the indicator is performing the initial zero.

  • Page 11: Tare

    MEMORIZED TARE It is possible to store a Tare-value in the Plates (will be explained in point 3.2) CHECKWEIGHER The GI650 is equipped with a Checkweigher function. The different areas are displayed in different Colours. High Alarm You can set the value in the menu. At first you have to access to the main-menu by pressing .

  • Page 12: Net Weight Using 2 Weighings

    USER MANUAL GI650 NET WEIGHT USING 2 WEIGHINGS Before you can do the 1st weighing, you always have to manually input a Plate (and also all the other information if needed). After this you can place the Truck on the Weighbridge, please note that the weight have to be higher than the minimum-weight.

  • Page 13: Net Weight Using 1 Weighing

    USER MANUAL GI650 Select the Plate In Transit for which you want to perform the 2nd weight and validate. In the weight-window the Plate is loading and you can perform the second weight pressing NET WEIGHT USING 1 WEIGHING Whenever you want to perform a weighing with Tara-function it is an Unique Weight.
  • Page 14 USER MANUAL GI650 Now press the Button , input the Tare-value and validate. The weight is changed to Unique Weight now, also the Net-indicator turn on and the Tare-value will be displayed, now you can place the truck and perform the weiging pressing...

  • Page 15: Menu Structure

    USER MANUAL GI650 3. MENU STRUCTURE MENU Baudrate COM 1 Number of bits Parity Stop bits Communications Protocol Trigger type Interval time Security User password Baudrate COM 2 Default parameters Number of bits Parity Stop bits Protocol Database initialization Database...

  • Page 16: Menu

    7; 8 RS-232 Parity None; Even; Odd 1; 2 Stop bits None; Giropes; Sipi 2; Alibi; Sensocar; Printer; GiConf2; Smart; Bilancai; Protocol A+; Bizerba; Epel; Eric; Mettler; SB400; Soehnle; PT6S3 Sending mode No trigger; Weight trigger; Continuous Interval time Freely Configurable (ms) 300;...

  • Page 17: Security

    USER MANUAL GI650 SECURITY Inside the menu are 2 sub-menus: User Password and Default parameters • User Password: Inside here you can change the Password for. The saved menus. • Default parameters: It is restoring to Factory settings, except the Database, Ticket-number and the weighing parameters.

  • Page 18: Functionality

    USER MANUAL GI650 FUNCTIONALITY In the functionality menu you have access to following working configurations: Tare-setting and the Checkweigher-settings. You can decide to work with a blocked or unblocked Tare (By default this option is unblocked) • You can modify the Checkweigher-settings (Explained in point 2) PRINTERS Here you have access to the general ticket configuration and also to the detailed configuration of each Com Port.

  • Page 19: Additional

    USER MANUAL GI650 • Custon Tickets It is possible to customize the ticket formats, explained in point 9. ADDITIONAL Inside this menu you can check and delete the stored Alibi-weighings. (when Alibi-Memory is plugged) PLEASE NOTE: Erase the Alibi-Memory is only working with Cal_open...
  • Page 20 USER MANUAL GI650 • Cal_close: You only have access to the Sub-menu Legally relevant data. Inside this Menu are different Software-information about the device. • Cal_open: You have access to all Sub-menus included the Calibration Scale configuration: Inside this menu, you will find all the calibration settings and metrological settings. (explained in the next point) Legally relevant data: Inside this menu you can find all legally relevant data, such as WM-version, Events, Errors and Updates.

  • Page 21: Calibration And Metrology

    USER MANUAL GI650 CALIBRATION AND METROLOGY PLEASE NOTE: For access to this menu you need to remove the jumper of the Calibration-switch For be able to do this, you have to open the case of the device. Once you did this, you have to remove the sealed Cover from the Jumper.
  • Page 22 USER MANUAL GI650 To access to the metrological Part you have to access to the Main-menu and choose the menu Weighing. A password is required to access this menu, by Default 0000. Inside the menu, choose Scale configuration. Here you will find 4 Sub-menus: Calibration parameters;...

  • Page 23: Diagnostic

    USER MANUAL GI650 • Teoric calibration: If the reference weight is not available, you can perform a theoretical calibration by using the capacity and sensiti- vity values (mV/V) of the load cells used. DIAGNOSTIC Inside this menu you can see the mV of the Load cell and also the internal Counts. In case of an error of the scale you can check here if the Load cell is working properly.
  • Page 24 USER MANUAL GI650 Database initialization; Database configuration; Database tables and Import / Export • Database initialization : In this point, you can modify and configure the different tables of the indicator. You also can modify the names of all tables. The Indicator has 5 freely configurable Tables with a total of 1900 registers, and additionally 4 Free Descriptions that can be used for each weight.(not...
  • Page 25 USER MANUAL GI650 Here you can check and modify the different Database-tables and Weight-tables. If you want to input a new file, you must do it like in the following example. At first you have to access to the Main-menu by press Choose the Menu-point “Database”...
  • Page 26 USER MANUAL GI650 After you press Add, the Plate appear in the list To modify or delete a Plate in the list you have to press the following button: (Modify Red, Delete Green) After you input the Plate in the List, you can choose the and activate the Plate in 2 Ways.
  • Page 27 USER MANUAL GI650 And also you can press the field Plate to open the List of stored Plates. Select the Plate you want to use and validate. • Import / Export: It is possible to import and export information via USB to a PC.

  • Page 28: Error Messages

    USER MANUAL GI650 4. ERROR MESSAGES The device shows various error messages in the screen: Error message Explication Overload, remove the weight above the platform. If it is empty and --ol-- continues to display, check the platform and wiring The current weight value is less than the calibration zero. Check platform...
  • Page 29 USER MANUAL GI650 Request TIC Description Ticket number Minimal arguments Maximal arguments 1- Format 0 -> « Label » « Ticket » 1 -> « Ticket » 2- Length Length of the field “Ticket” (always 0) 3- Alignment Alignment of the field “Ticket” (R, L, C, J)
  • Page 30 USER MANUAL GI650 Request Description Way of the weighing: "input" or "output" Minimal arguments Maximal arguments 1- Format 0 -> « Label » « Way » 1 -> « Way » 2- Length Length of the field “Way” (always 0) 3- Alignment Alignment of the field “Weigh”...
  • Page 31 USER MANUAL GI650 EN Request Description Texts to be translated Minimal arguments Maximal arguments 0 -> List 1- Format 1 -> Code 2 -> Description 3 -> Gross 4 -> Tare 5 -> Net 6 -> Unique weight 7 -> First weight 8 ->...
  • Page 32 USER MANUAL GI650 EN Request Description Allows the entry of the character ‘\t’ (horitzontal tab) Example “FOO<HT>BAR” Equal to “FOO\tBAR” Request Description Allows the entry of the character ‘\n’ (line feed) Example “FOO<LF>BAR” Equal to “FOO\nBAR” Request Description Allows the entry of the character vertical tab (0x0B) Example “FOO<VT>BAR”...
  • Page 33 USER MANUAL GI650 EN Request Description Allows repetition of a character n times Minimal arguments Maximal arguments 1- Character Character to repeat 2- Number of repetitions Number of repetitions of the desired character Example <R, ,0> Request Description Double width and height typology Example “<H1>DATA”...

  • Page 34: Connections

    USER MANUAL GI650 6. CONNECTIONS COM1 COM2 LOAD CELLS LOADCELL CONNECTION COM-PORT CONNECTION...

  • Page 35: Dsd-Memory

    USER MANUAL GI650 7. DSD-MEMORY It is possible to increase the Memory of the weight indicator with the additional plate that performs the function of FISCAL MEMORY; this consists in archiving all the weight values transmitted to a computer for a subsequent elaboration or integration of the data transmitted by the serial channel COM / ETHERNET Each archived value is associated with an ID code.

  • Page 36: Annex

    USER MANUAL GI650 10. ANNEX FUNCIÓN DE LOS PIN CELULA DE CARGA FUNCTION OF PINS OF THE LOADCELL n.º pin n.º pin Descripción Función Descripción Función n.º pin Description Function n.º pin Description Function -EXC Excitación - +SENSE SENSE con signo +...
