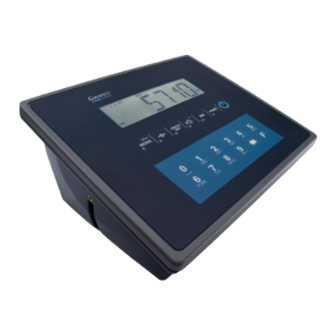

Giropes GI620 COMPACT User Manual

Industrial weighing indicator with wheel-weighing function
Hide thumbs Also See for GI620 COMPACT:
Table of Contents

Advertisement

Quick Links

Download this manual

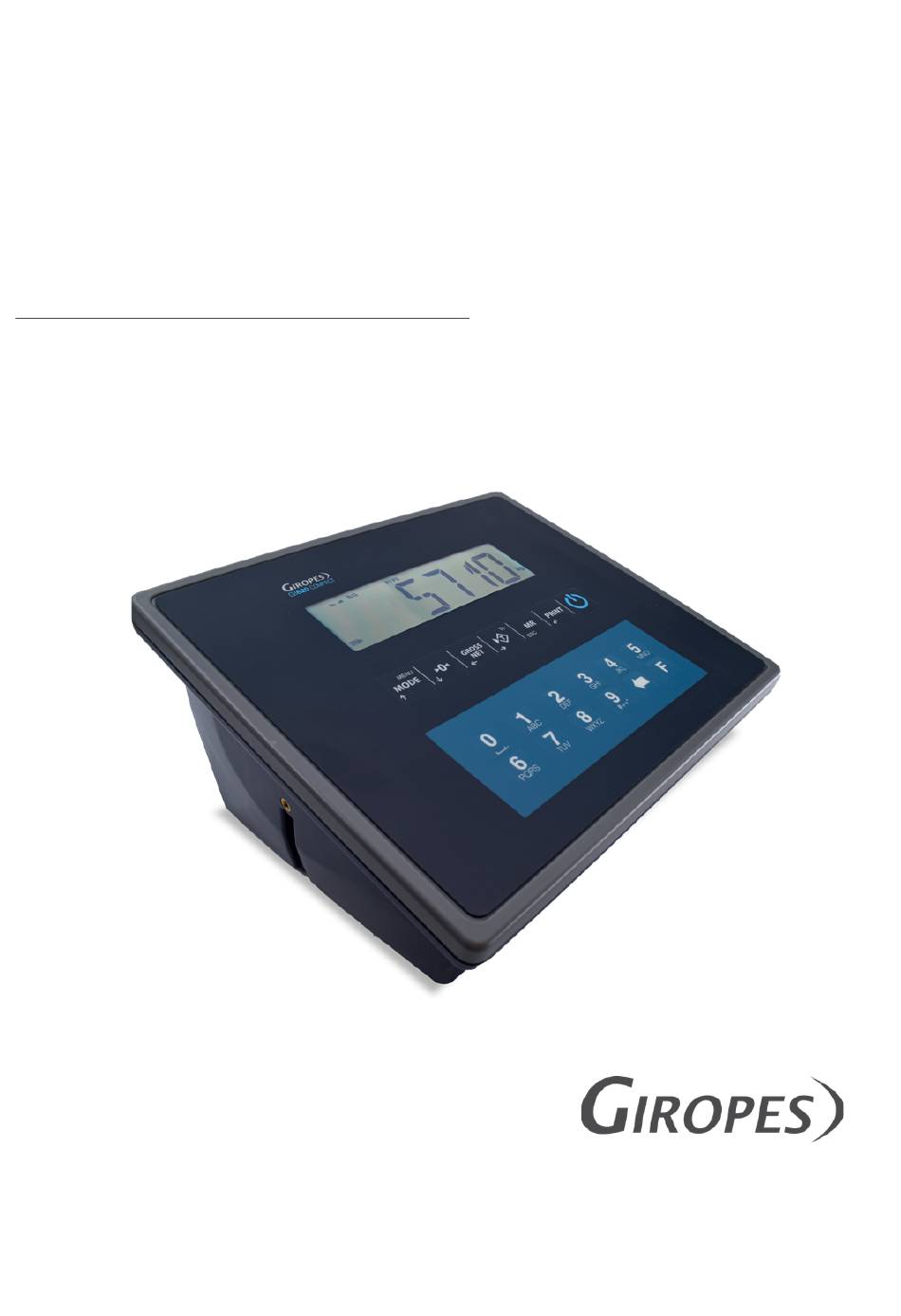

GI620 COMPACT
USER MANUAL
EN
INDUSTRIAL WEIGHING
INDICATOR WITH WHEEL-WEIGHING FUNCTION
V.1
05/07/2023
The manufacturer reserves the right to modify the specifications of its products in order to make technical improvements or comply with new regulations.
Pol. Empordà Internacional C/ Molló 3
17469 VILAMALLA - (Girona) SPAIN
T. (34) 972 527 212

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI620 COMPACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Giropes GI620 COMPACT

Summary of Contents for Giropes GI620 COMPACT

  • Page 1 GI620 COMPACT USER MANUAL INDUSTRIAL WEIGHING INDICATOR WITH WHEEL-WEIGHING FUNCTION 05/07/2023 Pol. Empordà Internacional C/ Molló 3 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212 The manufacturer reserves the right to modify the specifications of its products in order to make technical improvements or comply with new regulations.
  • Page 2 USER MANUAL GI620 COMPACT...
  • Page 3 USER MANUAL GI620 COMPACT INDEX 1. INTRODUCTION 1.1 DISPLAY 1.2 PLATFORM MANAGEMENT 1.3 FILE MANAGEMENT 1.4 WEIGHT MANAGEMENT 1.5 FUNCTIONS 1.6 PRINTERS 1.7 PC MANAGEMENT 1.8 TICKET FORMAT 1.9 OPTIONAL BATTERY POWER 2. GENERAL CHARACTERISTICS 3. DISPLAY SYMBOLS 4. KEYS FUNCTION 5.
  • Page 4 USER MANUAL GI620 COMPACT...
  • Page 5 USER MANUAL GI620 COMPACT 1. INTRODUCTION • This device is designed to work with a number of platforms, equal to the number of wheels/ support points of the vehicle to be weighed. • Place the platforms on a completely flat and level surface.

  • Page 6: General Characteristics

    USER MANUAL GI620 COMPACT 2. GENERAL CHARACTERISTICS 110-240V AC 50/60Hz POWER SUPPLY or with internal rechargeable lithium-ion battery optional OPERATING TEMPERATURE -10°C to +40°C DISPLAY LCD DISPLAY of 6 digits, h 27mm. and 14 segments SIGNALS Multiple on-screen status indicators KEYBOARD ALPHANUMERIC WATERPROOF KEYBOARD with 12 keys and 7 operation keys.
  • Page 7 USER MANUAL GI620 COMPACT DIMENSIONS...

  • Page 8: Display Symbols

    USER MANUAL GI620 COMPACT 3. DISPLAY SYMBOLS The LCD display has various symbols that indicates the operating status of the indicator. The function of each symbol is described below. NUMBER SYMBOL FUNCTION Is showing the weighing range Indicates that the weight detected is within the range of zero calibration, includ- ed in the range –5% FS and +15 FS.
  • Page 9 USER MANUAL GI620 COMPACT Indicates weighing unit pounds Indicates that a tare is activated Not used Indicates weighing unit kg. Not used Indicates the optional battery charge level: - 3 brands, full battery. - 2 brands, medium battery. - 1 brand, low battery.

  • Page 10: Keys Function

    USER MANUAL GI620 COMPACT 4. KEYS FUNCTION KEYPAD DESCRIPTION OF THE EXECUTABLE FUNCTION GI620 Power key. Turn the indicator on and off Short press: Access to the user menu Long press: Access to the technical menu In the edit menus: Increase the digit in editable Menu...
  • Page 11 USER MANUAL GI620 COMPACT In the edit menus: In the numeric menus, directly enter the digit represented on the key. In alphanumeric menus, the letters or symbols described. Pressing change from letter to number and vice versa. The left arrow serves to delete one by one the last digit in editing.

  • Page 12: Basic Configurations

    USER MANUAL GI620 COMPACT It is also possible to access functions directly by pressing the number keys on the keyboard. Displays the sum of the active channels. By Default channel 1+2+3+4 Display channel 1 Display channel 2 Display channel 3...
  • Page 13 USER MANUAL GI620 COMPACT 5.4 USER MENU Being in the weighing screen, press the key once, to access to the user menu. Use the arrow keys to move through, as well to access and exit the menus. The user menu is detailed below:...
  • Page 14 NUMBER OF BYTES / PARITY / STOP BITS / BAUDRATE / PROTOCOL / SENDING MODE COMMS COM2 FUNCTIONLESS COM3 FUNCTIONLESS The available protocols are: Giropes, Sipi 2, ALIBI, Sensocar, Printer, Giconf PRNTER COM1 Settings PRCOM1 Model -> ASCII / PLUS1 Ticket -> Default / Custom Sending mode in which way the Weighings are stored: Manual / Stable / No WEI.
  • Page 15 USER MANUAL GI620 COMPACT Dat.bas -> Database TABLES Table of the registers in memory REGIST Edit, activate and deactivate the desired resgister DELETE Delete data or register TARE.PR Edit, activate and deactivate the pre-Tara register BUF.INF Select whether to display or not, and when to display full buffer information RG.NAME...

  • Page 16: Basic Functions

    USER MANUAL GI620 COMPACT 6. BASIC FUNCTIONS The functions described below are those performed during the operation of the device, in normal weighing window. 6.1 ZEROING THE SCALE The first step is to select the desired channel. To do this, press the key once and the 5EL PT menu will appear.
  • Page 17 USER MANUAL GI620 COMPACT 6.5 CANCELLATION OF THE ACTIVE TARE To deactive the curent tare, press for approx. 2s 6.7 DISABLE THE TARE KEY It is possible, for convenience, to disable the function of the tare key. To deactivate the tare key, see the Technical manual.
  • Page 18 USER MANUAL GI620 COMPACT 8. PRINTOUT When the weight is stable and higher than the minimum weight, press the key The device will store the weight and print the ticket. According to which options are activated, following ticketformats will be printed:...
  • Page 19 USER MANUAL GI620 COMPACT ----------------------------- ----------------------------- 2022/05/16 18:31:23 2022/05/16 18:29:13 Pltf 1: 380kg Pltf 1: 380kg Pltf 2: 370kg Percentage 16.6% Pltf 2: 370kg Pltf 3: 760kg Percentage 16.2% Pltf 4: 760kg Pltf 3: 770kg ******************************** Percentage 33.6% TOTAL Pltf 4:...
  • Page 20 USER MANUAL GI620 COMPACT 9. PERSONALIZED TICKET Request DA1 / DA2 Description Allows to display the date. Example: 20/02/2020 12:18:00” 0 -> « Label » « Date » « Time » Format 1 -> « Date » « Time »...
  • Page 21 USER MANUAL GI620 COMPACT Request Description Display the weight of one Chanel 0 -> Chanel 1 1 -> Chanel 2 Chanel 2 -> Chanel 3 3 -> Chanel 4 Format 0 -> « Label » « Gross weight » 1 -> « Label » « Tare weight »...
  • Page 22 USER MANUAL GI620 COMPACT Request Description Display the accumulated Weigh 0 -> « Label » « Gross weight » 1 -> « Label » « Tare weight » 2 -> « Label » « Net weight » 3 -> « Label » « Gross weight » <CR> « Label »...
  • Page 23 USER MANUAL GI620 COMPACT Request Description Introduce the seperator TOTAL Example [TOT] Request DBAR Description Draw Barycenter Example [DBAR] Request TBAR Description Introduce the seperator BARYCENTER Example [TBAR] Request It allows the entry of hexadecimal or decimal values, useful for specific printer commands.
  • Page 24 USER MANUAL GI620 COMPACT Request Description Allows the entry of the character vertical tab (0x0B) Example “FOO<VT>BAR” Equal to “FOO\x0BBAR” Request Description Allows the entry of the character ‘\f’ (form feed) Example “FOO<FF>BAR” Equal to “FOO\fBAR” Request Description Allows the entry of the character ‘\r’ (carriage return) Example “FOO<CR>BAR”...
  • Page 25 USER MANUAL GI620 COMPACT Request Description Double height typology Example “<H2>DATA” DATA Equal to Request Description Restores normal typology size Example “<H3>” 10. BY10 DATA VISUALIZER 10.1 X10 DATA VISUALIZER In the weighing window, press the key , once, to access the user menu. Use the arrow keys to move, access and leave the menus Move to the BY 10 option and access it.

  • Page 26: Error Messages

    USER MANUAL GI620 COMPACT 11. ERROR MESSAGES During operation, the terminal verifies that there are errors, which are notified to the user through messages displayed on the display. Error UL When the weight is less than the minimum weight and we are viewing a single channel, the equipment will display the UL message on the screen.

  • Page 27: Cell Connector

    USER MANUAL GI620 COMPACT 12. CELL CONNECTOR The cable that comes from the transducer/s is connected by welding, it is recommended to be very careful with the quality of this and the isolation between the conductors and the use of a good tin alloy since a product of poor quality or not suitable could harm the proper functioning of the instrument.
  • Page 28 USER MANUAL GI620 COMPACT...
  • Page 29 USER MANUAL GI620 COMPACT...
  • Page 30 USER MANUAL GI620 COMPACT...
  • Page 31 USER MANUAL GI620 COMPACT...
  • Page 32 USER MANUAL GI620 COMPACT Pol. Empordà Internacional C/ Molló 3 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212...
