413854

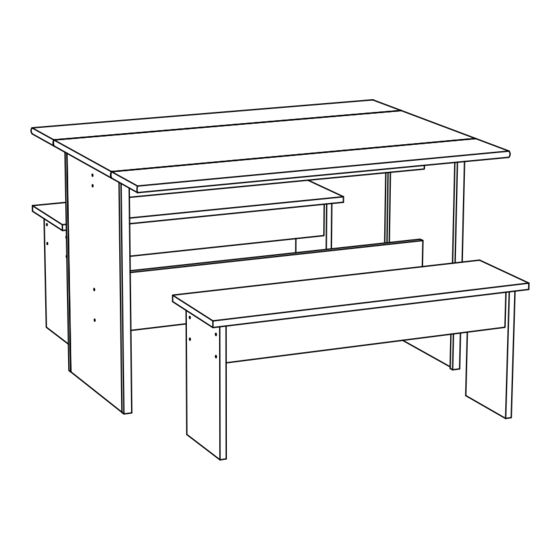

Table with Benches
PLEASE CONTACT US
BEFORE RETURNING
YOUR UNIT TO THE STORE
1-800-523-3987
www.sauder.com
NOTE: THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
English .................... Page 1-13
Français ...............Pages 14-15
Made in the USA
Espanol .............Páginas 16-17
Archbold, OH
Lot #: 359842
Date Purchased: ____________________
02 / 24 / 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 413854 and is the answer not in the manual?

Questions and answers

Related Manuals for Sauder 413854

Summary of Contents for Sauder 413854

  • Page 1 413854 Table with Benches NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE CONTACT US PLEASE READ AND KEEP FOR FUTURE REFERENCE. BEFORE RETURNING English ....Page 1-13 YOUR UNIT TO THE STORE Français ....Pages 14-15 Made in the USA 1-800-523-3987 Espanol .....Páginas 16-17...
  • Page 2 TABLE OF CONTENTS ASSEMBLY TOOLS REQUIRED Part Identifi cation .......3 No. 2 Phillips Screwdriver Hardware Identifi cation .....4 Tip Shown Actual Size Assembly Steps ....5-13 Français ......14-15 Espanol ....... 16-17 Safety ........18 Warranty ........19 Page 2 www.sauder.com/services 413854...

  • Page 3: Part Identification

    Use this PART IDENTIFICATION to help identify similar parts. LARGE END LEAF SMALL TOP SMALL END UPPER SUPPORT SKIRT LARGE TOP LOWER SUPPORT END MOLDING 413854 www.sauder.com/services Page 3...

  • Page 4: Hardware Identification

    LEAF SUPPORT - 4 CAM COVER - 12 SCREW COVER - 24 BLACK 9/16" LARGE HEAD SCREW - 40 SILVER 2" FLAT HEAD SCREW - 24 Screws are shown actual size. You may receive extra hardware with your unit. Page 4 www.sauder.com/services 413854...
  • Page 5 Assemble your unit on a carpeted fl oor or on the empty carton to avoid scratching your unit or the fl oor. Push twelve HIDDEN CAMS (J) into the ENDS (A and B2). Then, insert the metal end of a CAM DOWEL (K) into each HIDDEN CAM. 413854 www.sauder.com/services Page 5...
  • Page 6 Wipe away the excess GLUE. Now, fill the center holes in the LARGE TOP (C) 1/4 to 1/2 full with GLUE. Then, insert the WOOD DOWELS in the UPPER SUPPORT into these holes as shown. Wipe away the excess GLUE. Page 6 www.sauder.com/services 413854...
  • Page 7 Tighten Arrow Risk of damage or injury. Hidden Cams must be completely Arrow Maximum tightened. Hidden 210 degrees Cams that are not completely tightened Minimum may loosen, and parts 190 degrees may separate. To completely tighten: 413854 www.sauder.com/services Page 7...
  • Page 8 Fasten the LOWER SUPPORT (F) to the LARGE ENDS (A). Use four SILVER 2" FLAT HEAD SCREWS (57S). Slide four END MOLDINGS (I) onto the notched edges of the LARGE ENDS (A). *U.S. Patent No. 5,499,886 Page 8 www.sauder.com/services 413854...
  • Page 9 Fasten six HINGES (N) to the LARGE TOP (C). Use twelve BLACK 9/16" LARGE HEAD SCREWS (S). Now, fasten both LEAVES (D) to the HINGES on the LARGE TOP (C). Use twelve BLACK 9/16" LARGE HEAD SCREWS (S). 413854 www.sauder.com/services...
  • Page 10 Curved end Curved end BLACK 9/16" LARGE HEAD SCREW (16 used in this step) Fasten four LEAF SUPPORTS (O) to the LARGE TOP (C). Use sixteen BLACK 9/16" LARGE HEAD SCREWS (S). Page 10 www.sauder.com/services 413854...
  • Page 11 Insert eight WOOD DOWELS (L) into the middle holes in the ends of the SKIRTS (H2). Fasten the SMALL ENDS (B2) to the SKIRTS (H2). Use sixteen SILVER 2" FLAT HEAD SCREWS (57S). NOTE: Be sure the WOOD DOWELS in the SKIRTS insert into the SMALL ENDS. 413854 www.sauder.com/services Page 11...
  • Page 12 Insert eight WOOD DOWELS (L) into the holes in the SMALL TOPS (G). Fasten the SMALL ENDS (B2) to the SMALL TOPS (G). Tighten eight HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the SMALL TOPS insert into the SKIRTS (H2). Page 12 www.sauder.com/services 413854...
  • Page 13 NOTE: Please read the back pages of the instruction booklet for important safety information. This completes assembly. To clean your unit, dampen a cloth with tap water and wipe. 413854 www.sauder.com/services Page 13...

  • Page 14: Liste De Pièces

    A l’usage exclusif du Canada Noter la date d’achat de cet élément et conserver le livret pour future référence. Pour contacter Sauder en ce qui concerne cet élément, faire référence au numéro de lot et numéro de modèle en appelant notre numéro sans frais.
  • Page 15 Fixer six CHARNIÈRES (N) sur le GRAND DESSUS (C). Utiliser douze VIS TÊTE LARGE 14 mm NOIRES (S). Maintenant, fi xer les deux RALLONGES (D) sur les CHARNIÈRES du GRAND DESSUS (C). Utiliser douze VIS TÊTE LARGE 14 mm NOIRES (S). 413854 www.sauder.com/services Page 15...

  • Page 16: Lista De Partes

    Si necesita ponerse en contacto con Sauder en cuanto a esta unidad, refi érase al número de lote y al número de modelo cuando llame a nuestro número gratis.
  • Page 17 GRANDE (C). Utilice doce TORNILLOS NEGROS DE CABEZA GRANDE de 14 mm (S). Ahora, fi je ambas ALAS (D) a las BISAGRAS en el PANEL SUPERIOR GRANDE (C). Utilice doce TORNILLOS NEGROS DE CABEZA GRANDE de 14 mm (S). 413854 www.sauder.com/services Page 17...
  • Page 18 • No empuje la unidad, especialmente mueven inadecuadamente. sobre un piso alfombrado. Obtenga ayuda • Lesión física. Los muebles pueden ser de alguien para levantar objetos pesados, muy pesado. como una mesa, y para ponerla luego en su lugar. Page 18 www.sauder.com/services 413854...

  • Page 19: Year Limited Warranty

    4. La présente garantie ne s’applique qu’aux défauts garantis qui se produisent des composantes de mobilier Sauder. Le mot « défaut », tel qu’il est utilisé sous pour la première fois et qui sont signalés à Sauder dans les limites de ouverture les termes de la présente garantie, comprend les imperfections des pièces qui...
  • Page 20 Archbold, Ohio, where it all began. Certifi cate of Conformity The Sauder name on the box ensures that 1. This certifi cate applies to the Sauder Woodworking Product indentifi ed by this Instruction Book. the item you have purchased is made with 2.
