IP4M-1062EW-AI

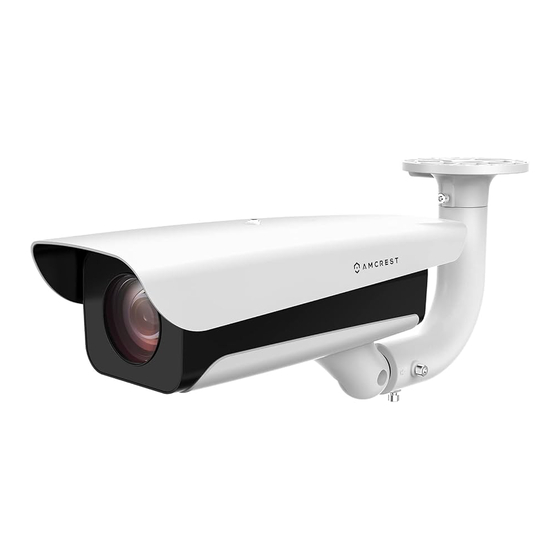

4MP UltraHD License Plate Reader ANPR POE Bullet Camera
User Manual
Version 1.0.0
th
March 20
, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP4M-1062EW-AI and is the answer not in the manual?

Questions and answers

Related Manuals for Amcrest IP4M-1062EW-AI

Summary of Contents for Amcrest IP4M-1062EW-AI

  • Page 1 IP4M-1062EW-AI 4MP UltraHD License Plate Reader ANPR POE Bullet Camera User Manual Version 1.0.0 March 20 , 2023...

  • Page 2: Table Of Contents

    Contents Overview ..........................3 Installation Guide........................3 Camera Access Setup ....................... 6 Desktop Access Setup ......................6 Query ............................9 Setup ............................11 Camera ........................... 17 Network ..........................20 Event ............................25 Storage ........................... 27 System............................ 28 Information ..........................30 Alarm............................

  • Page 3: Overview

    To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contact Important Security Warning To keep your Amcrest camera secure and prevent unauthorized access, please make sure to follow the steps below: • Always make sure that your camera has the latest firmware as listed on www.amcrest.com/firmware •...
  • Page 4 MicroSD Card Installation A MicroSD card can be used to store and view local recordings/snapshots. This camera requires a class 10 or above MicroSD card formatted to FAT32 to function. The camera can handle a max of 256GB of MicroSD card storage. Use the included torx wrench to remove the bottom Insert the MicroSD card into the MicroSD card slot panel.
  • Page 5 Insert the bottom bracket of the camera into the top Apply the installation sticker to the mounting surface. of the installation bracket and secure it using the Use a 8mm diameter drill head to drill the holes included Allen wrench. Run the wiring through the provided on the sticker.

  • Page 6: Camera Access Setup

    To access your camera from your computer you will need to first locate the camera’s IP address. To locate the camera’s IP address is it highly recommended to download our free Amcrest IP Config Tool software. The Amcrest IP Config Tool can be downloaded at the following web page: amcrest.com/downloads In the All Downloads menu, click on IP Config Software to begin the free download.
  • Page 7 Live By default, the interface opens to the Live tab. The live view tab allows the user to see the live feed of the camera as well as provides an area to view real time metadata captured by the camera and adjust configuration settings. Mainstream: Displays the mainstream feed.
  • Page 8 Config(LPR) This menu allows the user to adjust the focus, zoom, capture area, and other settings related to the ANPR camera. The camera will come default with the recommended capture area however can be adjusted if needed. Below is a description of the features provided in this menu. Auto Focus: Automatically adjusts the focus to optimal settings.

  • Page 9: Query

    Query The Query menu allows the user to search for events, snapshots, and export plate logs (reports). Please note, the features provided in this menu will require the use of a .exe plugin. To use these features, please make sure to use IE Mode in Microsoft Edge for optimal use.
  • Page 10 To open an image, select an event or events from the event list and click Open. Click Watermark. The camera will verify whether the picture has watermark and displays the results on the event list under Watermark. Plate Logs The Plate Logs menu allows the user to search and export events from a specified period of time. The plate logs can also be filtered by direction (approaching, departing, etc.) if needed.

  • Page 11: Setup

    Alarm Output Search The Alarm Output Search menu allows the user to search and export external alarm event logs from the system to your computer. Like the plate logs, a .csv (excel sheet) of this information can be generated and saved to your computer.
  • Page 12 To reset to default settings, click the Default button. To refresh the screen, click on Refresh. To save the settings, click the Save button. Scene This menu allows the user to configure the advanced functions of plate recognition, mounting heights, and positions.
  • Page 13 Below is a description of the features provided in this menu. Black Edge Location: Place a black edge along the top or bottom of the snapshot. This can be disabled by selecting None. Font Size: Set the font size of the text located in the snapshot overlay. For more options, click More. NewLine: Create a separate line of text in the overlay.
  • Page 14 New Line: Add a new line of text into the Edit: Choose an overlay from the overlay list. Enter the changes you would like to make into their respective fields and click Yes to edit. Delete: Check an overlay from the overlay list to remove it from the list. Custom Font Color: Create a custom color for the text in a selected snapshot overlay.
  • Page 15 Add: Select this option to add plate numbers, card IDs, vehicle owner, as well as schedule a time of day in which the filter will apply. To add more vehicle data into the list select the Continue Adding option. Click Save to apply. Browse: Allows the user to download or import a list of vehicle data into the interface.
  • Page 16 • Order (Server): The platform will send commands and output the open barrier signal. Please note, you can configure barrier opening control as Allowlist Open (Camera) and Order (Server) at the same time, however, the Allowlist Open (Camera) option will take priority. Manually Open: Click to manually open a barrier trigger.

  • Page 17: Camera

    To reset to default settings, click the Default button. To refresh the screen, click on Refresh. To save the settings, click the Save button. Camera This menu tab allows the user to change or modify specific camera configuration and image settings. Configuration The Configuration menu allows the user to configure general settings such as image brightness and saturation, night vision, and other settings related to image quality.
  • Page 18 Picture This menu allows the user to set and adjust the sharpness and wide dynamic range settings. Below is a description of the features provided in this menu. Scene: This dropdown box allows the user to select which profile to modify. The 3 options are D awn/Dusk, Daytime and Night.
  • Page 19 To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button. Metering Zone This menu allows the user to make adjust to the backlight or front light image intensity of the image. The measuring mode can be set globally or partially within the device.

  • Page 20: Network

    However, this can be updated if accessing the camera in IE mode on Edge, for more information please visit amcrest.com/support Network This menu section allows the user to change network settings for the camera.
  • Page 21 This feature needs to be enabled for use with the Amcrest View app, or other software that requires P2P. Please note, the LPR camera can be added to the Amcrest View Pro app if needed, however, is only applicable to live view as the camera does not support video playback, motion detection, or push notifications.
  • Page 22 The Amcrest View Pro app can be downloaded in both the App Store and Play Store. The following steps will continue the app setup process for an Android phone and, though the iPhone version of the app has slightly different steps, most of this process is identical and easy.
  • Page 23 For purposes of this guide, AmcrestDDNS will be used. AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be renewed every year. A renewal reminder email will be sent to the email entered in the username field below. To use AmcrestDDNS, enter the domain name set for the camera in the Domain Name field and enable the Type option.
  • Page 24 CPU load. The source host can send out one piece of data to transit. Below is a description of the features provided in this menu. Enable: Enable or disable multicast for the mainstream and substream. Multicast address: Main/sub stream multicast default address is 224.1.2.4 and its range is 224.0.0.0 ～ 239.255.255.255.

  • Page 25: Event

    To enable HTTPS, click Create. Enter the requested information related to the certificate, region, IP or domain name of the camera, state, location, etc., and click Create. Click Install and allow the cert to be created. Click the download button to download the root cert to your computer. Right click on the root cert and install the certificate to your machine (be sure to place the cert in the Trusted Root Certification Authorities folder).
  • Page 26 SMTP (Email) menu for email alerts to function. For more information on setting up email alerts, please visit amcrest.com/support To reset to default settings, click the Default button. To refresh the screen, click on Refresh. To save the settings,...

  • Page 27: Storage

    SMTP (Email) menu for email alerts to function. For more information on setting up email alerts, please visit amcrest.com/support Storage This menu section allows the user to change storage settings for the camera. This includes MicroSD cards and FTP settings.

  • Page 28: System

    SD Card This tab is where the user can change microSD card settings. Below is an explanation of the fields on the microSD card settings tab: Disk Full: Select whether the card will be overwritten after it is full or to stop after it is full. Device Name: This column designates the name of the microSD card that is currently in the camera.
  • Page 29 Live Stream Standard: This dropdown box allows the user to select either the NTSC or PAL video standard. To reset to default settings, click the Default button. To refresh the screen, click on Refresh. To save the settings, click the Save button. Date &...

  • Page 30: Information

    Go to amcrest.com/firmware Search for the model number of your camera and download the latest firmware file. Return to the web user interface for your camera and press the Browse button to locate and import the firmware file you just downloaded.

  • Page 31: Alarm

    This screen is where the camera’s activity log is kept. To view logs for a specific time period, modify the start time and end time fields, choose the type of event (system, setting, data, event, record, manage users, clear log), an d click search.
  • Page 32 Click the Connections menu item on the left-hand menu and ensure that the HTTP port has changed. Click the DDNS menu item on the left-hand menu, pick Amcrest DDNS from the drop-down box, click the checkbox next to Server Type, and then click the Save button on the bottom right.
  • Page 33 For example, if the DDNS domain name is http://abc123456789.AmcrestDDNS.com and your HTTP Port is 33333, the URL would be http://abc123456789.AmcrestDDNS.com:33333 23. Enter in login details into the username and password fields and click login. If the process above is not working, please contact Amcrest Support via one of the following options: Visit http://amcrest.com/contact and use the email form Call Amcrest Support using one of the following numbers.
  • Page 34 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes, or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 35 All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks mentioned are the properties of their respective owners. To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contact and use the email form...
