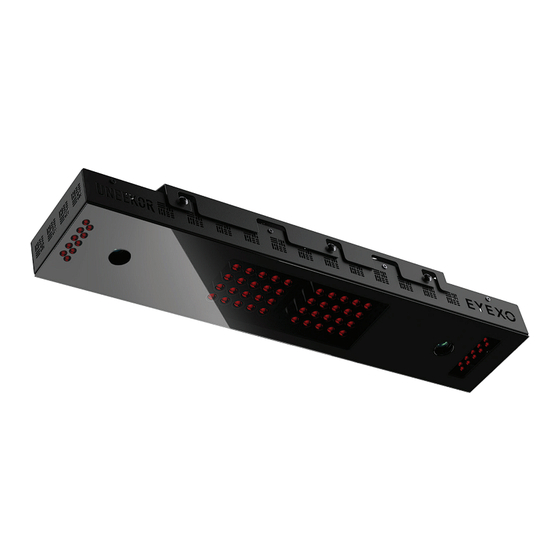

Summary of Contents for UNEEKOR EYE XO
- Page 1 USER MANUAL Important: Read before using.
- Page 2 Do not modify the plug provided. If it will not fit the outlet, have proper outlet installed by a qualified electrician. EYE XO USER MANUAL...
-
Page 3: Table Of Contents
Step 3: Connection Step 4: Connection Status Software Installation Warning Software Installation Calibration Guide To Ensure Safe Use Calibrating Instructions Club Sticker Placement Club Sticker Application Application 1 Application 2 Appendix Club Data Ball Data Specfications Links EYE XO USER MANUAL... -
Page 4: To Ensure Safe Use
Caution improperly. Material damage refers to damage to home, furnishing, or anything within the unit’s vicinity. This symbol alerts the user to items NEVER that should never be carried out. EYE XO USER MANUAL... - Page 5 Operating in a dark or cluttered space may lead to accidents. Be aware of your surroundings and use cautiously with children around. Swinging the club during play without being aware will result in serious injury or death. EYE XO USER MANUAL...
-
Page 6: Installation
GeForceGTX 1060 or higher Operating System Windows 10 (64bit) Version 1803 or higher Resolution 1920 x 1080 Connectivity Ethernet Port Required * AMD: 3rd gen Ryzen or higher and AMD Ryzen 3600 or higher (AMD 2700 is not compatible). EYE XO USER MANUAL... -
Page 7: What's Included
EYE XO Sensor Bracket Calibration Chart Power Power Cable Power Adapter Connector USB Ethernet Ethernet LAN Club Stickers Adapter Cable Level M4 32mm screws M6 15mm screws M6 15mm low screws M6 15mm high screws EYE XO USER MANUAL... -
Page 8: Hardware Installation
This symbol alerts the user to items CAUTION that should never be carried out. NECESSARY PARTS NECESSARY TOOLS Ladder Phillips M4 32mm Bracket Sensor Bar Screwdriver Screw x9 EYE XO USER MANUAL... -
Page 9: Step 1: Mounting Bracket
Hardware Install - Cont Step 1: Mount Bracket The EYE XO Sensor and bracket come attached together in the box. Slightly loosen the black M6 15 mm screws that are holding the sensor to the bracket so you can remove it. Please make sure you have measured 3.5 feet... -
Page 10: Step 2: Sensor Insert
The regular M6 15mm screws are already screwed into the sensor. You can change this out with the M6 155 High or Low screws to adjust the angle/ tilt. M6 High 15mm M6 Low 15mm M6 15mm EYE XO USER MANUAL... -
Page 11: Step 3: Connection
An extra green grounding wire is provided on the end of the power connector in case your outlet is not grounded. **Make sure to check the connection status before you start the software installation process. EYE XO USER MANUAL... -
Page 12: Step 4: Connection Status
Ethernet port. Do NOT have it connected to the USB Adapter or a hub. *Not sure about this computer graphic... we could buy a stock image or I can make one if we want to replace it LAN Cable Sensor (Ethernet) Page 14 Diagram 1 - EYE-MINI Manual Diagrams EYE XO USER MANUAL... -
Page 13: Software Installation Warning
Environment,” before the installation process. Failure to do will result in installation issues and slow gameplay. Please make sure the connection statuses are clear and everything WARNING is paired. Failure to do will result in installation issues. EYE XO USER MANUAL... -
Page 14: Software Installation
Software Installation To begin the software installation for your EYE XO. Please download the Uneekor Launcher found under the resources tab of Uneekor.com or use the link below. Uneekor Launcher For further information on using the Uneekor Launcher, please see below. - Page 15 Software Installation - Cont Ensure your EYE XO is plugged into the power and the CAT6 cable is connected from the EYE XO, directly into the Ethernet port on your PC. If connected using the USB 3.0 adaptor, you’ll run into issues using the EYE XO.
- Page 16 You will see your EYE XO here. Click “Select” and then “Continue” on the bottom. If you do not see your EYE XO press the “Refresh” button. If your EYE XO still does not appear return to step 5 and select a different Ethernet port and click “Select.”...
-
Page 17: Calibration Guide
CALIBRATION GUIDE Calibration Chart Parts required Uneekor Launcher Level Tool required Software required EYE XO USER MANUAL... -
Page 18: To Ensure Safe Use
Confirm you have successfully finished the hardware and software installation WARNING before you begin the calibration process. The mounting position of the EYE XO sensor must be perfectly aligned 3 feet 6 inches in front of your tee position and WARNING between 9 - 10 feet for the ceiling height. -
Page 19: Calibrating Instructions
Calibrating During the installation process of the EYE XO using the launcher, it will automatically pull up the calibration tool. Please follow the prompts on the launcher to calibrate your EYE XO. If you have any issues calibrating your device using the instructions on the launcher, please see the next page. - Page 20 If all the above conditions are met, click “Calibrate” on the bottom left. Plese wait while your EYE XO calibrates. EYE XO USER MANUAL...
- Page 21 Make sure the hitting box is within the checkered/ speckled area displayed around the calibration board. Remove the Calibration board, click “Apply” and then click “Continue.” EYE XO USER MANUAL...
- Page 22 Once the system is finished calibrating the launch monitor you will see the screen pictured below. Please take a test shot to ensure the EYE XO was calibrated correctly and operational. Select the applicable club you will be testing and take a shot.
- Page 23 Calibrating Step 7 Installation and calibration of your EYE XO is now complete. Click “Continue” and navigate to the “Start” tab on the left column to proceed to installing your View and Refine/ Refine+ software. *(Refine/ Refine+ sold separately) EYE XO USER MANUAL...
-
Page 24: Club Sticker Placement
CLUB STICKER PLACEMENT CLUB STICKER PLACEMENT Overview EYE XO USER MANUAL... - Page 25 13 grooves 1. Bar Sticker Align the middle of the Bar Sticker to the horizontal center line or the 7th groove. 2. Dot Sticker Align to the middle of the bar sticker and parallel between the grooves. EYE XO USER MANUAL...
-
Page 26: Club Sticker Application
4 horizontal line so all of the Bar Sticker can be placed inside the club face. *In the case where you do have to raise the horizontal line beyond the center to fit all 4 corners of the Bar Sticker, the data will be calculated higher. EYE XO USER MANUAL... - Page 27 *CLUB DATA CANNOT BE READ IF THE BALL IS COVERING ONE OF THE TWO STICKERS. CLUB DATA WILL BE ONLY SHOWN IF BOTH STICKERS ARE VISIBLE.* EYE XO USER MANUAL...
-
Page 28: Appendix
The speed of the club before impact. Smash Factor The amount of energy transferred from the club head to the golf ball. Face to Path The amount of energy transferred from the club head to the golf ball. EYE XO USER MANUAL... - Page 29 (right or left) the club head is moving at impact and is measured relative to the target line. Face Angle The direction (right or left) the club face is pointed at impact. It is measured relative to the target line. EYE XO USER MANUAL...
- Page 30 Lie angle is the angle created between the center of the shaft and ground when you put your iron down in the address position. Impact Point Vertical, Horizontal Where you strike the ball on the club face. EYE XO USER MANUAL...
-
Page 31: Ball Data
Measurement of horizontal spin on the golf ball that causes your golf ball to slice or draw Back Spin Measurement of reverse rotation of the golf ball in relation to the ball’s trajectory (Backspin generates an upward force that lifts the ball) EYE XO USER MANUAL... - Page 32 (Horizontal launch angle) Side Total Distance the ball travels in the air left or right of the target Launch Angle The initial angle of ascent of the golf ball just after impact (relative to the ground) EYE XO USER MANUAL...
- Page 33 The total amount of time that the golf ball spends in the air prior to landing on the ground Distance to Apex Distance the ball travels in the air before hitting the peak height of the ball’s trajectory EYE XO USER MANUAL...
- Page 34 Understanding the Data Ball Data Carry Distance the ball travels in the air Distance the ball travels after making contact with the ground Total Distance Total distance the golf ball travels including the carry and roll EYE XO USER MANUAL...
-
Page 35: Specfications
Ball Speed Putter: 0.1 m/s ~ 30 m/s Measurement Range Ball Speed Driver/Iron: 5 m/s ~ 100 m/s Driver: -5 ~ 50 Degree Sensing Angle Iron: 0.1 ~ 80 Degree (shots over 60° can damage the unit) EYE XO USER MANUAL... -
Page 36: Links
Links Launcher Overview Guide Uneekor Laucher Resources Support EYE XO USER MANUAL... - Page 37 MASTER YOUR PASSION UNEEKOR, INC. 15770 LAGUNA CANYON RD SUITE 100 IRVINE, CA 92618 TEL: 1-949-328-7790 SALES@UNEEKOR.COM SUPPORT@UNEEKOR.COM...
