Summary of Contents for UNEEKOR EYE XR

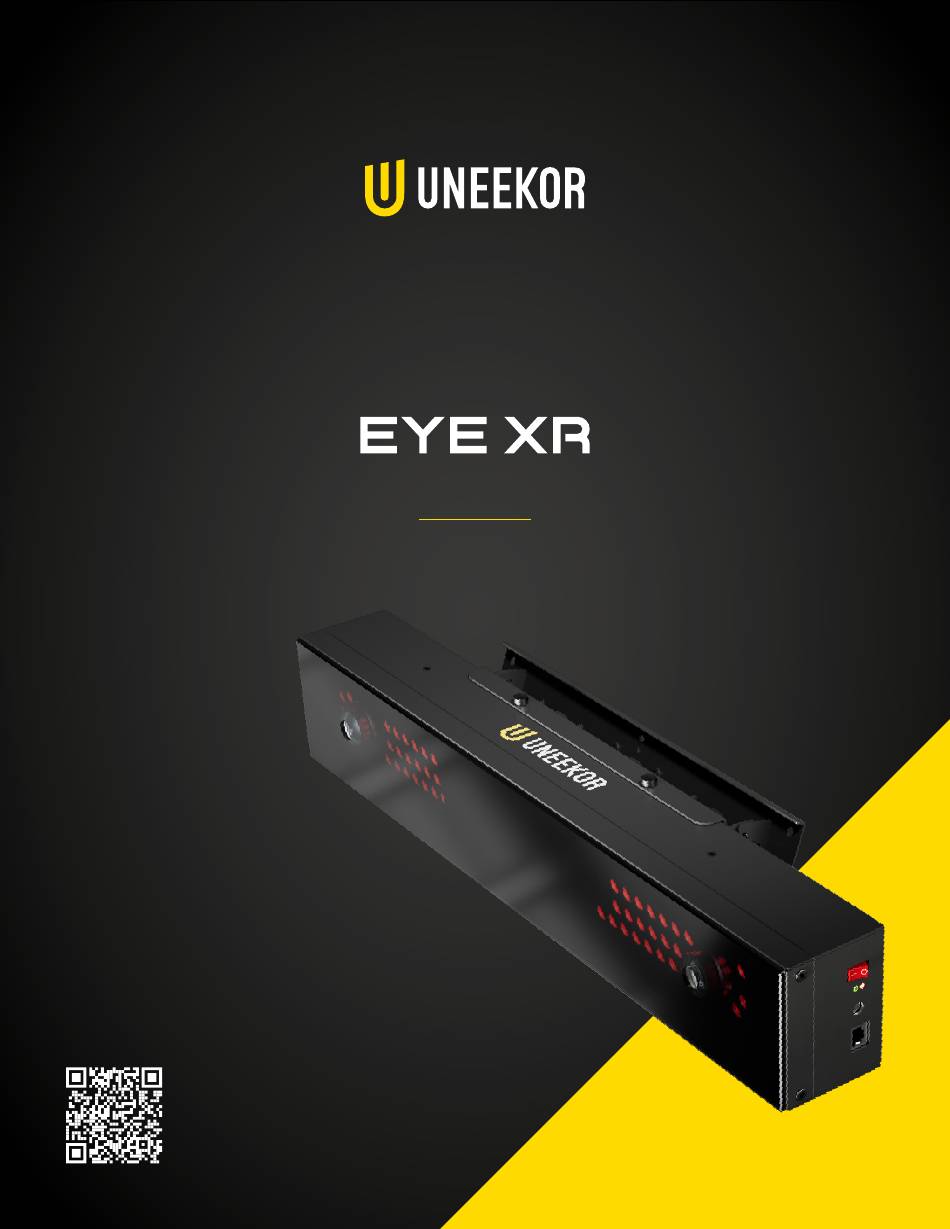

- Page 1 Product Guide Precision Technology Exceptional Performance...
-
Page 2: Table Of Contents
User Guide Contents Welcome to Uneekor What’s Included? Safety Notice Installation and Setup Installation Tools Connecting your EYE XR Connection Status Software Installation Guide Technical Specs Additional Resources... -
Page 3: Welcome To Uneekor
Uneekor Launch Monitor. The EYE XR combines dual high-speed cameras with AI-driven tracking to deliver accurate ball and club data. The placement behind the hitting zone provides the freedom to swing confidently and freely. With a sleek, compact design, it seamlessly integrates into any modern setup, redefining precision and convenience. -
Page 4: What's Included
What’s Included? EYE XR LAUNCH MONITOR EYE XR BRACKET CALIBRATION BOARD POWER CABLE (STANDARD US OUTLETS) POE INJECTOR USB ETHERNET ADAPTER 45FT LAN CABLE 15FT LAN CABLE LEVEL M4 SCREWS (32MM) BRACKET ANGLE GUIDE PINS... -
Page 5: Safety Notice
Do not look directly into the infrared cameras when the device is turned on • Uneekor recommends storing your device in a cool and dry environment • Ensure the temperature of the storage space is not colder than 20ºF (-6ºC) and no warmer than 110°F (43°C). - Page 6 Safety Notice Read all precautions before installation. It is essential that you fully understand and observe these precautions and warnings at all times. CAUTION. HOT SURFACE This device can be hot and must not be covered or touched without taking care. WARNING! THIS DEVICE MUST BE GROUNDED If it should malfunction or break down, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock.
-
Page 7: Installation And Setup
The overhead launch monitor should be mounted and setup on your ceiling following this below illustration. The mounting position of the EYE XR launch monitor device must be perfectly aligned 3 feet 6 inches behind your tee position and between 9-10 feet for the ceiling height. Failure to meet these requirements will result in accuracy issues. -
Page 8: Mounting The Bracket
Mounting the Bracket EYE XR INSTALLATION TOOLS (NOT INCLUDED) To safely and accurately install your new EYE XR launch Monitor, please ensure you have the following tools available: LADDER SCREWDRIVER (PHILLIPS) NECESSARY PARTS (INCLUDED) M4 32MM SCREW BRACKET EYE XR LAUNCH MONITOR... -
Page 9: Bracket Position
Step 1 PREPARE THE EYE XR BRACKET The EYE XR launch monitor device and bracket come attached together in the box. Slightly loosen the black screws that are holding the device to the bracket so you can remove it. Please ensure that you measure 3 feet 6 inches... - Page 10 Step 4 INSERT THE DEVICE After the bracket has been firmly mounted to the ceiling or the ceiling drop mount, you can now install the device. Locate the two already installed silver screws on your EYE XR.
- Page 11 Step 5 SLIDE THE DEVICE ONTO THE BRACKET Push the silver screw of the device into the circular hole of the bracket. Then, slide the device towards the elongated hole next to the circular hole of the bracket to secure it in place. Step 6 ADJUST THE DEVICE ANGLE The angle of the device can be adjusted with the...
-
Page 12: Connecting Your Eye Xr
EYE XR Next is to connect your EYE XR to your gaming computer. Please ensure that your computer meets the required specifications to run your EYE XR with all software (Insert link to our website with PC requirements) specifications to run your EYE XR with all software (Insert link to our website with PC requirements). - Page 13 Connecting Your EYE XR Step 1 CONNECTING YOUR EYE XR Locate the 15m LAN cable from the EYE XR box. Connect the cable to the device as shown here. Then connect the other end to the POE Injector. EYE XR-POE (45FT)
-
Page 14: Connection Status
Uneekor Launcher by following this link or navigate to this URL: https://download.uneekor.com/ dist/Uneekor/UneekorLauncher/UneekorLauncher_Setup.exe Once Launcher is installed, please log in and select the “Install” tab on the left. Select the EYE XR and then press “Continue”. Step 3: Follow the Install Wizard Follow the Install Wizard instructions on the screen. -
Page 15: Technical Specifications
APEX (Peak Height) Distance to APEX Flight Time Total Carry Total Distance Face angle in EYE XR is calculated using a proprietary mathematical formula based on available ball and club data, providing an estimate without the need for club stickers. -
Page 16: Technical Support
TECHNICAL SUPPORT We are always ready to help and support you in your Uneekor journey. For additional technical support, please visit https://uneekor.com/support or reach out to one of our Technical Support heroes at support@uneekor.com or Phone: +1 (888) 262-6498 OPERATING HOURS Monday –...
