- Page 1 USER MANUAL Important: Read before using.
- Page 2 For those looking to use the EYE MINI on the range or take your simulation room to the next level, the EYE MINI is there to help you analyze and improve every aspect of your golf game.
-
Page 4: Table Of Contents
What’s Included License Registration EYE MINI Overview Get Familiar Getting Set-Up Aligning Your EYE MINI Applying Club Stickers Safety Notice Appendix Data External Links EYE MINI USER MANUAL... -
Page 5: What's Included
Tweezers Ethernet Cable Power Cable Rubber Stopper Club Stickers EYE MINI Carrying Case with Shoulder Strap EYE MINI USER MANUAL... -
Page 6: License Registration
License Registration The EYE MINI requires periodic connection via internet to validate the license. If the EYE MINI is disconnected from the internet for a period of longer than 90 days, all connection will be prohibited until device is connected to internet and license is validated. -
Page 7: Eye Mini Overview

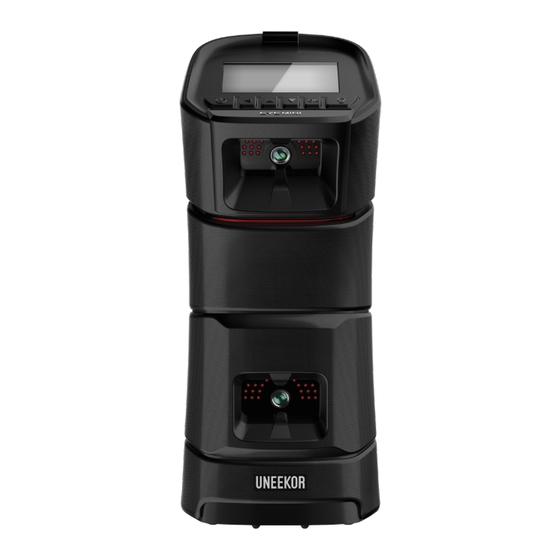

Page 6 Diagram - v1 - EYE-MINI Manual Diagrams 10’ L x 13’ W x 10’ H Dimensions Marked Balls 6.5” L x 6.6” W x 15.75” Compatible Accessories Weight Club stickers, Swing Optix, Balance Optix 7lbs 15oz EYE MINI USER MANUAL... - Page 8 EYE MINI Overview Front E-Ink Screen Power Button Displays calibration, Turns the options, and Device On/Off shot data Two High- Speed Cameras & Infrared Sensors EYE MINI USER MANUAL...
- Page 9 EYE MINI Overview Rear Handle Power Port Ethernet Port Utilized to connect to network via ethernet cable or connect to PC USB-C Port For Uneekor use only EYE MINI USER MANUAL...
- Page 10 Increases device On/Off brightness for better viewing *Tap to wake up from sleep mode Back Button OK Button Return to Used to previous screen select options Up/Down Keys Used to navigate between settings and shot data EYE MINI USER MANUAL...
- Page 11 EYE MINI Overview Ways to Use There are various ways to use the EYE MINI: (1) PC, (2) iPad/ iPhone/ Android, (3) E-Ink Display. 1. PC For when you are at home and looking to make the most of your indoor golf simulator bay.
-
Page 12: Get Familiar
Begin by pressing the power button to turn on the EYE MINI. After powering on the EYE MINI, it will take you to the “Searching…” screen. This is the screen you will see when the sensor is looking for a golf ball in the hitting zone when you are ready to hit. - Page 13 10”- 20” apart pointed at your target (*Ensure that target is within On page 1 under the settings option you 10 degrees of where the EYE MINI is can change between left- and right-handed aimed). Make sure there is a check mark golfers.
- Page 14 Get Familiar Status About Gives you the status of the Battery Device: you will find your EYE MINI life, WiFi, WiFi IP Address, Ethernet, Serial Number, Region, Wi-Fi SSID, and Ethernet IP Address. Wi-Fi Password. License section: you can see your...
-
Page 15: Getting Set-Up
Page 14 Diagram 1 - EYE-MINI Manual Diagrams To connect your EYE MINI with PC, connect the ethernet cable from the PC to the back of the EYE MINI. Ensure the Ethernet option under settings on the EYE MINI is set to “STATIC.”... - Page 16 To connect the EYE MINI this way, please connect the ethernet cable provided from the back of the EYE MINI to the LAN port on your router or network switch. Under settings change ethernet type to “Dynamic”.
- Page 17 My uneekor guide here…. 3. *When connecting the internet connection directly from your PC to your EYE MINI, go to devices in the launcher and make sure ethernet is selected in the drop down and click “Select” 4. Open the Uneekor Launcher on your PC and go to the “Install” tab on the left-hand side and select EYE MINI, then continue.
- Page 18 View App If you have not already registered the EYE MINI above with your PC and would like to only use an iPad/iPhone, please see below. On the main screen of the EYE MINI, select “MENU”. On the left-hand side of the MENU screen, you’ll see a QR Code.
- Page 19 4. ****Link to VIEW app Here 5. Open the View app on your iPhone or iPad. Click the home button on the top left. In the pop up you’ll see your EYE MINI. Select your EYE MINI *Within 90-days you’ll need to download and connect the EYE...
-
Page 20: Aligning Your Eye Mini
Aligning Your E YE MINI CAUTION Ensure EYE MINI is placed on a level surface. If placed on an angle, the ball will fly at the angle it is tilted to. Ensure EYE MINI is placed on even height surface as hitting area. - Page 21 Align two balls 10” - 20” apart pointed at your target (*ensure that target is within 10 degrees of where the EYE MINI is aimed). Make sure there is a check mark above the two balls on the EYE MINI display, then click “APPLY”.
-
Page 22: Applying Club Stickers
Applying Club Stickers *Club stickers are not required to use the EYE MINI. Applying club stickers allow EYE MINI to read the club face and interpret club data. The EYE MINI utilizes a single club sticker. To apply club stickers, please follow bellow. - Page 23 Wood/ Hybrid: For woods and hybrids that have 5 grooces, the club sticker is placed 1 inch in from the toe and 3rd groove. *If the club sticker is not applied, club data will not be provided EYE MINI USER MANUAL...
-
Page 24: Safety Notice
20-degree Fahrenheit and no warmer than 110-degrees Fahrenheit. DO NOT leave your EYE MINI outside unattended. DO NOT leave your EYE MINI in the trunk of your vehicle in cold or hot temperatures for extended periods of time. EYE MINI USER MANUAL... - Page 25 If sticker seal on the bottom is tampered with, warranty will be nullified. 4. DO NOT use this device in environments where high humidity, smoke, or dust is present. 5. DO NOT look directly into the infrared cameras when the device is turned on. EYE MINI USER MANUAL...
- Page 26 Safety Notice For any issues please contact support Email: Support @Uneekor.com To schedule an appointment with support, visit our website Support | Uneekor EYE MINI USER MANUAL...
-
Page 27: Appendix
Pace at which ball is traveling when it leaves the club face after impact Back/Side Spin Rotations of the ball either left, right, or backwards Side Angle Degree angle, left or right, of ball when leaving club face left or right EYE MINI USER MANUAL... - Page 28 Appendix Side Distance Distance of ball, left or right relative to starting point of shot Launch Angle Vertical angle of ball after leaving club face Carry Distance Total distance ball traveled in the air EYE MINI USER MANUAL...
- Page 29 The in to out, or out to in movement of the club head’s geometric center at the center at the time of impact. Club Path is the direction (right or left) the club head is moving at impact and is measured relative to the target line EYE MINI USER MANUAL...
-
Page 30: External Links
Appendix • Uneekor Launcher Installation Guide • Uneekor Launcher Overview Guide • Uneekor Launcher Download • VIEW Air iPad App • my.uneekor.com • Uneekor Support EYE MINI USER MANUAL... - Page 31 MASTER YOUR PASSION UNEEKOR, INC. 15770 LAGUNA CANYON RD SUITE 100 IRVINE, CA 92618 TEL: 1-949-328-7790 SALES@UNEEKOR.COM SUPPORT@UNEEKOR.COM...
