- Page 1 USER MANUAL Important: Read before use...
- Page 2 Elevate your golf simulation experience to new heights with state-of-the-art features, all wrapped in a sleek, user-friendly design The EYE MINI LITE user manual is designed to assist you in better understanding your launch monitor, different set-up methods, installation, and operation. EYE MINI LITE USER MANUAL...
- Page 3 LITE UP YOUR GAME...
-
Page 4: Table Of Contents
Table of Contents What’s Included EYE MINI LITE Overview Aligning Your EYE MINI LITE Getting Setup Applying Club Stickers Safety Notice Support Appendix Data External Links EYE MINI LITE USER MANUAL... -
Page 5: What's Included
What’s Included Power Cable Ethernet Cable Club Sticker Tweezers Club Stickers (20 sheets) EYE MINI LITE EYE MINI LITE USER MANUAL... -
Page 6: Eye Mini Lite Overview

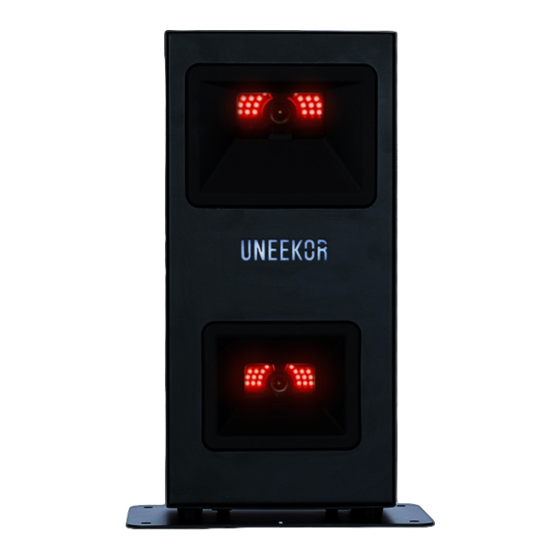

EYE MINI LITE Overiew Front Two High- Speed Cameras & Infrared Sensors EYE MINI LITE USER MANUAL... - Page 7 EYE MINI LITE Overview Rear Kensington Lock Slot Easily secure your EYE MINI Ethernet Port LITE Utilized to connect Power Button directly to PC Turns the via ethernet Device On/Off cable(CAT6) Power Port EYE MINI LITE USER MANUAL...
- Page 8 EYE MINI LITE Overview EYE MINI LITE USER MANUAL...
- Page 9 EYE MINI LITE Overview EYE MINI LITE USER MANUAL...
-
Page 10: Aligning Your Eye Mini Lite
Aligning Your E YE MINI LITE TARGET ALIGNMENT To ensure proper measurements for both swing path and club data, please ensure EYE MINI LITE is setup and aligned parallel to your target line. DO NOT ALIGN EYE MINI LITE directly with your target. - Page 11 Aligning Your E YE MINI LITE Ensure EYE MINI LITE is level with the hitting area. EYE MINI LITE USER MANUAL...
- Page 12 Aligning Your E YE MINI LITE While EYE MINI LITE has a sensor that measures inclination for small adjustments, it is recommended you setup EYE MINI LITE on a level and secure surface. EYE MINI LITE USER MANUAL...
-
Page 13: Getting Setup
Uneekor Launcher.exe For any assistance using Uneekor Launcher, please reference the guide below. 3. Open Uneekor Launcher on your PC and go to the “Install” tab on the left-hand side and select EYE MINI LITE, then continue. Select EYE MINI LITE from the list of options. Follow the step-by-step instructions on the Uneekor Launcher window to set up your EYE MINI LITE. - Page 14 Getting Setup Step 1 Connect both the provided power cable and ethernet cable to your EYE MINI LITE and click Continue to follow the steps in the installation wizard. EYE MINI LITE USER MANUAL...
- Page 15 Continue to move to Step 3. Step 3 Next you will be prompted to register your EYE MINI LITE to your Uneekor account. Please click “Register to your account” EYE MINI LITE USER MANUAL...
- Page 16 Getting Setup Step 4 Select your licenses, it’s recommended to hit Select All, then click the Activate button. Once activated, you will be able to click the Continue button to move on to Step 5. EYE MINI LITE USER MANUAL...
- Page 17 In these examples, you can see EYE MINI LITE is NOT aligned correctly, as the target line is neither perpendicular to the hitting screen nor parallel with the hitting zone.
- Page 18 “Continue” to go to the last step. You are now done with the installation process. Please navigate to the “Start” tab to install your VIEW software, Third-party Connector, and REFINE / REFINE+ (if included with your purchase). EYE MINI LITE USER MANUAL...
-
Page 19: Applying Club Stickers
Applying Club Stickers *Club stickers are not required to use EYE MINI LITE; however applying club stickers allows EYE MINI LITE to read the club face and interpret club data. EML utilizes a single club sticker. To apply club stickers, please follow below. - Page 20 For woods and hybrids that have 5 grooves, the club sticker is placed 1 inch in from the toe and level with the 3rd groove. *If the club sticker is not applied, club data will not be provided EYE MINI LITE USER MANUAL...
-
Page 21: Safety Notice
MINI LITE in a cool and dry environment. Ensure the temperature of the storage space is no colder than 20-degrees Fahrenheit and no warmer than 110-degrees Fahrenheit. **DO NOT leave your EYE MINI LITE in cold or hot temperatures for extended periods of time.** EYE MINI LITE USER MANUAL... - Page 22 4. DO NOT use this device in environments where high humidity, smoke, or dust is present. 5. DO NOT look directly into the infrared cameras when the device is turned EYE MINI LITE USER MANUAL...
-
Page 23: Support
Support For any comprehensive support please contact our Support Team Email: Support @Uneekor.com To schedule an appointment with support, visit our website Support | Uneekor EYE MINI LITE USER MANUAL... -
Page 24: Appendix
Pace at which ball is traveling when it leaves the club face after impact Back/Side Spin Rotations of the ball either left, right, or backwards Side Angle Degree angle, left or right, of ball when leaving club face left or right EYE MINI LITE USER MANUAL... - Page 25 Appendix Side Distance Distance of ball, left or right relative to starting point of shot Launch Angle Vertical angle of ball after leaving club face Carry Distance Total distance ball traveled in the air EYE MINI LITE USER MANUAL...
- Page 26 The in to out, or out to in movement of the club head’s geometric center at the center at the time of impact. Club Path is the direction (right or left) the club head is moving at impact and is measured relative to the target line EYE MINI LITE USER MANUAL...
-
Page 27: External Links
External Links Launcher Guide My.Uneekor.com Uneekor Support Launcher Download Link EYE MINI LITE USER MANUAL... - Page 28 MASTER YOUR PASSION UNEEKOR, INC. 15770 LAGUNA CANYON RD SUITE 100 IRVINE, CA 92618 TEL: 1-(888) 262-6498 SALES@UNEEKOR.COM SUPPORT@UNEEKOR.COM...
