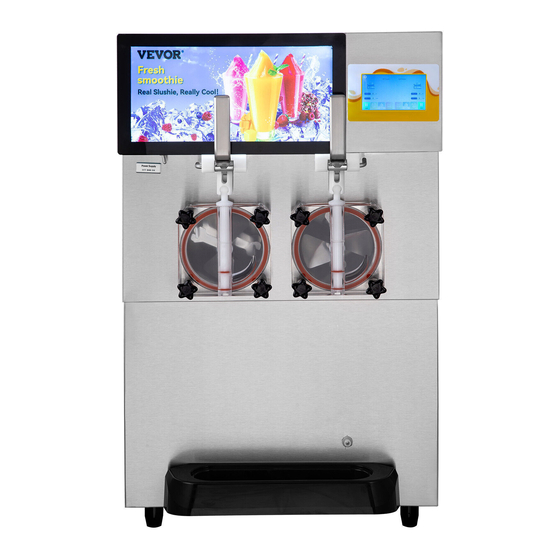

Commercial slush machine
Hide thumbs

Advertisement

Table of Contents

COMMERCIAL SLUSH MACHINE SERIES
PRODUCT INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XRJF-21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VEVOR XRJF-21

Summary of Contents for VEVOR XRJF-21

  • Page 1 COMMERCIAL SLUSH MACHINE SERIES PRODUCT INSTRUCTION MANUAL...
  • Page 2 This is the original instruction,Please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is any technology or...

  • Page 3: Table Of Contents

    Content 1. Safety Instructions .................................03 2. Installation Instructions for The Whole Machine......................06 3. Names of Each Part.................................07 4. Product Specifications................................08 5. Operating Instructions................................08 6. Out-of-Material Alarm Function............................11 7. Slush Production..................................12 8. Simple Cleaning..................................13 9. Cleaning & Maintenance................................13 10. Cleaning Method of Parts..............................14 11.

  • Page 4: Safety Instructions

    Safety Instructions Dear user, Hello! Thank you for using our products, in order for you to better read this manual and use this product, and to prevent personal injury and object damage accidents, please be sure to read carefully and comply with the following symbols in this manual. Behavior or action If the operation is The behavior or...
  • Page 5 When there is a leakage of flammable gases such as gas, the valve of the gas leakage should be closed immediately, and then the doors and windows should be opened, and the plug of elec- trical devices such as the slushy machines should not be unplugged or plugged. Please install a leakage off circuit protector before use to ensure personal safety and safe use of the product.
  • Page 6 This appliance contains combustible blowing agent, beware of fire, (the product has the mark of "beware of fire"). When there is an abnormality in the product, it must be repaired by relevant qualified personnel and institutions. This machine is not intended for use by persons with frailty, children, retardation, or mental disorders, except under the guidance or assistance of a person responsible for safety.

  • Page 7: Installation Instructions For The Whole Machine

    Installation Instructions for The Whole Machine Installation of Slushy Machine 1. Remove all packaging components. 2. Check if the machine is damaged during transportation, and then remove the attachments. 3. This series of slushy machine should be placed in a clean place with air circulation, not suitable for open air, not suitable for direct sunlight and rain, nor can it be placed near the heat source.

  • Page 8: Names Of Each Part

    Pre-boot Inspection 1. Is the slushy machine placed horizontally? 2. Is there any problem with the power outlet? 3. Whether the access to the power supply is consistent with the one marked on the machine nameplate. Proper Operation When Using 1.

  • Page 9: Product Specifications

    Discharge Valve Assembly Agitator Components Stem Stem O-ring Discharge valve Discharge valve cap Flared seals Scraper Outlet D-ring Stirrer Product Specifications Model XRJF-21 Refrigerating Capacity 24-36L/H Climate Type N/SN Refrigerating R410/650g Input Power 1800W Rated Voltage AC120V 60Hz Foam Material...
  • Page 10 Setting button Left tank Current temperature Current temperature of right tank Current temperature of Current temperature of left freezing cylinder right freezing cylinder Current forming Current percentage of percentage of right left cylinder forming cylinder Number of feeding Numbers of feeding cups of left cylinder cups of right cylinder Left stop button...
  • Page 11 Fault Alarm Interface On the setting interface, press "Fault Query" on the touch screen to enter the fault query mode. Displays an alarm interface when a fault occurs during machine operation. 55 Low speed alarm: 220V machine motor speed is lower than 130 rpm to stop the alarm to prevent the motor from being damaged by excessive force.

  • Page 12: Out-Of-Material Alarm Function

    System 1 (left cylinder) parameter setting interface Slush gear: 1-8 gears are adjustable, press "plus" or "minus" to adjust the gear, The default is gear 3. The higher the gear, the harder the smoothie; and the lower the gear, the smoother you make is softer.

  • Page 13: Slush Production

    Slush Production 1.Raw Material Preparation According to the manufacturer's operating instructions, dilute the concen- trate with water and stir in a suitable container. The mixture contains sugars , the amount of which should be kept between 13%-18%. Lower and higher concentrations can be destroyed agitators and stirring motors.

  • Page 14: Simple Cleaning

    Simple Cleaning 1.Release all the ingredients 2.Power off the machine 3.Fill the material tank with an appropriate amount of food detergent to prepare hot water that does not exceed 50 ° C, close then open the tank cover and pour the hot water into the tank.

  • Page 15: Cleaning Method Of Parts

    Cleaning Method of Parts When using it for the first time or not using it for a long time, please clean the parts before use. Use food detergent and cleaning brushes to clean all parts that have been disassembled Hopper cover Valve pole O seals for valve pole Handle...

  • Page 16: The Assembly Method Of The Component

    The Assembly Method of The Component Assembly of The Valve Stem Valve pole 1.Install the O-ring on the valve stem and assemble it according to the diagram. 2.After the O-ring is installed, the surface is greased. O seals for valve pole Assembly of Agitator Components 1.The flared sealing ring is lubricated at both ends.
  • Page 17 Mounting of The Handle Handle Insert the handle socket into the lever pin, then insert the handle pin into the lever holder, and then align the handle Handle fixing pin pin hole with the vel pin, and then the vel pin goes directly Tie rod holder through the handle pin hole.
  • Page 18 Cleaning And Maintenance of The Enclosure Be sure to unplug the power supply and turn off the water source before cleaning. Do not plug the power supply with wet hands, or there will be a risk of electric shock. Wipe the surface of the slushy machine shell by using a soft towel or sponge dipped in warm water (a diluted neutral detergent is available).

  • Page 19: Troubleshooting Instructions

    Troubleshooting Instructions The slushy machine you receive is a mechatronic professional equipment that integrates computer program control, mechanical transmission and efficient refrigeration system! You must arrange for your own personnel to be responsible for the operation and maintenance of this equipment, at the same time, please understand the installation and maintenance requirements of this equipment in detail when purchasing the machine, and receive professional training before use!!! (Very important) For the violation of the installation, use and maintenance requirements of the machine caused by...
  • Page 20 The cleaning noise will gradually reduce after adding raw materials The machine is noisy when pressing the cleaning key The ground on which the machine is placed is not horizontal, adjust by yourself The noise will be reduced gradually after adding material when there is a lack of material.

  • Page 21: Circuit Diagram

    Tank freezes Proper downward adjustment of gear Motor does not rotate or motor idling Call the company's phone number to be speed is slow handled by the company's professional staff Machine 55 alarm Call the company's phone number to be Sensor failure or loose sensor linkage handled by the company's professional staff Slow motor speed...

  • Page 22: Environmental List

    Environmental List Non-environmentally friendly substances or no substances Hexavalent Polybrominated Polybrominated lead mercury cadmium The part name chromium biphenyls diphenyl ethers Fans Motor evaporator : Indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirements specified in GB/T 26572. : Indicates that the content of the hazardous substance in at least one of the homogeneous materials of the component exceeds the limit requirements specified in GB/T 26572.
  • Page 23 Address: 2 Holywell Lane, London, England, EC2A 3ET EUREP UK LTD UK REP UNIT 2264, 100 OCK STREET, ABINGDON OXFORDSHIRE ENGLAND OX14 5DH Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris EUREP GmbH Unterlettenweg 1a, 85051 Ingolstadt, Germany E-mail: CustomerService@vevor.com...
  • Page 24 E-mail: CustomerService@vevor.com...
