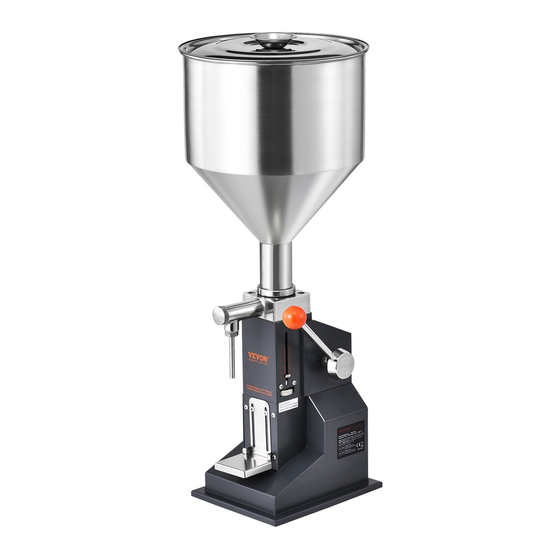

- Page 1 M110 Manual Filling Machine FILLING MACHINE Model: M110 User Manual PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATION...
- Page 2 WARNING! Read the following instruc�ons before using the product! These instruc�ons below are for your safety. Please read through them thoroughly before use and retain them for future reference. Familiarize yourself with them to reduce hazards like personal injuries and damage to property. TABLE OF CONTENTS Introdc�ons Note Before Use...
- Page 3 INTRODCTIONS M110 maual filling machine is specially designed for small and medium enterpris- The machine has simple and reasonable structure, convenient manual opera�on, without any energy. Can only be used for liquid paste with good liquidity. It is suitable for medicine, daily chemical, food, pes�cide and other industries.
- Page 4 INTERNAL STRUCTURE Hopper Screw Cap Cone Cover Piston Ring Piston Rod Measure Jar Fastener Jar Base Seal Ring Seal Receptacle Rack Upper Cover Plate Sector Gear Abscissa Axis Machine Body 0 Ring Valve Core Spring 16 17 18 Outlet Screw 0 Ring Handle Nozzle...
- Page 5 HOW TO USE 1. CLEAN THE MACHINE BEFORE USE We recommend that you clean the machine before using it. Remove The Screw Unloading Hopper Clean the Machine Hold the base in place, and turn the hopper counterclockwise Clean the parts of the hopper and discharge nozzle that touch the filling 2.
- Page 6 COMMON PROBLEMS & SOLUTIONS （Internal Structure ） 1, THE DISCHARGE NOZZLE IS LEAKING If you fill the hopper with water and the machine leaks You need to check the seal ring Is due to the loose seal as shown in the picture below①. Please clean or replace this O ring The o-ring of the valve core is damaged Replace the o-ring (16.17.18)
- Page 7 4, THE DISCHARGE QUANTITY IS NOT ACCURATE Debris between cone cover (3) and piston (4) s�cks to the sealing ring, Causing material backflow and affec�ng accuracy Open and clean Piston ring (4) overwears, loses tension and fric�on Replace piston rings Paste product viscosity is too large, poor liquidity Slow down the li�ing mo�on of the handle（23）...
- Page 8 Please feel free to contact us if there is any missing or damage in the packing list we are a company specialized in producing and developing packaging machinery and equipment.
