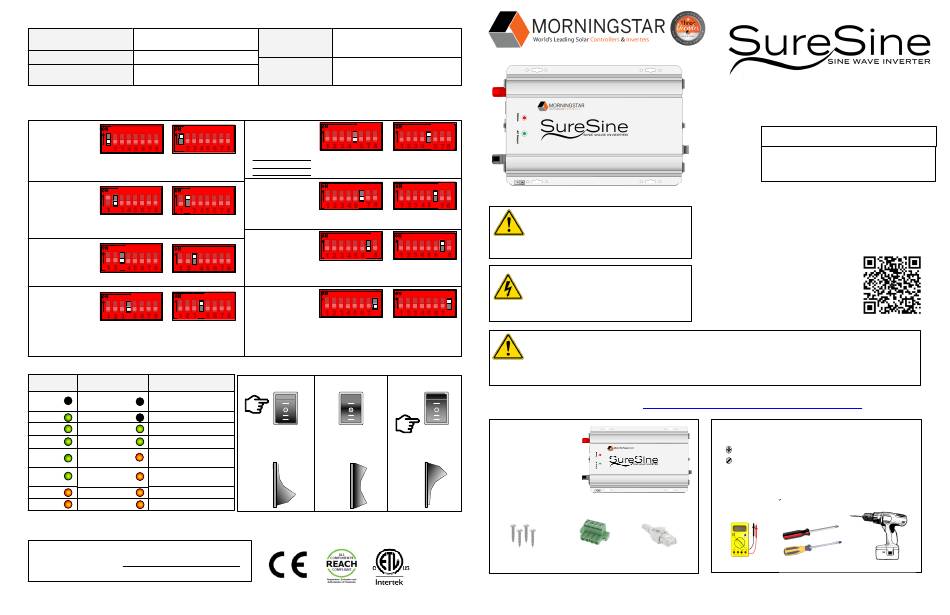

Morningstar SureSine 150W Quick Start Manual

Specifications*:

Rated Power 150 W / 300 W / 700 W
Battery Voltage 12 Vdc, 24 Vdc, or 48 Vdc
120 Vac / 60 Hz, 127 Vac / 60 Hz,
AC Output Voltage (Vac) /
Frequency
or 230 Vac / 50 Hz
*Partial Specification List only. For the complete list of specifications, see the SureSine Installation and Operation's Manual.
DIP Switch Settings (Default Settings = OFF):
DIP 1:
OPERATIONAL
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
CONTROL
DIP 1 ON =
DIP 1 OFF = Switch
Digital Control
Control
DIP 2:
ALARM
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
SOUND
DIP 2 OFF = Alarm
DIP 2 ON = Alarm
is Disabled is Enabled
DIP 3:
NOT USED
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
ON Position is Disabled
Default is OFF
DIP 4:
LOW VOLTAGE
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
DISCONNECT
(LVD)
DIP 4 OFF = Custom
DIP 4 ON = Presets
LVD Default Setting (DIP Switch 4 OFF) = 11.8 V, 23.6 V, or 47.2 V

LED Indications:

STATUS LED 1 AC Output LED Operation or State
No power or Battery
OFF OFF
below 9.5 V
GREEN OFF AC Output OFF
GREEN GREEN AC Output ON
GREEN GREEN (BLINK) 2 AC Standby Mode
Low Voltage Disconnect
GREEN RED (BLINK) 2
(LVD) Warning
Low Voltage Disconnect
GREEN RED
(LVD)
RED RED (BLINK) 2 Recoveragle Fault
RED RED Critical Fault
1 The Status LED flickers ON very briefly when the LED is OFF. The Status LED flickers OFF
very briefly when the LED is GREEN or RED solid. The "heartbeat" occurs every 5 seconds.
Contact Information:
Technical Support: morningstarcorp.com/support
Phone: 1-215-321-4457
4
© 2022 Morningstar Corporation. All Rights Reserved.
Communication Remote Switch,
Options Bluetooth, EIA-485, MS-CAN
AC Interface North American Type-B Outlet or
Options UNI Universal AC Outlet
DIP 5:
LVD PRESETS
1 2 3 4 5 6 7 8
• For 12 Vdc Systems: DIP 5 OFF = 10.5 V DIP 5 ON = 11.5 V
• For 24 Vdc Systems: DIP 5 OFF = 21.0 V DIP 5 ON = 23.0 V
• For 48 Vdc Systems: DIP 5 OFF = 42.0 V DIP 5 ON = 46.0 V
DIP 6:
STANDBY
1 2 3 4 5 6 7 8
MODE
DIP 6 OFF =
AC Output Always ON
DIP 7:
ETHERNET
1 2 3 4 5 6 7 8
SECURITY
DIP 7 OFF = Ethernet
Write Disabled
700 W Models ONLY. NOT USED in 150 W or 300 W Models.
DIP 8:
BLUETOOTH
1 2 3 4 5 6 7 8
COMMUNI-
DIP 8 OFF =
CATIONS
Bluetooth Disabled
DIP Switch 8 must be set before connecting DC power.
If changed during operation, a power cycle is required.
AC Output Mode Switch:
ON OFF
(Front View) (Front View)
Put the switch in
Press the |
a neutral position
I
I
O
O
(Side View) (Side View)
3
II
II
3
0.5 Hz. Rate
2
3
See the SureSine Inverter Installation and
Operations Manual for details.
5024876
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
DIP 6 ON =
IMPORTANT:
AC Output OFF < 8 W
The SureSine Inverter is designed for
converting DC power to AC power only.
It will not charge batteries.
1 2 3 4 5 6 7 8
DIP 7 ON = Ethernet
WARNING: Hazardous Voltage
Write Enabled
The SureSine Inverter must be installed by a
qualified technician in accordance with the
electrical regulations of the country of
1 2 3 4 5 6 7 8
installation.
DIP 8 ON =
Bluetooth Enabled
CAUTION: This guide must be used with the full product manual that includes important
information. Carefully read the SureSine Inverter product manual for all specifications,
safety, regulatory and warranty information, and for all required instructions on
installation procedures, configuration, and operation.
REMOTE
Warranty Registration:
(Front View)
In the Box:
Press the | |
I
O
(Side View)
II
#10 Mounting
Screws (x4) Terminal Connector
MS-003785 v1
Quick Start Guide
Scan QR Code to go directly
to the SureSine Inverter
Installation Manual and
warranty information online.
https://www.morningstarcorp.com/product-registration/
Tools Required:
— #2 Philips Screwdriver
— 3/16 (5 mm) & 1/8" (3.8 mm) Flathead
Screwdriver
— Drill with a 1/8" (3.8 mm) bit
— Multimeter
— Crimping Tool

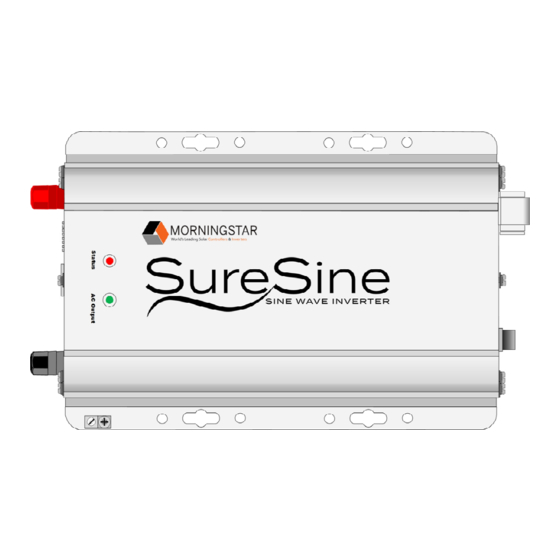

SureSine Inverter
— Wrench
4-Pin Pluggable Terminal Resistor
SureSine Inverter Models:
150 W, 300 W & 700 W Models
(Factory-wired Versions ONLY)
For use with 12 Vdc, 24 Vdc,
or 48 Vdc Systems
1
