Summary of Contents for Genvex OPTIMA 250
- Page 1 USER MANUAL OPTIMA 250– Print ES960C GES ENERGY 1, GES ENERGY S/M, ENERGY ECO 180, GE ENERGY 1/2/3...
-
Page 2: Table Of Contents
5.8 Service menu................11 5.9 Schedule for week program............ 14 5.10 Schedule for set points ............15 6. Function ................16 6.1 Controlling Optima 250 ............16 6.2 Extra capacity ................. 16 6.3 Operating reliability ..............16 7. Maintenance ............... 17 7.1 Unit .................. -
Page 3: Mounting Design
1. Mounting Design A low-current cable 4 x 0.25 mm must be attached between the unit and the control panel. 50 m is the maximum cable length. The voltage drop for cable 1.1 Installation of the control panel lengths over 50 m is too high and can result in unreliable operation. -

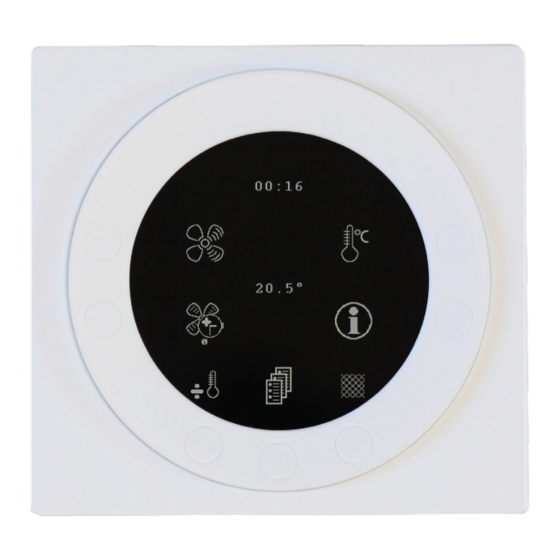

Page 4: Control Panel
SD card. However, the help texts will not appear in the display and the data logs will not be saved. 4: In order for a computer to read the data logs, the Genvex data logger program must be installed. 3. Installation Please see the installation guide. -
Page 5: Operating
Optima 250 Use this function to enter the main menu and access the All Genvex ventilation units of the types GE Energy and sub-items Date and time, Calendar, User menu, Display, GES Energy for dwellings are delivered with the Optima Info operation and Service menu. -
Page 6: Main Menu
5.2 Main menu 05 Month Enter the current month here. There is a “Book” symbol at the bottom centre of the screen with the daily operating options. Press this key to 06 Year enter the main menu. Enter the current year here. Weekday Month Date and time... -
Page 7: Calendar
5.4 Calendar 5.5 User menu Use this function to configure the setting of each day of 01 - Temperature the week. Each day can be configured to run with different Set the desired temperature between 10 and 30 °C. fan speeds as required. You can copy the configuration In item 19 of the Service menu you can choose between from one day to another. -
Page 8: Display Menu
This menu shows which Optima is fitted on the system and its version number: 08 - Lightness night Example: Optima 250 UK D: 3.1 C: 1.0 Use this to enter the minimum brightness level for the D represents the version number of the control panel. - Page 9 Enter the selected password here and use this also in System in operation item 12 to enter items 13 to 18. If you forget your pass- word, contact Genvex Service department for assistance. Help relay 9 To change the password, enter a new password in this item and press “Enter”.
-
Page 10: Info Menu
Current list of alarms 5.8 Service menu Press “Arrow down” again to display the current alarms. An alarm it is activated if ON appears beside it. At ON Use this function to configure the following sub-menu items. there is an alarm, which can also be seen on the screen saver and the display for daily operating options. - Page 11 16 - Fine tuning (T2) GE Energy 1/2/3 with modulating bypass: If the tempera- ture rises 0.5 °C above the temperature set in User Menu It is possible to fine tune the room sensor of the control item 1, the bypass damper will begin to open. The bypass panel so the correct current room temperature is displayed.
- Page 12 27 - Help funktion 32 - Humidity max. temperature Setting the end point for outside temperature-compensati- This function can be used for the following: on (T3), see the X-axis on the graph. Setpoint Function Setting option: 5-25 °C. The relay is off. Factory setting: 15 °C.
- Page 13 Outside temperature compensation curve S. 32 100% Ex. 2 Ex. 1 Pre- setting 0 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Fresh air temp.
-
Page 14: Schedule For Week Program
5.9 Schedule for week program Monday Tuesday Wednesday Hours Minutes Speed Red. T2 Hours Minutes Speed Red. T2 Hours Minutes Speed Red. T2 Thursday Friday Saturday Hours Minutes Speed Red. T2 Hours Minutes Speed Red. T2 Hours Minutes Speed Red. T2 Sunday Hours Minutes... -
Page 15: Schedule For Set Points
5.10 Schedule for set points Item Headline Factory setting Configuration area Date Date Date Date (4.5) 1 Temperature 21 °C 10 - 30 °C Preheating ON / OFF After heating ON / OFF Timer levels 3 and 4 ON / OFF Change filter 3 months 1 - 6 months... -
Page 16: Function
6. Function same way as an electrical after heater. 6.3 Operating reliability 6.1 Controlling Optima 250 Safety thermostat Regulation of room temperature If an error occurs on an electrical heater, the safety ther- There are 3 methods of regulation – see service menu mostat will disconnect. -
Page 17: Maintenance
7. Maintenance water); only careful dust removal from air intake surfaces with a household vacuum cleaner. Follow the following instructions to achieve optimal Fans: performance: Inspect the two fan wheels for dirt each year. If they are dirty, they can be washed using a brush, bottle cleaner, Before opening the unit, turn off the power/ etc. -
Page 18: Troubleshooting
The installer from whom you have bought the system or As an additional security there is a built-in thermal cut-out, the Genvex service department (+45 7353 2765). which disengages if the temperature exceeds 110 °C. Re- engaging must be done manually. - Page 20 Genvex –The original Danish Ventilation System Genvex is a genuine Danish original. We invented the ventilation system more than 40 years ago, and we are still ahead of the pack when it comes to development and production of the strongest and most durable ventilation system.
