- Page 1 User ManUal Optima 250 DESIGN Version V1.02 - 0209...
-
Page 2: Table Of Contents
Optima 250 Table of contents Page 1. Control panel ............3 2. Installation..............4 2.1 Installation of the control panel ........4 2.2 Mounting ..............4 3. Start-up ..............5 4. Operating..............6 4.1 Operating and changing of data in the operating menu............6 4.2 Daily operating options ..........7 4.3 Main menu ...............8 4.4 Schedule for week menu ........15 4.5 Schedule for set-points ..........16... -

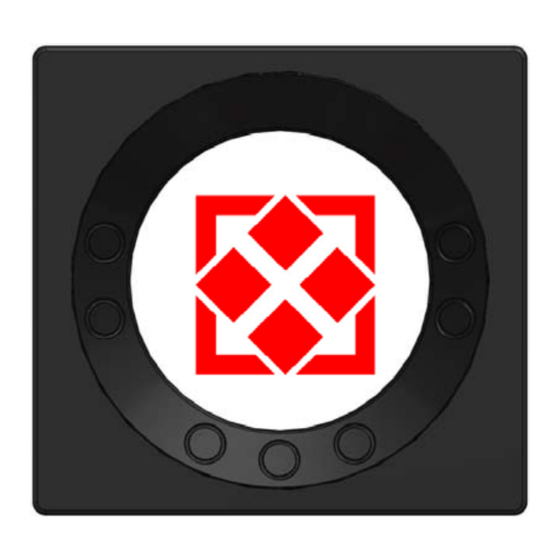

Page 3: Control Panel
SD-card. However, the help texts will not appear on the screen and the data logs will not be saved. 4: In order for a computer to read the data logs, it must have the Genvex data logger program installed. -
Page 4: Installation
Optima 250 2. Installation At the bottom of the control panel there is access to: 2.1 Installation of the control panel A: Terminal board. Connection to main circuit board B: SD card The control panel is intended for hanging on a wall. The C: Room sensor control panel must be positioned in the home at a height D: Light sensor... -
Page 5: Start-Up
Optima 250 3. Start-up The first time the device is started, the control panel display will show: “Choose language”. Click “Next” to switch between Danish, English, German and French. Press “Enter” when the desired language is shown in the display. The control panel will now read the current program version in the selected language according to the IC circuit’s version on the main circuit board in the device. -
Page 6: Operating
Use the button beside the after-heat symbol to change between + or ÷. If the symbol is set at + and the device All Genvex ventilation units are of type GE/S Energy, is equipped with an after-heat surface, the after-heat will GEU or ST for houses and are delivered with Optima 250 commence as required. -
Page 7: Daily Operating Options
Optima 250 4.2 Daily operation options level of the screen saver will automatically regulate between the entered values in items 09 and 10 and, when operating, between the The menu item with the Display symbol entered values in items 07 and 08. Both will depend on how dark the room is. -
Page 8: Main Menu
Enter the selected password here and use this also in item 12 to enter items 13 to 18. If you forget your password, contact Genvex Service department for assistance. To change the password, enter a new password in this item and press enter. - Page 9 Optima 250 May = 5, enter – 2.0º, the device will aim at 19ºC. If the June = 6, speed has been changed manually on the July = 7, button under daily operation, the program will August = 8, revert to the day program at the next change- September = 9, time point is passed.
- Page 10 Optima 250 fitted, this set-point should be configured manually in the Language spring and in the autumn. This function can be used to choose between the If none of the help functions in item 27 in the service languages Danish, German, English and French. menu are used, help function 4 can be used to control extra cooling.
- Page 11 Optima 250 Default reset Supply air in % Use this function to return all settings to the factory Extract air in % default. Bypass valve in % Water valve in % Safety menu This function can be used to configure and change the • Press the Arrow down again to display the current safety level in the operating configuration in connection status of the operation relays:...
- Page 12 Optima 250 Relay 8 Device in operation (Speed 1-4) Item 14: Level 2 Extract air Relay 9 Help function. The fan speed is adjusted until the same air volume is achieved as the supply in level 2. • Press Exit to return to the main menu. The default setting is 55%.
- Page 13 Optima 250 Item 20: Pre-heat supply volume until the configured value is reached. The If pre-heat is set to ON in item 2 in the user menu, function is only active if the set-point is greater than 0°C. the set-point should be set at the required fresh air The set-point can be configured to between 0 and 10ºC.
- Page 14 Optima 250 T9 measures: 5°C 21°C (+1°C) Valve Valves Valve switches switches switches to earth to fresh to earth heat air from heat outside Item 28: Device stop It is possible to ensure that the device cannot stop by using the button for the icon: •...
-
Page 15: Schedule For Week Menu
Optima 250 4.4 Schedule for weekly program Monday Tuesday Wednesday Hours Speed Red. Hours Speed Red. Hours Speed Red. nutes nutes nutes Thursday Friday Saturday Hours Speed Red. Hours Speed Red. Hours Speed Red. nutes nutes nutes Sunday Hours Minutes Speed Red. -
Page 16: Schedule For Set-Points
Optima 250 4.5 Schedule for set points Headline Default: Configuration area: Dato: Dato: Dato: Dato: Temperature 10 - 30 Pre-heat ON / OFF After-heat ON / OFF Timer levels 3 and 4 ON / OFF Change filter 1 - 6 Level 1 supply air Level 2 supply air Level 3 supply air... -
Page 17: Function
Optima 250 5. Function 5.3 Operating reliability 5.1 Control system Optima 250 Safety thermostat: If an error occurs on an electrical heat surface, the safety thermostat will disconnect. To re-connect the safety 1. Room regulation: thermostat, press in the small button in the middle of the The room temperature is controlled by the room sensor thermostat. -
Page 18: Connection To Pc
The data logger software is for configuring and monitoring be a page number in the bottom corners of the logging Genvex devices. The hardware part of the data logger area. Change the page by clicking on the red arrow. is required if you want a connection to the device. The... - Page 19 Optima 250 Zoom – To make the picture bigger or smaller password. The password is not supplied. View average – To view an average of the graphs in the selected window. Clock/week program in control system – Opens the box below.
-
Page 20: Direct Data Logging
Optima 250 Folders for the log files can also be selected, e.g. it is recommended to create a folder under “Documents” got logs and get the program to suggest this folder as default. Generally: Note that: • The loggings are not connected to the set-up, i.e. although the solution is taken from either the hard disc or from the control panel, it may not necessarily match the selected control system. -
Page 21: Maintenance
When repairing or dismantling the device, statutory If you are not able to maintain your device yourself, environmental regulations must be observed regarding arrange a service agreement with Genvex’ service recycling and destruction of various materials. department. Contact Genvex’ service department if any problems develop with the device. -
Page 22: Dismantling/Decommissioning The Device
Optima 250 7.3 Dismantling/ decommissioning the device The following must be performed: The power supply, i.e. the electric cables, must be disconnected from the device. Disconnect the condensation outlet and power cables to any after-heat/ pre-heat. Disconnect wires for the panel and remove channels. -
Page 23: Troubleshooting
No light in the control panel, even when you press on the button. If the error is not one of those listed above, please Error: contact your installer or the GENVEX customer centre. • The fuse on the terminal board has blown and there is no power in the device. - Page 24 Fax: +351 229 065 125 E-Mail: paulo.neto@iberterm.com Presented by: Web: www.iberterm.com Slovenia Pichler & CO d.o.o. 2000 Maribor Tel.: +386/ (0) 2/460 13 50 Fax: +386/ (0) 2/460 13 55 E-Mail: pichler@pichler-co.si Published by Genvex A/S, Sverigesvej 6, DK-6100 Haderslev www.genvex.dk...
