- Page 1 User ManUal Optima 310 DESIGN Version V1.02 - 0209...
-
Page 2: Table Of Contents
Optima 310 Table of contents Page 1. Control panel ............3 2. Installation..............4 2.1 Installation of the control panel ........4 2.2 Mounting ..............4 3. Start-up ..............5 4. Operating..............6 4.1 Operating and changing of data in the operating menu............6 4.2 Daily operating options ..........7 4.3 Main menu ...............8 4.4 Schedule for week menu ........16 4.5 Schedule for defrosting..........16... -

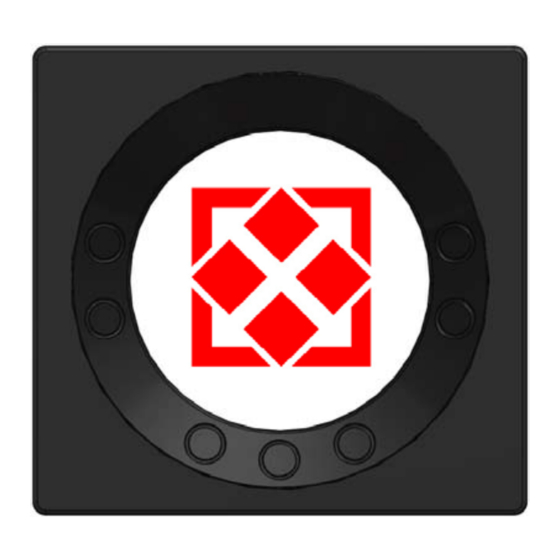

Page 3: Control Panel
SD-card. However, the help texts will not appear on the screen and the data logs will not be saved. 4: In order for a computer to read the data logs, it must have the Genvex data logger program installed. -
Page 4: Installation
Optima 310 2. Installation At the bottom of the control panel there is access to: A: Terminal board. Connection to main circuit board 2.1 Installation of the control panel B: SD card C: Room sensor The control panel is intended for hanging on a wall. The D: Light sensor control panel must be positioned in the home at a height E: USB port... -
Page 5: Start-Up
Optima 310 3. Start-up The first time the device is started, the control panel display will show: “Choose language”. Click “Next” to switch between Danish, English, German and French. Press “Enter” when the desired language is shown in the display. The control panel will now read the current program version in the selected language according to the IC circuit’s version on the main circuit board in the device. -
Page 6: Operating
Use the button beside the after-heat symbol to change All Genvex combined ventilation units and domestic hot between ON or OFF. If the symbol is set at ON and the water pumps types Combi for houses and are delivered... -
Page 7: Daily Operating Options
Optima 310 4.2 Daily operation options regulate between the entered values in items 09 and 10 and, when operating, between the entered values in items 07 and 08. Both will The menu item with the Display symbol depend on how dark the room is. This menu is divided into 12 menu items Lightness day. -
Page 8: Main Menu
Enter the selected password here and use this also in item 12 to enter items 13 to 18. If Use this function to configure and change the date. you forget your password, contact Genvex Service department for assistance. To change the password, enter a new password in this item and press enter. - Page 9 Optima 310 March = 3, temperature should be lowered. Example: April = 4, If the temperature is set to 21ºC and you then May = 5, enter – 2.0º, the device will aim at 19ºC. If the June = 6, speed has been changed manually on the July = 7, button under daily operation, the program will...
- Page 10 Optima 310 Item 3: Electric cartridge ON/OFF languages Danish, German, English and French. By configuring the set-point to ON, the electric cartridge will engage as required. If the set-point is set to OFF, the Programme info electric cartridge will not engage, even if required. When This function can be used to configure and change how the fresh air temperature is below 0°C, it is recommended the information about the program is displayed.
- Page 11 Optima 310 Safety menu Supply air in % This function can be used to configure and change the Extract air in % safety level in the operating configuration in connection Bypass valve in % with child safety device. It is possible to add a password Water valve in % for access to changes in the various set-points. •...
- Page 12 Optima 310 installation has run at the various speeds and how Item 12: Levels 3 and 4 Supply air many hours the relays have been connected (ON): Level 3 is the highest speed that can be configured. It is used e.g. if there are a number of guests or there is a lot Total in operation: of activity in the kitchen.
- Page 13 Optima 310 to OFF and the device will continue to operate. minutes. The default setting is OFF. Item 24: Minimum air volume Item 19: Electric cartridge. In order to achieve optimal performance, the device’s air If item 3 is set to On and the button on the operating volumes correspond to at least the air volumes contained panel for the electric cartridge is activated, you can in the data sheet for the device in question.
- Page 14 Optima 310 than the configured value in item 37 (water frost is not recommended to change the default setting without temperature, typically set at 5°C). expert advice. The outdoor temperature, sensor T9, is more than The default setting is 0.4°C. 1°C above the configured temperature in item 1 and 1°C above the current room temperature. Item 31: Constant ON If the house’s other heating system is not connected Example: A temperature of 5°C is selected in item 37 and to the heating pump system, the house’s other heating...
- Page 15 Optima 310 set-point can be configured to between -15°C and 0°C. The default setting is -10°C. Item 35: Supply air volume When the set-point is ON in item 33, it is recommended to configure the reduced diffusion air volume to 20% lower the value configured in item 11. The default setting is 50%. Item 36: Extra help functions Extra help functions with relay 8 can be used for the following: •...
-
Page 16: Schedule For Week Menu
Optima 310 4.4 Schedule for weekly program Monday Tuesday Wednesday Hours Speed Red. Hours Speed Red. Hours Speed Red. nutes nutes nutes Thursday Friday Saturday Hours Speed Red. Hours Speed Red. Hours Speed Red. nutes nutes nutes Sunday 4.5 Schedule for defrosting Hours Minutes Speed Red. -
Page 17: Schedule For Set-Points
Optima 310 4.6 Schedule for set points Headline Default: Configuration area: Dato: Dato: Dato: Dato: Temperature 10 - 30 Service water 0 - 55 Electric cartridge ON/OFF ON / OFF Timer levels 3 and 4 ON / OFF Change filter 1 - 6 Level 1air supply Level 2 air supply... -
Page 18: Function
Optima 310 5. Function 5.2 Extra capacity Electric cartridge: If there is a greater requirement for heat than the Combi 5.1 Control system Optima 310 can supply, the electric cartridge can be configured to ON in the main menu with the shortcut key. When the electric cartridge is set to ON, sensor T7, which is fitted at the A Combi device is used to heat the service water and the centre of the container, will heat the upper half of the hot diffusion air to cover the house’s ventilation requirements water container to the configured temperature. -
Page 19: Connection To Pc
The data logger software is for configuring and monitoring be a page number in the bottom corners of the logging Genvex devices. The hardware part of the data logger area. Change the page by clicking on the red arrow. is required if you want a connection to the device. The... - Page 20 Optima 310 Zoom – To make the picture bigger or smaller of the image. Take care when changing these settings. The “Service menu” displayed is protected with a password. The password is not supplied. View average – To view an average of the graphs in the selected window.
-
Page 21: Direct Data Logging
Optima 310 Folders for the log files can also be selected, e.g. it is recommended to create a folder under “Documents” got logs and get the program to suggest this folder as default. Generally: Note that: The loggings are not connected to the set-up, i.e. although the solution is taken from either the hard disc or from the control panel, it may not necessarily match the selected control system. -
Page 22: Maintenance
Optima 310 7. Maintenance Fans: Inspect the fans every three years for dirt in the fan wheels. Remove the front cover from the device. Clean Follow the following instructions to achieve optimal the fans with a brush, a bottle cleaner or a paint brush. performance: Make sure that the counterbalancing weights on the fan wheels are not removed, as this will lead to disequilibrium... -
Page 23: Alarms
Optima 310 When the anode has been replaced, close the drain valve, activate the cold water supply, fill the container with water again and empty it of air. When the container is filled with water, the front cover can be replaced and the power can be reconnected. 7.3 Alarms Filter timer: The control system has a filter timer in order to ensure that the filters are changed and optimal performance is maintained. When the timer reaches the configured value, “change filter” will flash in the display until the filter has been changed. When the filter has been changed, the screen image for daily operations will return. Hold down the button for the filter symbol until the exclamation mark disappears and the device returns to normal running. -
Page 24: Troubleshooting
Optima 310 8. Troubleshooting The heat coil can only be reactivated when the temperature is below 90°C. To do this, turn off the power to the unit, screw of the front cover and screw off the The water pump is fitted with the following safety front cover on the front of the heating element. The reset equipment: button can now be pressed in. - Page 25 Optima 310 • The cooling surface is blocked with ice. • The control panel or control circuit board is defective. • Defective sensor.
- Page 26 Optima 310...
- Page 27 Optima 310...
- Page 28 Fax: +351 229 065 125 E-Mail: paulo.neto@iberterm.com Presented by: Web: www.iberterm.com Slovenia Pichler & CO d.o.o. 2000 Maribor Tel.: +386/ (0) 2/460 13 50 Fax: +386/ (0) 2/460 13 55 E-Mail: pichler@pichler-co.si Published by Genvex A/S, Sverigesvej 6, DK-6100 Haderslev www.genvex.dk...
