Mira Connect Integration Guide for
Crestron IV‑CAMA3 Series Camera
S Y S T E M S
Integrating a Crestron IV‑CAMA3 Series Camera with Mira Connect™
Crestron IV‑CAMA3 Series Cameras can be controlled by Mira Connect™, Aveo Systems' smart control appliance. Mira Connect
uses Sony's VISCA (Video System Control Architecture) camera protocol to control pan, tilt, zoom, and presets.

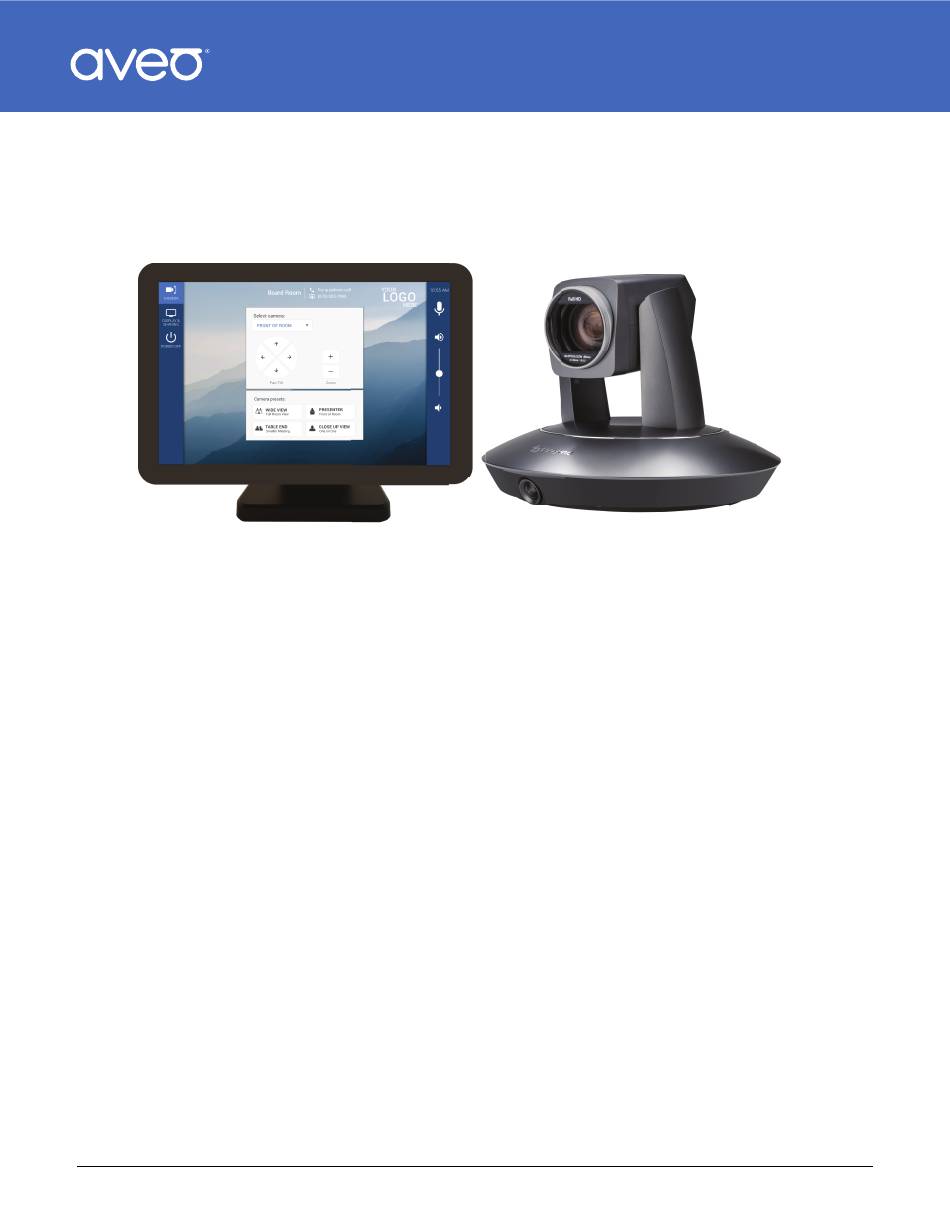

Figure 1:

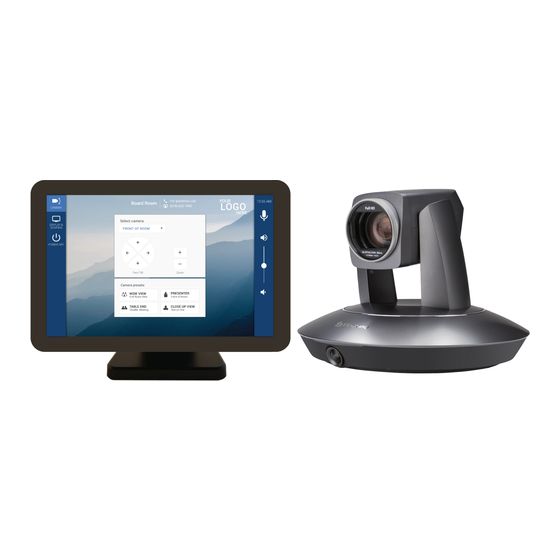

Mira Connect controls thousands of products, including Crestron IV‑CAMA3 Series Cameras.
Mira Connect supports camera pan, tilt, zoom, and tracking control, and saving and recalling camera presets.
Integration Steps
Step 1. Add the desired room to Mira Portal
To get started, create an organization, site, and room in
Mira Portal
if you don't already have a room. Follow the tutorial for
creating a room after creating a Mira Portal account. There is no cost to creating a Mira Portal account.
Next, pair a Mira Connect to the room or use the Preview Mira Connect in a web browser feature.
Aveo Systems, Inc. • 4455 Lower Roswell Road #681593 • Marietta, GA 30068
1
Copyright © Aveo Systems, Inc. All rights reserved.
Phone: +1.678.653.7090 • Email: sales@aveosystems.com •
aveosystems.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crestron IV-CAMA3 Series
Summary of Contents for Crestron IV-CAMA3 Series
- Page 1 Integrating a Crestron IV‑CAMA3 Series Camera with Mira Connect™ Crestron IV‑CAMA3 Series Cameras can be controlled by Mira Connect™, Aveo Systems’ smart control appliance. Mira Connect uses Sony’s VISCA (Video System Control Architecture) camera protocol to control pan, tilt, zoom, and presets.
- Page 2 Mira Connect Integration Guide for Crestron IV‑CAMA3 Series Camera S Y S T E M S Mira Portal HELP ALL ROOMS IN CALL ALERTS Organizations Sites Rooms Your Organization 1 Site Your Site 1 room Board Room Board Room Mira Connect...
- Page 3 Select the language, select the network connection, and receive a pairing code. Step 3. Add the Crestron IV‑CAMA3 Series Camera To integrate a Crestron IV‑CAMA3 Series Camera with Mira Connect, add a ‘Crestron IV‑CAMA3 Series Camera’ to the room in Mira Portal (https://mira.aveosystems.com).
- Page 4 Global Caché GC-100, iTach, Flex, Global Connect Figure 4: Click Add and select the Crestron IV‑CAMA3 Series Camera from the equipment list. Enter the IP address of the camera and the port number. Aveo Systems, Inc. • 4455 Lower Roswell Road #681593 • Marietta, GA 30068 Copyright ©...
- Page 5 5500 for a direct network connection or port 4999 when using a Global Caché IP2SL. If you don’t have an actual Crestron IV‑CAMA3 Series Camera while configuring Mira Connect, you can choose to simulate the Crestron IV‑CAMA3 Series Camera by checking ‘Simulate equipment’.
- Page 6 Firmware: 00 01 04 02 01 15 02 Figure 7: Successful connection to the Crestron IV‑CAMA3 Series Camera (left) and failed connection (right). Aveo Systems, Inc. • 4455 Lower Roswell Road #681593 • Marietta, GA 30068 Copyright © Aveo Systems, Inc. All rights reserved.
- Page 7 Mira Connect Integration Guide for Crestron IV‑CAMA3 Series Camera S Y S T E M S If Mira Connect cannot connect to the camera, a red warning icon will appear on the equipment list. • If Mira Connect cannot connect to the camera over the network, confirm the IP address of the camera and that Mira Connect is on the same network as the camera.
- Page 8 Label PRESENTER Descrip on (Op onal) Front of Room REMOVE SAVE POSITION Questions about Crestron IV-CAMA3 Series? CANCEL UPDATE EQUIPMENT See the step by step integration guide. Figure 8: Camera presets are added through Mira Portal. Camera Positioning Speed Control Mira Portal supports setting camera movement speeds for pan, tilt, and zoom both when the movement button is tapped and when it is held.
- Page 9 Pan Speed (Slow) * Tilt Speed (Slow) * Zoom Speed (Slow) * Invert Pan Controls Enable deep sleep support Questions about Crestron IV-CAMA3 Series? CANCEL UPDATE EQUIPMENT See the step by step integration guide. Figure 9: Camera speed controls can be adjusted in Mira Portal.
-
Page 10: Camera Tracking
Invert the pan control reverses the left and right motion directions. Camera Tracking The Crestron IV‑CAMA3 Series Camera supports camera tracking and Mira Connect will automatically show the camera tracking control on Mira Connect on the cameras page. The camera tracking user control may be hidden by unchecking the ‘Allow user control of camera tracking’ option on the Camera’s Options tab. - Page 11 Mira Connect Integration Guide for Crestron IV‑CAMA3 Series Camera S Y S T E M S Select camera: FRONT OF ROOM Track People Pan/Tilt Zoom Camera presets: PRESENTER WIDE VIEW Full Room View Front of Room TABLE END CLOSE UP VIEW...
-
Page 12: Connection Interface
OPTIONS OPTIONS CAMERA CONFIGURATION CONNECTION Allow user control of camera tracking Questions about Crestron IV-CAMA3 Series? CANCEL UPDATE EQUIPMENT See the step by step integration guide. Figure 12: Camera options include control of whether the tracking option is visible on Mira Connect. - Page 13 Crestron IV‑CAMA3 Series Camera over an Ethernet connection. Zoom Rooms Integration If integrating the Crestron IV‑CAMA3 Series Camera Zoom Rooms video conferencing systems, associate the Crestron IV‑CAMA3 Series Camera with the Zoom Rooms using the Zoom Rooms CAMERA & AUDIO tab as shown in the following figure.
-
Page 14: Troubleshooting
Mira Connect Integration Guide for Crestron IV‑CAMA3 Series Camera S Y S T E M S Update Equipment Equipment Type* Zoom Rooms Simulate equipment CONNECTION CAMERAS & AUDIO VIDEO INPUTS OPTIONS USB Camera Microphone Build-in Input (Line In) Volume Speaker...
