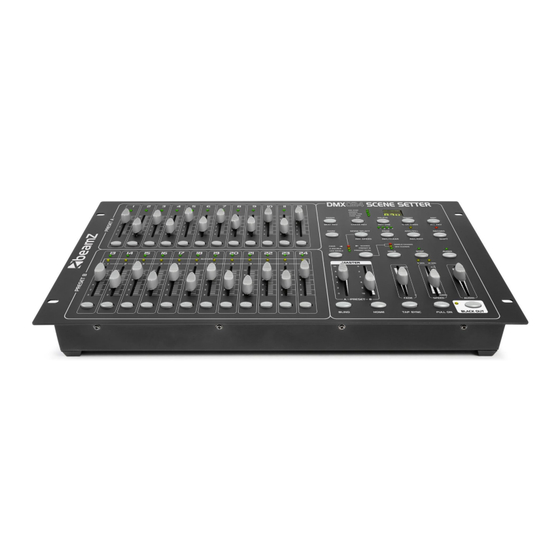

DMX024 Controller Scene Setter
Ref. nr.: 154.062
INSTRUCTION MANUAL
V2.1

Advertisement

Table of Contents
loading

Related Manuals for Beamz DMX024

Summary of Contents for Beamz DMX024

  • Page 1 DMX024 Controller Scene Setter Ref. nr.: 154.062 INSTRUCTION MANUAL V2.1...
  • Page 3 ENGLISH Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock.

  • Page 4: Unpacking Instruction

    UNPACKING INSTRUCTION CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling.
  • Page 5 Master A fader: This fader controls overall output of preset A. Blind button: This function takes the channel out of the chase of a program in CHNS /SCENE mode. 10. Master B fader: This fader controls overall output of preset B. 11.

  • Page 6: Connections At The Rear Panel

    CONNECTIONS AT THE REAR PANEL Power switch Power input: DC 12V, 500mA MIN. Midi thru: Use to transmit MIDI data received on the MIDI IN connector. Midi out: Transmit MIDI data originated by itself. Midi in: Received MIDI data. DMX out: DMX output XLR 3-pins. DMX polarity select: Select the polarity of DMX output.

  • Page 7: Music Control

    PLAYING A RUNNING LIGHT PATTERN Select the mode CHASE/SCENES via the MODE SELECT button. The red LED lights up. Push the control of the appropriate channel (memory) from section PRESET B to the top. In our example it was flash button 1.
  • Page 8 ERASING A PROGRAMMED SPEED Switch off the music control. Select the required pattern via the PAGE button and the appropriate slider control of the section PRESET B. Set the slider control completely to the top. Press the MODE SELECT button until the red LED lights up (CHASE-SCENES). Select the MIX CHASE mode via the PARK button (the yellow LED lights up).
  • Page 9 DIFFERENT FUNCTIONS FOR THE MIDI PROTOCOL Switching on the MIDI input function: Hold the RECORD/SHIFT button down. Press three times the flash button no. 1 in the PRESET A section. Release the buttons. The display shows now [Chl] Select via one of the flash buttons 1 to 12 in section PRESET B the pattern to which you wish to add the MIDI file. Switching on the MIDI output function: Hold the RECORD/SHIFT button down.

  • Page 10: Technical Specification

    TECHNICAL SPECIFICATION Power input : DC12~20V, 500mA DMX connector : 3-polig XLR output MIDI connector : 5-pin DIN Audio Input : RCA, 100mV-1V (pp) Dimensions per unit : 482 x 265 x 85mm Weight (per unit) : 4.3 kg The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
  • Page 11 The Netherlands Product number: 154.062 Product Description: DMX 024 PRO Controller Scene Setter Trade Name: BEAMZ EN 60065 Regulatory Requirement: EN 55013 EN 55020 EN 61000-3-2/-3-3 I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.
  • Page 12 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2016 by TRONIOS the Netherlands...
