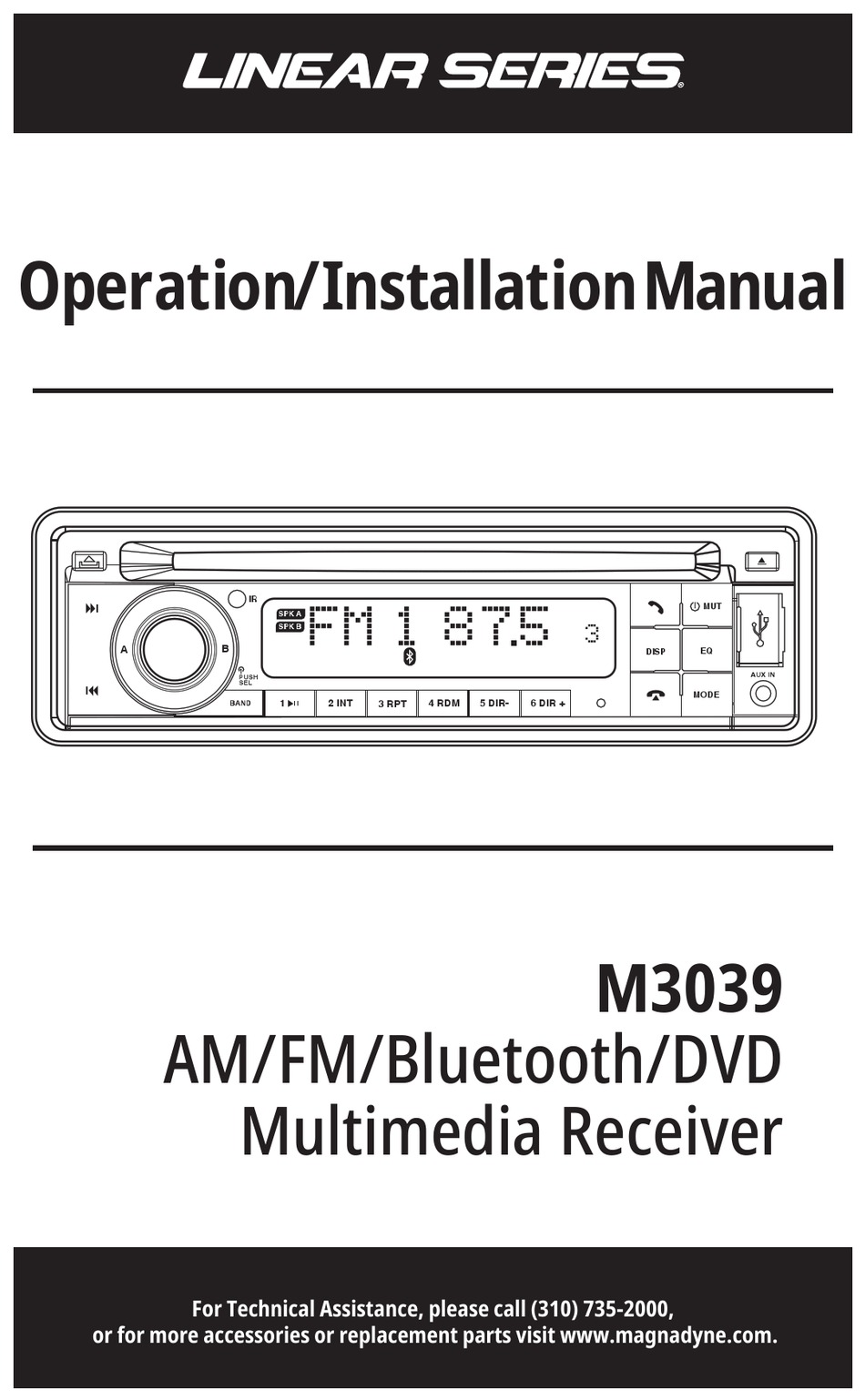

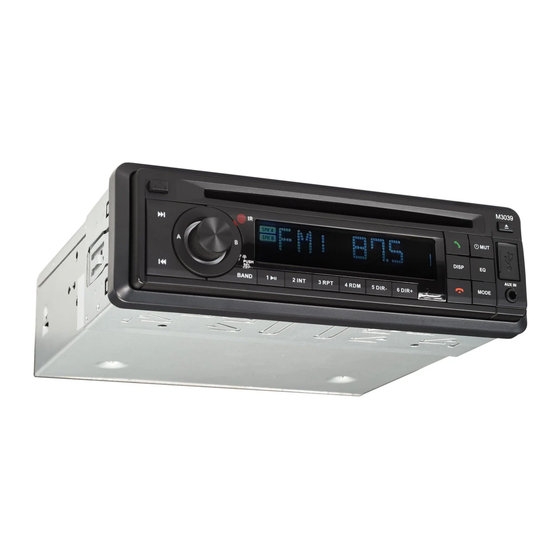

Magnadyne LINEAR Series Operation & Installation Manual
Am/fm/bluetooth/dvd multimedia receiver
Hide thumbs
Also See for LINEAR Series:
- User manual ,
- Operation & installation manual (16 pages) ,
- Installation manual (2 pages)
Table of Contents
Advertisement
Quick Links
Operation / Installation Manual
A
AM/FM/Bluetooth/DVD
or for more accessories or replacement parts visit www.magnadyne.com.
IR
FM 1 87.5
SPK A
SPK B
B
PUSH
SEL
1
2 INT
BAND
Multimedia Receiver
For Technical Assistance, please call (310) 735-2000,
3 RPT
4 RDM
5 DIR-
6 DIR +
MUT
3
DISP
EQ
MODE
M3039
AUX IN
Advertisement
Table of Contents
Related Manuals for Magnadyne LINEAR Series
Summary of Contents for Magnadyne LINEAR Series
- Page 1 SPK A SPK B DISP AUX IN PUSH MODE 2 INT 3 RPT 4 RDM 5 DIR- 6 DIR + BAND M3039 AM/FM/Bluetooth/DVD Multimedia Receiver For Technical Assistance, please call (310) 735-2000, or for more accessories or replacement parts visit www.magnadyne.com.
-
Page 2: Table Of Contents
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and in- stallation procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media Receiver. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture. No user-serviceable parts inside. -
Page 3: Getting Started
Getting Started Getting Started (continued) 14. USB Port: Slide door from left to right to expose 22. 3/RPT Button: Press and release to recall the 9 10 11 12 13 14 * Reset button located under the USB port. Insert a USB drive to play music. #3 pre-set radio station or toggle between detachable front panel REPEAT ALL or REPEAT ONE in the DISK or USB... -
Page 4: General Operations
RDS station’s time. When a DISC or USB device is inserted into the unit, Magnadyne is not responsible for any DISC or Note: When the clock is set, the CT will go back to Note: When the time is set manually, the unit will play a song automatically. -
Page 5: Aux 1 / Aux 2 Operation
AUX 1 / AUX 2 Operation HDMI Arc Function Remote Control Locations and Functions (continued) Selecting the Audio Source: The radio’s HDMI output supports the ARC 7. Play/Pause and Mute Button ( ) : 22. INT Button: Press to play 1st 10 seconds of (Audio Return Channel) feature and will allow Note: The M3039 does not control AUX tracks in DISC/USB mode. - Page 6 The App can be found in the Google Play Store (Android Phones) or the App Store (Apple Phones). Power Off Search for “LINEAR SERIES”. Install the App per the instructions listed and accept all permissions. Note 1: Phones must have Bluetooth version 4.0 or higher...
-
Page 7: Installation
Installation • Read the instruction manual carefully before installing the unit 3. To remove the unit, first take off the outer trim frame. • Make sure to connect other wires before powering on the unit. • To avoid short circuit, make sure all the exposed wires are insulated. •... -
Page 8: Wiring
Wiring Trouble Shooting Symptom Cause Solution If the power supply is connected to the car The car ignition switch accessory circuits, but the engine is not moving, is not on. No power. switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. -
Page 9: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
