Summary of Contents for Magnadyne Linear Series
- Page 1 Operation / Installation Manual RV6100 Wall Mount Rugged Style AM/FM/ Bluetooth/DVD Multimedia Receiver For Technical Assistance, please call (800) 638-3600, or for more accessories or replacement parts visit www.magnadynestore.com.
-
Page 2: Table Of Contents
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and instal- lation procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media Receiver. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture. No user-serviceable parts inside. -
Page 3: Getting Started
Getting Started 1. Power On/Off, mute: Short press to turn the 14. DISP: Short press to toggle between info and unit on or to mute on/off. Long press to power off. clock display. Long press to enter into clock settings. 2. -
Page 4: General Operations
Button Locations and Functions (continued) 26. EQ: Short press to toggle between EQ presets: 23. 2 / INT: Short press to recall radio preset or to FLAT-POP-ROCK-CLAS or EQ OFF. Long press turn Intro ON/OFF in DISC/USB mode. to turn LOUD ON/OFF. Long press to memorize a radio station. -
Page 5: Headphone Operations
RV6100 General Operations (continued) BEEP ON/OFF: Cancelling the Sleep Timer: To turn the unit's audible beep on or off, short 1. Press the SLEEP button and SLEEP OFF will BEEP ON BEEP press the button until appear in the display. appears in the display. -
Page 6: Radio Operation
Radio Operations Radio Settings: Press and hold SEL button to Receive a Radio Station: access radio settings, then short press the • Press the AM/FM button to select RADIO mode. SEL to select between the below listed setting • Press the AM/FM button to select between options. -
Page 7: Aux1 / Av In Operation
2. From your mobile device scan for available resume the Bluetooth playback. devices. Changing the Track: 3. Select "LINEAR SERIES" to connect to the unit Press the button to select a higher Note: Enter "0000" if a password is requested. -
Page 8: Disc Operation
DISC Operation Intro: Selecting DISC Audio Play Source: Press the INT button to play the first 10 seconds When a CD or DVD is inserted into the unit, of each file. Press again to stop this function. the unit will automatically switch to DISC mode automatically begin to play. - Page 9 25. REV , FWD Buttons: 12. Navigation Buttons ( , , , Radio Mode: Press to manually tune into Moves feature selection up, down, left or right. lower or higher radio frequency. Press and 13. OK Button: Executes a selected item. hold to rapidly move forward or back.
-
Page 10: Bt App Operations
1. Your smart phone can be used as an alternative way to control the RV6100. You will need to install the “LINEAR SERIES” app into your smart phone. The APP can be down- loaded from Google Play (Android phone) or App Store (iPhone). Search for “LINEAR SERIES” and proceed to download. - Page 11 BT APP Operation (continued) Radio Mode AUX in 1 / AUX in 2 Mode Preset Stations Band Selection Seek Down Seek Sub- Aux in 1 Aux in 2 Manual Menu Mode Mode Station Selection USB/BT Mode Back to Previous Folder Pause / Next Previous...
-
Page 12: Installation
Installation • Read the instruction manual carefully before installing the unit • Make sure to connect other wires before powering on the unit. • To avoid short circuit, make sure all the exposed wires are insulated. • Secure all wires after installation. •... -
Page 13: Wiring
Wiring Wiring WIRE COLOR DESCRIPTION WIRE COLOR DESCRIPTION WIRE COLOR DESCRIPTION WIRE COLOR DESCRIPTION BLUE ANTENNA BLUE ANTENNA BLACK BLACK GRAY/BLACK SPEAKER A RIGHT - WHITE/BLACK SPEAKER A LEFT- GRAY/BLACK SPEAKER A RIGHT - WHITE/BLACK SPEAKER A LEFT- GRAY SPEAKER A RIGHT+ WHITE SPEAKER A LEFT+ GRAY... -
Page 14: Trouble Shooting
Trouble Shooting Symptom Cause Solution If the power supply is connected to the car The car ignition switch accessory circuits, but the engine is not moving, is not on. No power. switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. -
Page 16: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
Need help?
Do you have a question about the Linear Series and is the answer not in the manual?
Questions and answers

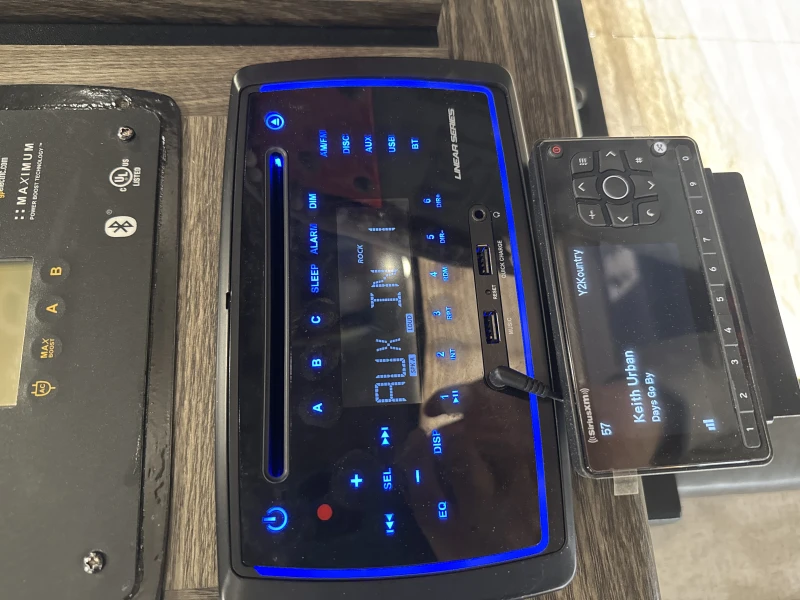

Linear series 6200. Why does sub woofer not work? LS-sub-100 green light on volume set to 50%
