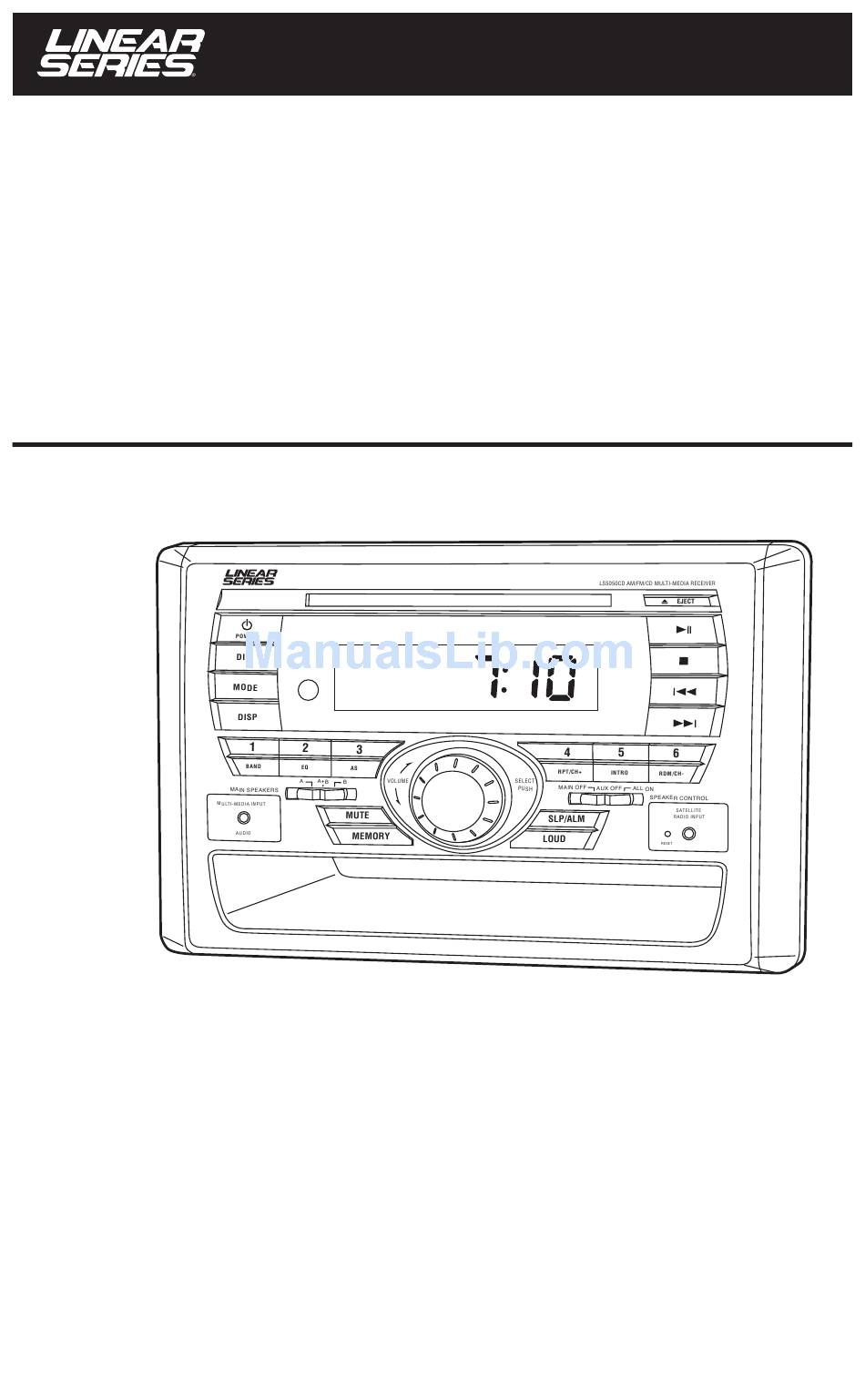

- Page 1 Operation and Installation Manual TUNER LS5050CD AM / FM Stereo Receiver with CD Player U.S. PATENT NO.: D561754...
-
Page 2: Table Of Contents
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new AM/FM Stereo Receiver with CD Player. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove cover or bottom screws. -
Page 3: Button Locations And Functions
Button Locations and Functions TUNER 1. Power On/Off: Press to turn the unit on or off. 2. Infrared Eye: Receives the signals from the optional remote control. 3. CD Slot: To play a CD, insert the disc into slot with label facing up. 4. -
Page 4: Button Locations And Functions
25. Audio Input Jack: Press the MODE button until “AUX” appears in the display then plug in device via the 3.5mm audio input plug. Note: The LS5050CD does not control the device, it just allows the audio to be played through the system. -
Page 5: General Operation
General Operations Power On/Off: Press the POWER button to turn the unit On/Off. TUNER Selecting a Play Source: To select a play source, press the MODE button until the desired source appears in the display: TUNER (AM/FM Radio), TUNER SAT IN (Satellite Radio Input), AUX (Auxiliary Audio Input) and CD (CD Disc Player) AUX IN... -
Page 6: Sound Controls
Sound Controls Volume: Increase the volume by rotating the Volume knob clockwise. Decrease the volume by rotating the TUNER Volume knob counterclockwise. Bass, Treble and Balance Control Select the desired sound mode by pressing the VOLUME/SELECT knob. The modes will be displayed in the following order: Bass, Treble, Balance and Volume. -
Page 7: Speaker Selection Switches
Sound Controls (Continued) Loud: To boost high and low tones at low volume lev- els, press the LOUD button and “LOUD” appears TUNER in the display. To deselect, press the LOUD but- LOUD ton again and “LOUD” disappears in the display. Loud Indicator Mute: Press the MUTE button to mute the volume level. -
Page 8: Setting The Clock
Setting the Clock 1. Press the DISP button until the colon starts flashing in the clock. TUNER 2. Press and hold the MEMORY button until “12H” appears in the display. To change the 24-hour clock (military time), press the l l but- ton button until “24H’... -
Page 9: Sleep Timer Operation
Alarm Operation (Continued) Activating the Alarm Timer: 1. Press the POWER button to turn the unit off. 2. Press the SLP/ALM button, the unit will enter ALARM TUNER a standby mode and light up the display. 3. Press the SLP/ALM button again until the “ALARM”... - Page 10 AM/FM Operation (Continued) Manually Tuning in a Radio Station: Lower Press the l button to tune in a lower radio station. Press the l button to tune in a higher TUNER radio station. STEREO Note: The unit will automatically switch from FM Mono to FM Stereo when the signal strength increases to a stereo level.
-
Page 11: Disc Warnings
AM/FM Operation (Continued) Automatically Store Radio Stations: 1. Press the BAND button to select either the FM or AM radio band. 2. Press the AS button and release. The tuner TUNER will search for the strongest stations and store MEMORY STEREO them into memory. -
Page 12: Cd Operation (Compact Disc)
Disc Warnings (Continued) Preparing New Discs with Rough Spots: Rough spots on A new disc may have rough edges on its inside Rough spots on outside edge and outside edges. If a disc with rough edges is inside edge used, the proper setting will not be performed and the player will not play the disc. - Page 13 CD Operation (Compact Disc) (Continued) Stopping a CD: Press the button to stop the disc. Pressing the ll button will play the disc from the begin- ning. Note: When the button is pressed the total number of tracks and total elapse time for the disc will be displayed.
-
Page 14: Audio Input
Audio Input Selecting an Audio Play Source: To select a Audio Play Source, press the MODE button until “AUX” appears in the display. Refer to the audio device’s owners manual for proper operation. Aux Indicator Satellite Radio Input Selecting the Satellite Audio In Source: To select a Satellite Audio In Source, press the MODE button until “SAT IN”... -
Page 15: Reset Button
Reset Button The LCD display may fail to function normally due to the vehicle’s battery condition, and could require resetting the radio microprocessor if: • The vehicle has been “jump started” from a dead battery condition. • The vehicle battery becomes very low and is quick-charged. •... -
Page 16: Installation
Installation ” Wall Panel ” Chassis Opening Structural Stud Caution: Do not install radio without rear cover installed: No user-serviceable parts inside. Rear cover provides protection against potential fire hazard. End Caps ” ”... -
Page 17: Speaker Connections
Speaker Connections Auxiliary Auxiliary Speaker Left Speaker Right Purple/White Wire (Common -) White Wire Purple Wire Speaker A Speaker A Right Left Brown/Black Wire Gray/Black Wire Brown Wire Gray Wire 9-Pin Connector 4-Pin Connector Speaker B Speaker B Left Right Blue/Black Wire Green/Black Wire Green Wire... -
Page 18: Auxiliary/Input Connections
Auxiliary/ Input Connections This unit for use only with a 12 Volt DC power source with a negative ground. 10 Amp Fuse Inside 9-Pin Connector Red Wire (+) to 12 Volt DC Power Black Wire Ground Model: DP36AXT In-Wall Antenna Plug Either Type of Antenna into (Optional) the Female Antenna Receptacle... -
Page 19: Safety Instructions
Safety Instructions • Read Instructions: All the safety and operating instructions should be read before the appliance is oper- ated. • Retain Instructions: The safety and operating instructions should be retained for future reference. • Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to. •... -
Page 20: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
