Summary of Contents for Magnadyne RV5070

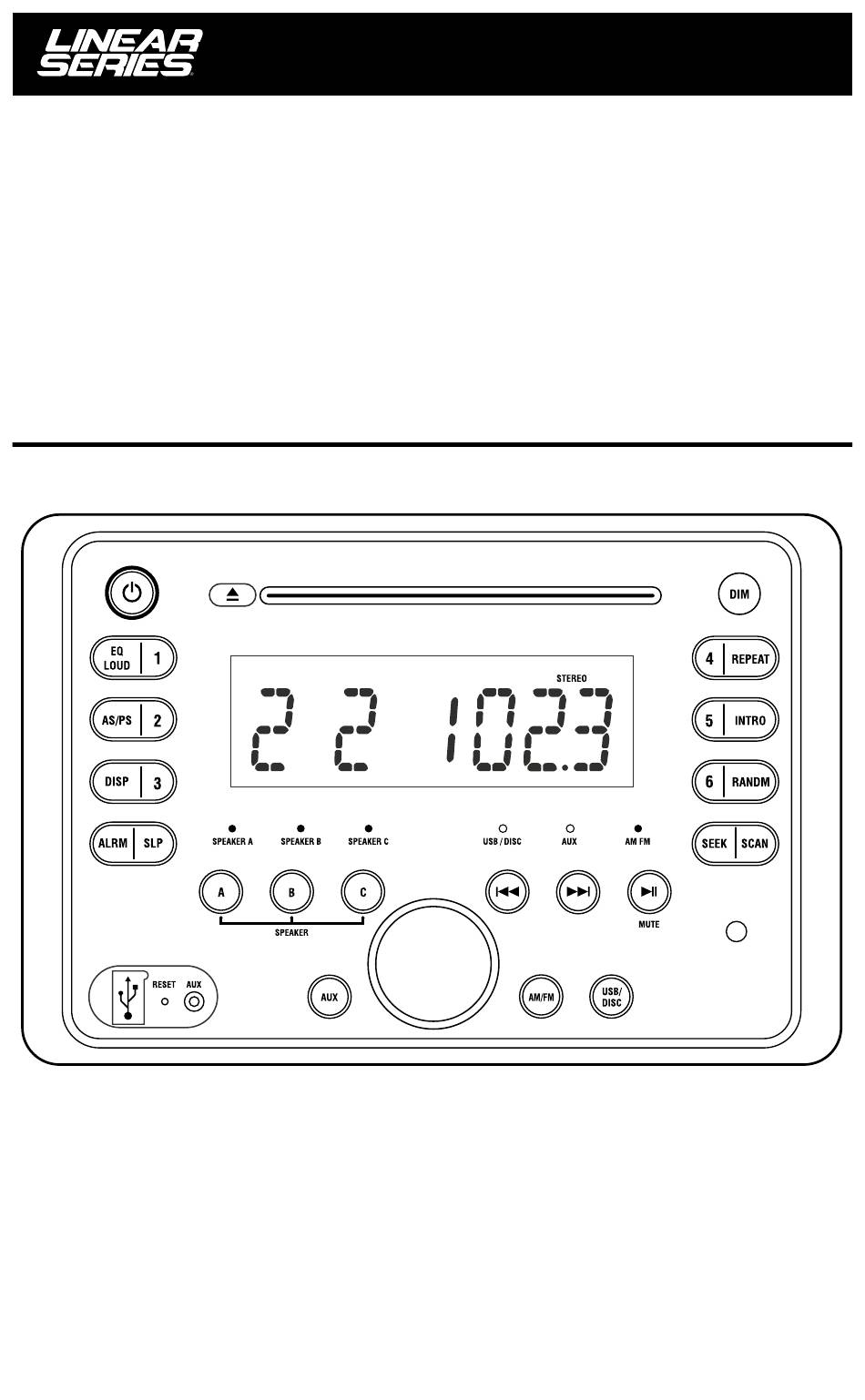

- Page 1 Operation and Installation Manual RV5070 AM / FM Stereo Multi-Media Receiver...
- Page 2 Introduction Please take the time to read all of the information in this manual. Familiarity with operation and instal- lation procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media Receiver. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove cover or bottom screws.
-
Page 3: Button Locations And Functions
Button Locations and Functions 1. Power On/Off: Press to turn the unit on or off. 2. Radio Station Recall Buttons (1-3): Press and release when recalling preset radio stations. Press and hold until the preset number appears to memorize a radio station. 3. - Page 4 “USB” will then appear in the display. Note: The RV5070 will control the USB audio device. (See “USB Input” for more details). 24. Speaker Selection Buttons (A, B and C): Switches the speaker sets on and off. Refer to the LED indi- cators above the button to determine if the speaker set is on or off.
-
Page 5: Remote Control Button Locations And Functions
Remote Control Button Locations and Functions 11. AS/PS Elapse Button: EJECT POWER Radio: Automatic radio station memory stor- MENU MODE ing (AS) and Preset radio station scanning (PS). (See “AM/FM Operation” for more SETUP TONE details). Disc: Press to display movie information. 12. -
Page 6: General Operations
General Operations Power On/Off: Press the button to turn the unit On/Off. Selecting a Play Source: To select a play source, press one of the follow- ing mode buttons: AUX: Audio Input Front (AUX), AM/FM: AM (KHz) or FM (Mhz) Radio Band (RADIO) USB/DISC: USB Input (USB) or Disc (DISC) Dimming the Display: Press the DIM button to select the desired level... - Page 7 Sound Controls Bass, Treble and Balance Control Select the desired sound mode by pressing the VOLUME knob. The modes will be displayed in the fol- lowing order: Bass, Treble, Balance and Volume. Bass: Select the Bass mode by pressing the VOLUME knob.
-
Page 8: Speaker Selection
Sound Controls (Continued) Mute: Press the MUTE button to mute the volume level. Press the MUTE button again to restore the volume. Speaker Selection Selecting Speaker Sets: • Press the A button to toggle speaker set A on and off. The LED above SPEAKER A lights up when speaker set A is on. -
Page 9: Sleep Timer Operation
Setting the Clock (Continued) 4. Press the Volume knob and the Minute indica- tors will start flashing. 5. Rotate the Volume knob until the correct Minutes appears in the display. Wait 5 seconds and the colon between the hours and the minutes will start flashing indicating the clock is set. -
Page 10: Alarm Operation
Alarm Operation Setting the Alarm Timer: 1. Press the ALM button and the clock will appear in the display with the Hour number flashing. 2. Rotate the Volume knob until the correct Hour appears in the display. “ALARM” will appear in the display indicating the alarm is activated. -
Page 11: Radio Operations
Radio Operations Selecting the Play Source: Press the AM/FM button and “RADIO” appears in the display. After a brief moment either KHZ (AM) or MHZ (FM) will appear in the display. Selecting the AM or FM: Press the AM/FM button repeatedly and select from MHZ (FM) 1, 2, 3, KHZ (AM) 1 or 2. -
Page 12: Radio Operation
Radio Operation (Continued) Memorizing Radio Stations: 1. Press the AM/FM button to select either the MHz (FM) 1, 2, 3, KHz (AM) 1 or 2 radio band. 2. Tune-in the desired radio station. 3. To memorize the station press and hold any- one of the six radio station recall buttons until the preset number appears. -
Page 13: Music Disc Operation
Music Disc Operation General Operations: Label Side Up Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. Note: If a disc does not auto-load DO NOT FORCE into the slot, as you may already have a disc loaded. - Page 14 Music Disc Operation (Continued) Stopping the Disc: EJECT POWER Press the button to stop the disc. To resume MENU MODE play, press the button. SETUP TONE Pressing the button 2 times, then pressing the button will play the disc from the beginning. ENTER Ejecting the Disc: Press the...
-
Page 15: Mp3 Disc Operation
Music Disc Operation (Continued) Elapse Times: Continue to press the AS/PS button during music disc play to display the following disc information in this order: Single Elapse, Single Remain, Total Elapse and Total Remain. MP3 Disc Operation Label Side Up General Operations: Gently insert the disc into the slot with the label side up. - Page 16 MP3 Disc Operation (Continued) Stopping the Disc: POWER EJECT Press the button to stop the disc. To resume MENU MODE play, press the button. SETUP TONE Pressing the button 2 times, then pressing the button will play the disc from the beginning. ENTER Ejecting the Disc: Press the...
-
Page 17: Movie Disc Operation
Movie Disc Operation General Operations: Label Side Up Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. “LOADING” will appear in the display and the disc will automatically start playing. Note: If a disc does not auto-load DO NOT FORCE into the slot, as you may already have a disc loaded. - Page 18 Movie Disc Operation (Continued) Fast Forward / Backwards Movie Play: POWER EJECT Press the (fast forward) or (backwards) MENU MODE button on the remote control during play. Each time the button is pressed the speed of fast for- SETUP TONE ward/ backwards changes in the following order: 2X, 4X, 8X, 20X ENTER...
-
Page 19: Setup Menu
Movie Disc Operation (Continued) Audio Language Menu: AS/PS Press the AUDIO button during playback to review ELAPSE the current setting. Most movies have their own 10 + 10/0 AUDIO SUB.TT audio setup. Go to the on-screen menu to select appropriate audio/language setup. Setup Menu Accessing the Movie Disc Setup Menu: EJECT... -
Page 20: Usb Input
USB Input Selecting USB Audio Play Source: Press the USB/DISC button and “DISC” appears in the display. Remove the cover from the USB port. Insert the USB device and the files will automatically start playing. Disc File Selection: File Number Press the button to select a lower file. -
Page 21: Audio Input
Audio Input Selecting the Audio Source: Note: The RV5070 does not control the device, it just allows the audio to be played through the system. Rear Audio Input: To select the rear audio input, press the AUX button until “AUX IN” appears in the display. -
Page 22: Additional Feature
Additional Feature Area Radio Frequency Adjustment: Note: If operating the unit in the USA do not change the area. To Change the Area: 1. Press the AM/FM button and “RADIO” appears in the display. 2. Press and hold the VOL/TONE knob until “SETUP”... -
Page 23: Installation
Installation Wall Panel Chassis Opening Structural Stud Caution: Do not install radio without rear cover installed: No user-serviceable parts inside. Rear cover provides protection against potential fire hazard. Trim Ring ”... -
Page 24: Speaker Connections
Speaker Connections Left Right Speaker A Speaker A Gray/Black Wire Brown/Black Wire Gray Wire Brown Wire Left Right Speaker B Speaker B Blue/Black Wire Green/Black Wire Blue Wire Green Wire AUX IN VIDEO OUT Left Right Speaker C Speaker C Purple Wire White Wire Purple/Black Wire... -
Page 25: Wiring And Auxiliary Connections
Wiring and Auxiliary Connections (+) to 12 Volt DC Power Red Wire Black Wire Ground Ty pe Antenna (Optional) AUX IN VIDEO OUT 15A Fuse AUX Audio Input Connection Options Video Out Connection Options AUX IN VIDEO OUT AUX IN VIDEO OUT AUX IN VIDEO OUT... -
Page 26: Safety Instructions
Safety Instructions • Read Instructions: All the safety and operating instructions should be read before the appliance is operated. • Retain Instructions: The safety and operating instructions should be retained for future reference. • Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to. •... -
Page 27: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product. - Page 28 © Copyright 2015 RV5070-UM Magnadyne Corporation Rev. B 11-4-15...
