Porter-Cable SAW BOSS 345 Instruction Manual

Porter-Cable SAW BOSS 345 Instruction Manual

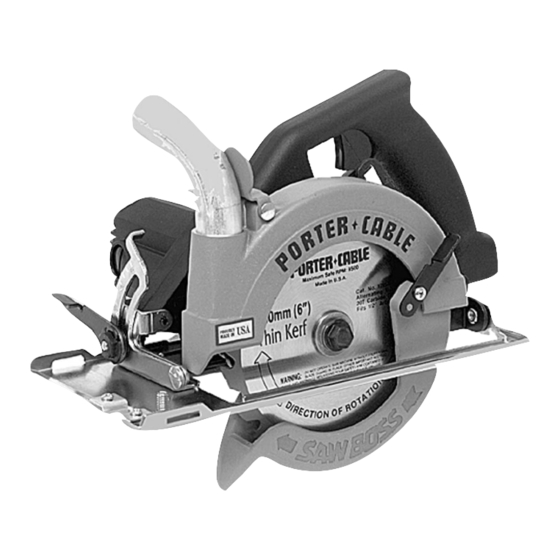

Double insulated circular saw

Advertisement

Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2002 Porter-Cable Corporation
ESPAÑOL: PÁGINA 17
FRANÇAISE : PAGE 35
Double Insulated
SAW BOSS
Circular Saw
MODEL 345
IMPORTANT
Please make certain that the person who
is to use this equipment carefully reads
and understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
®
Part No. 901012 - 05-07-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAW BOSS 345 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Porter-Cable SAW BOSS 345

  • Page 1 ® SAW BOSS manual Circular Saw MODEL 345 IMPORTANT To learn more about Porter-Cable Please make certain that the person who visit our website at: is to use this equipment carefully reads and understands these instructions before http://www.porter-cable.com starting operations.
  • Page 2: General Safety Rules

    WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: · lead from lead-based paints, · crystalline silica from bricks and cement and other masonry products, and ·...
  • Page 3 operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
  • Page 4: Specific Safety Rules And Symbols

    SPECIFIC SAFETY RULES AND SYMBOLS DANGER! Keep hands away from cutting area and blade. Keep your second hand on auxiliary handle or motor housing. If both hands are holding the saw, they cannot be cut by the blade. Keep your body positioned to either side of the saw blade, but not in line with the saw blade.
  • Page 5 Request, and follow, all safety information available from your material supplier. WARNING: There are certain applications for which this tool was designed. Porter-Cable strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written Porter-Cable and we have advised you.
  • Page 6: Replacement Parts

    When servicing use only identical replacement parts. MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C.
  • Page 7: Functional Description

    FUNCTIONAL DESCRIPTION FOREWORD Your Porter-Cable circular saw is designed for use with 150mm (6") diameter, thin-kerf blades having a " diameter mounting hole. SELECTING A BLADE A combination blade is furnished with your saw and is an excellent blade for all general ripping and crosscutting operations.
  • Page 8 CAUTION: Never use your saw if the telescoping guard is not in working order. If telescoping guard movement is sluggish or binding exists, return the saw to your nearest AUTHORIZED PORTER-CABLE SERVICE STATION or PORTER-CABLE SERVICE CENTER for repair. TO ADJUST DEPTH OF CUT FOR NORMAL CUTTING It is recommended that the depth of cut be adjusted so that the saw blade just protrudes through the thickness of material being cut.
  • Page 9: Positive Stops

    Press depth adjusting locking lever down firmly locking saw in selected position. TO ADJUST FOR BEVEL CUTS CAUTION: DISCONNECT TOOL FROM POWER SOURCE. Lift up bevel adjustment locking lever (A), Fig. 5. Tilt saw base until desired graduation line on the bevel Fig.
  • Page 10 Turn saw upside down, retract telescoping guard and check 45° angle as shown in Fig. 8. If adjustment is necessary loosen bevel adjustment locking lever and turn stop screw until angle is correct. LINE OF CUT INDICATOR A line of cut indicator (A), Fig. 9, is provided at the front of the base. The left edge of the notch in this indicator is used to follow a line when making 90°...
  • Page 11 Adjust saw for depth of cut so that slot in insert straddles saw blade at least ". Align insert so the saw blade is centered in the slot and tighten knob securely. INSTALLING SAWDUST EXHAUST NOZZLE An exhaust nozzle is provided to direct sawdust away from operator and the line of cut.
  • Page 12 TO ASSEMBLE RIP GUIDE A rip guide (A), Fig. 13, is available as an accessory. Install rip guide as follows: CAUTION: DISCONNECT TOOL FROM POWER SOURCE. Insert rip guide through slot in left side of base, over stud and through slot in right side of base.
  • Page 13: Bevel Cutting

    Do not force the cut. Let the saw do the cutting at the rate of speed permitted by the type of cut and the material being cut. When the cut is completed, release the switch and allow the blade to stop before lifting the saw from the work.
  • Page 14 Fig. 16 CAUTION: Use the lever (A), Fig. 14, provided on the telescoping guard when you have to retract the telescoping guard manually. POCKET CUTS (PLUNGE CUTTING) A pocket cut is one which must be made inside the area of the material and not starting from the edge.
  • Page 15: Maintenance

    FACTORY SERVICE CENTER. At approximately 100 hours of use, take or send your tool to your nearest authorized Porter-Cable Service Station to be thoroughly cleaned and inspected. Have worn parts replaced and lubricate with fresh lubricant. Have new brushes installed, and test the tool for performance.
  • Page 16 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
  • Page 17 Porter-Cable • Delta products should be obtained by contacting any Porter-Cable • Delta Distributor, Authorized Service Center, or Porter-Cable • Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the nearest Porter-Cable •...
