Ocean Signal rescueME EPIRB2 Pro User Manual

6. Specifications
406MHz Transmitter
Transmit Power (EIRP)
Frequency
Modulation
Encoding
Rate
121.5MHz Transmitter
Transmit Power (PERP)
Frequency
Modulation Duty Cycle
Modulation Factor
Frequency Stability
Duty Cycle
Strobe and Night Vision Lights
Light Type
Light Colour
Average Intensity Visible
Average Intensity Night Vision Light
Flash Rate
Battery
Type
Operating Time
Battery Replacement Period
GNSS Receiver
Satellite Channels
Sensitivity
Cold Start / Re-acquisition
GNSS Antenna
NFC Transmitter/Receiver
Operating Frequency
General
Dimensions of EPIRB (Inc. antenna)
Weight (EPIRB Only)
IEC60945 Category
Operating Temperature
Storage Temperature
Waterproof (EPIRB)
Auto Release Depth
Expected Life (EPIRB and Bracket)
912S-04396 v01.00
1. ABOUT YOUR EPIRB
1.1 COSPAS/SARSAT System
The basic Cospas-Sarsat concept is illustrated in the
adjacent figure. The System is composed of:
• distress radio beacons (ELTs for aviation
use, EPIRBs for maritime use, and PLBs for
personal use) which transmit signals during
distress situations
• instruments on board satellites in geosta-
tionary and low-altitude Earth orbits which
detect the signals transmitted by distress
radio beacons
• ground receiving stations, referred to as Local Users Terminals (LUTs), which receive and
process the satellite downlink signal to generate distress alerts
• Mission Control Centers (MCCs) which receive alerts produced by LUTs and forward them to
Rescue Coordination Centers (RCCs), Search and Rescue Points Of Contacts (SPOCs) or other
MCCs
The Cospas-Sarsat System includes two types of satellites:
• satellites in low-altitude Earth orbit (LEO) which form the LEOSAR System
• satellites in geostationary Earth orbit (GEO) which form the GEOSAR System
The future Cospas-Sarsat System will include a new type of satellite in the medium-altitude Earth
orbit (MEO) which will form the MEOSAR System.
1.2 Return Link Service
The Galileo Return Link Service (RLS) is a free-of-charge global service available to Cospas-Sarsat
RLS compatible beacons. The new functionality, currently offered uniquely by Galileo, enables a
communication link that relays Return Link Messages (RLM) back to the originating beacon through
the Galileo Navigation Signal in Space.
The RLS feature is an indication on the EPIRB2 Pro that confirms to the User that the distress signal
from the EPIRB2 Pro has been localised by the Cospas-Sarsat system and is being sent to the
SAR authorities. It does NOT mean that a search and rescue mission has been launched, but only
confirms that the distress alert has been received by the Cospas-Sarsat system and is being routed
to the appropriate SAR agencies. The RLS aims to send an acknowledgment to the beacon within 30
minutes following activation (the response may not be received by the beacon for significantly longer).
RLS is an optional function and may not be permitted in all countries. The full RLS specification can
be found here: https://gsc-europa.eu/sites/default/files/sites/all/files/Galileo-SAR-SDD.pdf
12W
406.031 MHz ±1KHz
Phase ±1.1 Radians (16K0G1D)
Biphase L
400 bps
50mW±3dB
121.5 MHz
>35%
0.85 to1.00
±50ppm
>98%
High Intensity LED & Infrared (IR)
White and IR
>1 candela
15mW/sr
24 per minute (nom.)
Lithium Iron Disulphide (LiFeS2)
>48Hours @ -20°C
10 years
72 acquisition
-167dBm
-148dBm / -160dBm
Microstrip Patch
13.56 MHz
410mm x 90mm x 101mm
(16.1 x 3.5 x 3.9 in.)
422grams (0.92lbs)
Portable
Class 2 -20C to +55C
Class 2 -30C to +70C
10m depth for 1 hour
4m maximum
In excess of 10 years
03/05/2023
EPIRB2 Pro
Category 1
406MHz EPIRB
(With RLS)
OWNER DETAILS
Name
Vessel
CONTACT
Tel.
Email
BEACON REGISTRATION
It is the owner's responsibility to register
!
this beacon with the appropriate National
Authority before operation.
Documentation is provided within the packaging with
information regarding registration with the relevant
body to comply with the required configuration of the
beacon.
ATTACH YOUR BEACON DETAILS HERE
IN CASE OF EMERGENCY
USE ONLY IN SITUATIONS OF GRAVE AND IMMINENT DANGER

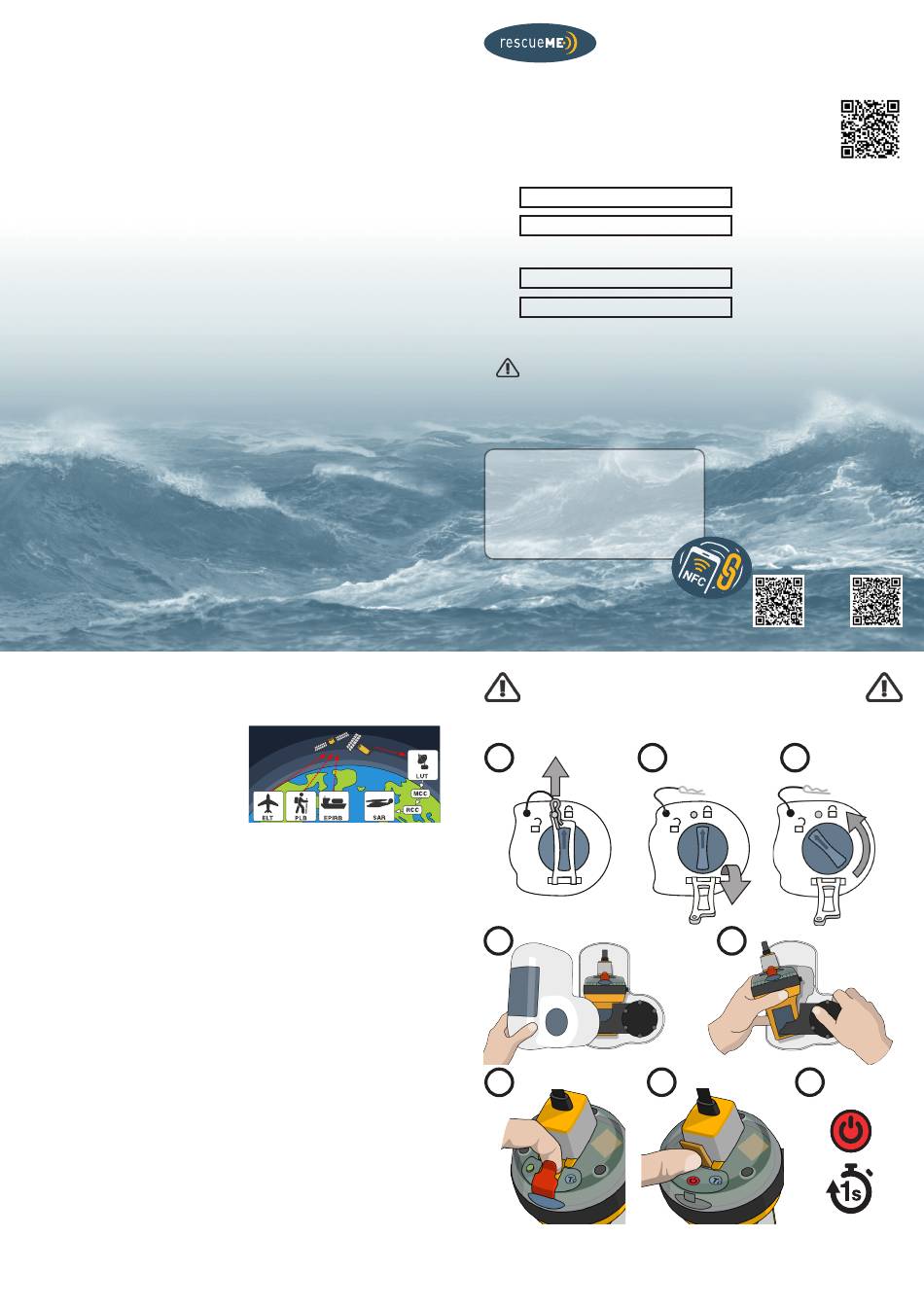

MANUAL ACTIVATION
1 2
Pull the pin
4
Remove the cover
6 7
Break off the tab
NOTE: Remove the rubber lanyard cover and tie the lanyard to the life raft or your person
to prevent loss. DO NOT tie to a vessel that is in danger of sinking.
NOTE: Once removed from the bracket the EPIRB2 will automatically activate when placed
in the water. To deactivate remove from the water.
DOWNLOAD THE
FULL USER MANUAL
oceansignal.com/products/epirb2-pro
GET THE MOBILE
APP. TO SEE YOUR
BEACON'S TEST
INFORMATION
Android
3
Release the catch Turn the knob
5
Release the EPIRB
8
Lift the flap Press the button
iOS
