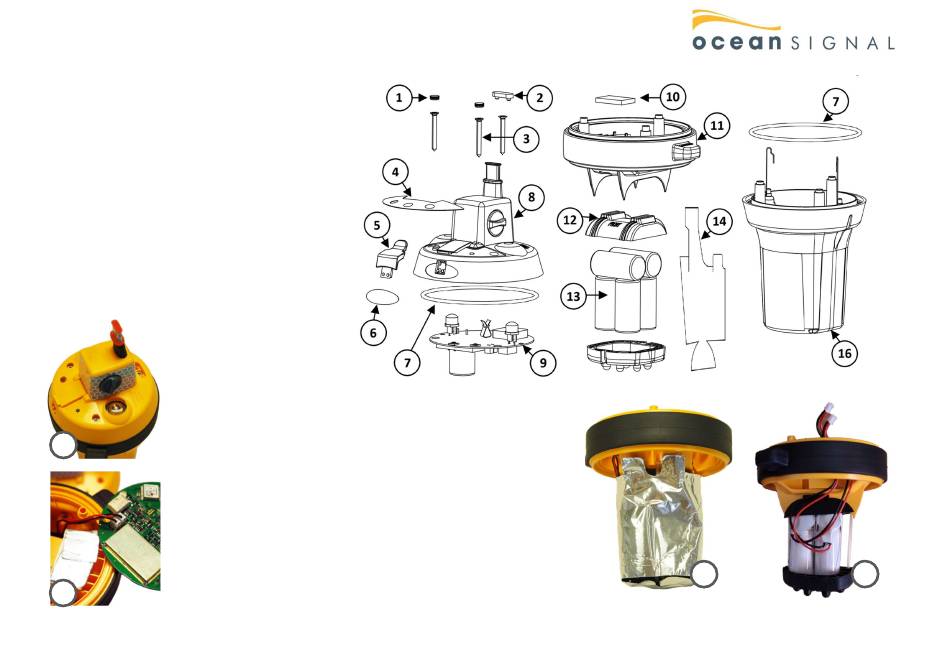

Ocean Signal rescueME EPIRB1 General Assembly

912S-02352 Issue 02.00
rescueME EPIRB1 Battery Replacement
Pack Contents
2x LB8E battery (13)
1x Battery ground plane (14)
1x Foam Pad (10)
3x Screws (3)
2x Screw Boss Bungs (1)
1x Rear Bung (2)
1x Top Keypad label (4)
1x rescueME label (6)
2x O-Ring Case Seals (7)
Dismantling
Remove the oval rescueME label (6) and
discard. Carefully slide out the red break off tab
(5) and set aside. Remove the top keypad label
(4) and discard.
Lift out the two round
black rubber bungs (1)
and the oval black rubber
bung (2) at the rear, to
reveal the screws [image
1]. Discard the bungs.
Remove the three screws
(3) and discard.
the complete lid assembly
1
(8) and set aside.
Carefully lift out the PCB
assembly (9) and turn it
over to reveal the two
battery
[image 2]. Remove the
battery connectors
set aside the PCB.
2
Lift out the complete
lanyard assembly (10-14). Note how it
Lift off
is assembled [image 3].
Remove the silver battery ground plane
(14) and the foam pad (10) that it is
attached to and discard [image 4].
Release the elastic band and set aside.
connectors
Remove the two rubber battery holders
(12) and set aside. Dispose of the two
and
EPIRB1 batteries (13) in accordance
with local waste regulations.
battery and
Page 1 of 2
EPIRB1 General Assembly
3 4
