FTT700

FTT700-USB

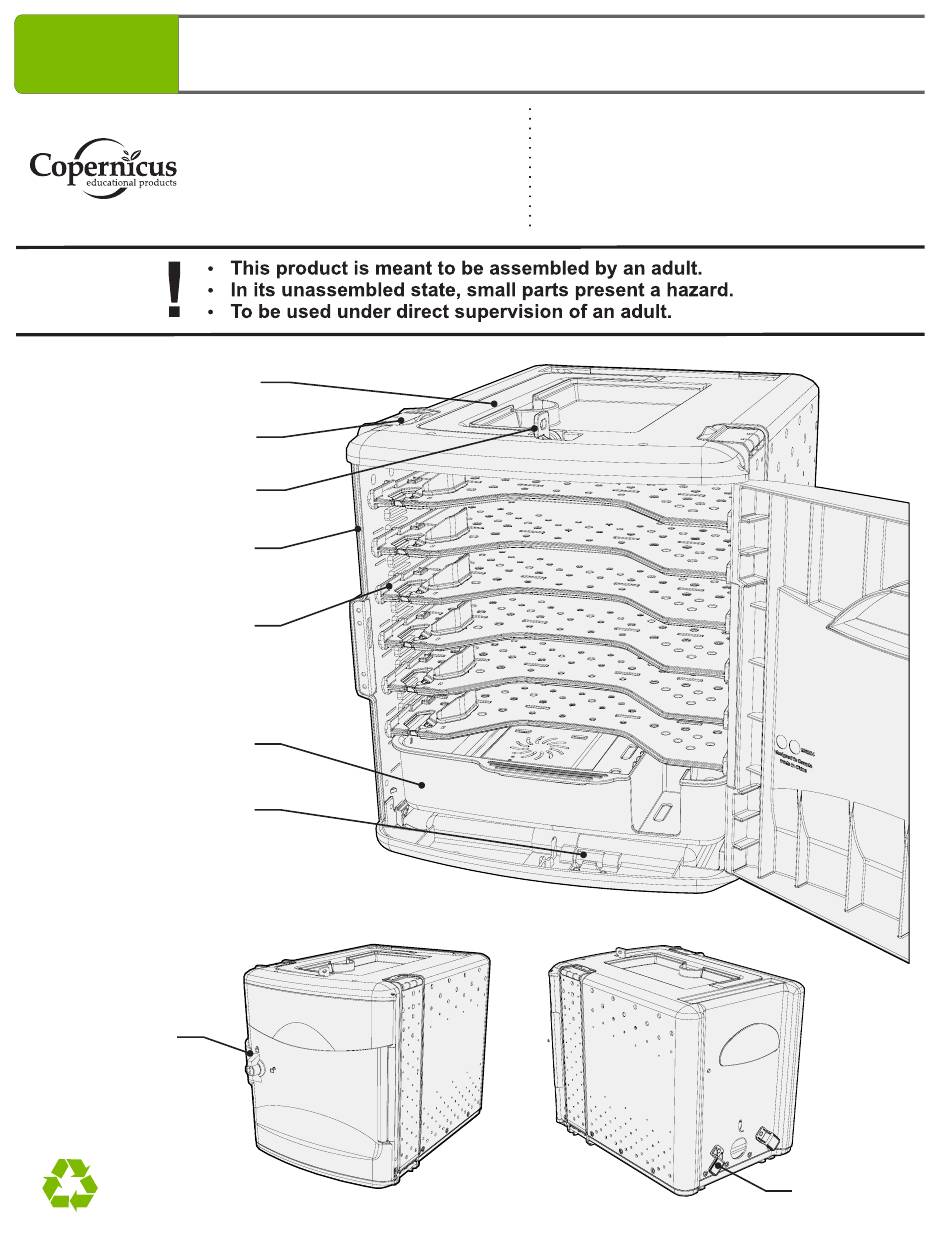

WARNING

Top Handle x1

Flip Lock x2

Locking Tab x1

6 Device Tech Tub

Main Body x1

Shelf with

Device Positioning Rail

and Cable Clips

Power Tray x1

Surface Mount Lock x1

3 Point Lock

with Keys

Please Recycle

Tech Tub - 6 Device Setup

Assembly Guide

FTT700_FTT700-USB_2020_A

Check out our other products online at

www.copernicused.com

FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.

For assistance, please contact us:

1-800-267-8494

Email info@copernicused.com

Have your packing slip ready for reference

Cable Hooks x2

Need help?

Do you have a question about the Tech Tub2 FTT700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Copernicus Tech Tub2 FTT700

Page 1 Main Body x1 Shelf with Device Positioning Rail and Cable Clips Power Tray x1 Surface Mount Lock x1 3 Point Lock with Keys Cable Hooks x2 Please Recycle FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 2 PROVERB Validate Your Warranty Life Time Year To validate your warranty, submit the ON-LINE form at www.copernicused.com Enter a draw to win a Copernicus Product for your classroom at the same time! ® Tech Tub Component Warranty Warranty FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 3 72 consecutive hours. Turn off power strip before unplugging. Specifications Read the electrical specifications of any electronic equipment you are using with your Copernicus products. Failure to read these specifications and follow their instructions could result in damage to your equipment or personal injury.
Page 4 1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com Email our Tech Support Service Check out some of our other great products! www.copernicused.com FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 5 M5 Square Nut M5 Screw In FTT700 Not to Scale ® 6 Device Tech Tub M in B dy Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 6 Hook & Loop Straps M5 Screw In FTT700-C Not to Scale ® 6 Device Tech Tub M in B dy Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 7 If you have not purchased the FTT200, please proceed to the next page to continue setting up ® your Tech Tub . Dual Duty Teaching Easel FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 8 ® If you have not purchased the Tech Tub Trolley, please proceed to the next page to continue ® setting up your Tech Tub . FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 9 Press snaps into these holes in shelf Actual Size: You will need: (Not to Scale) Shelf M5 Square Nut Install nuts into one shelf Ensure nut is inserted fully into slot in shelf FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 10 Install two shelves below middle shelf, leaving two empty slots between each shelf Install remaining three shelves above middle shelf, leaving two empty slots between each shelf FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 11 (23262) (23275) ONLY FTT700 ONLY Install Power Strip Mounting Bracket onto Power Tray Insert side with two pegs into keyholes Slide back till you hear a CLICK! FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 12 Route power cable around hook and out through back of Power Tray HOOK Fit 4 keyholes on Power Strip over 4 Slide Power Strip back to secure it pegs on Power Strip Mounting Plate FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 13 THIS LINE IS 6” LONG USE IT TO MEASURE OUT YOUR CABLES Secure cables around adapter using provided hook and loop straps Repeat above steps for all remaining power adapters FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 14 Plug first power adapter into power strip Run cable to front of tray, leaving excess cable hanging out Power Brick Adapter Wall Plug Power Adapter (including USB Power Adapters) FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 15 Plug in remaining power adapters Plug remaining power adapters into power strip Run cables to front of tray, leaving excess cable hanging out Power Brick Adapter USB Power Adapter FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 16 Place USB Hub and Power Adapter into Power Tray Route power cable around hook and out through back of Power Tray HOOK Connect USB Hub to power adapter FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 17 FTT700-C ONLY Plug in USB cables Plug USB cables into USB Hub Run USB cables to front of tray, leaving excess cable hanging out FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 18 Position Power Tray for Cable Management Feed Power Strip power cable through hole in back of tub Partially slide Tray back into tub (leave a gap as shown below) FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 19 The process is the same for USB cables Push cable through first green clip Push cable through second green clip Tuck excess cable into front area of power tray FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 20 The process is the same for USB cables Push cable through first green clip Push cable to back of opening Tuck excess cable into front area of power tray FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 21 Repeat Step 13A and 13B until all remaining cables are clipped into shelves (as shown) FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 22 Slide Tray all the way into the Tub When pushing the tray in, pull the cable to keep it out of the way of the tray FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 23 To remove, push on the top edge and rotate up out of holes in shelf. If you wish to discard Device Positioning Rails please recycle them. Push devices in completely to ensure cables don't interfere with door FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 24 Plug device power cable into each device Once step 17 is complete plug power strip or usb hub power cable into wall outlet FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 25 Turn on power strip via access hole on front of tray Slide Power Tray out and slide USB Hub power switch into on position FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 26 2® Wrap Power Strip power cable around cable hooks when moving Tech Tub FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 27 Device Open the front door of upper tub and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
Page 28 Slide rear feet of Tech Tub onto the pins Open the front door and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT700_FTT700-USB - Version A- Released July 1, 2020 - Copernicus Educational Products Inc.
