  • Page 1 User Manual...

  • Page 2: Safety

    • Do not make sharp / abrupt turns at high speeds to avoid tipping. • Do not operate under the influence of drugs or alcohol • Do not completely submerge the unit in water • Do not operate in harsh weather conditions. For any questions or concerns please call 1-800-649-9320 or visit www.daymak.com...

  • Page 3: About Daymak

    Daymak warranties, services, and stocks parts for everything it sells. We support our products. Please feel free to visit our website. You’ll find the latest in cool transportation...

  • Page 4: Introduction

    Liability Daymak does not assume any liability for damages, loss of profits, or claims from third parties due to improper use of this product. Daymak does not assume any liability for damages due to problems with the product resulting from service by a third party that is not certified by Daymak.

  • Page 5: Table Of Contents

    Table of Contents • SAFETY • ABOUT DAYMAK • INTRODUCTION • PART DIAGRAMS • RIDING INSTRUCTIONS • ASSEMBLING THE BOOMERBUGGY SPLIT • THE BATTERY • CHARGING YOUR MOBILITY SCOOTER • UNDERSTANDING YOUR VOLTAGE • CHARGING THE BOOMERBUGGY SPLIT • OPERATION •...

  • Page 6: Part Diagrams

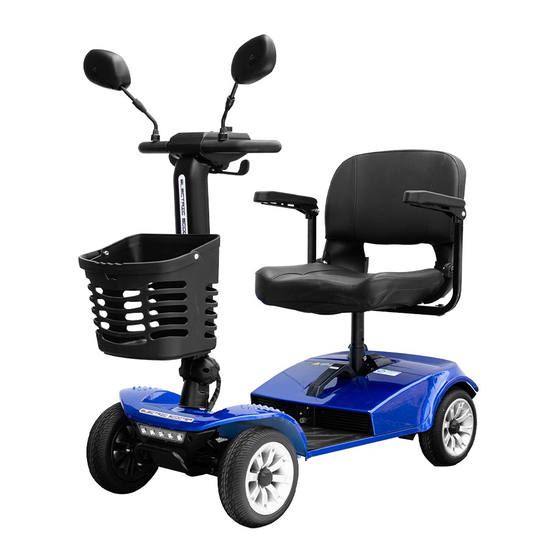

    Part Diagrams Diagram 1: Boomerbuggy Split This diagram illustrates the various parts of your mobility scooter. Please note that many of these parts are not user-serviceable and should be repaired only by trained professionals. This is especially true of the electrical systems and the mechanical components.

  • Page 7: Riding Instructions

    Riding Instructions This guide assumes that you already know have operated a mobility scooter. If you have never used a mobility scooter before, we strongly recommend that you read throught this guide entirely before beginning to operate. Caution Always make sure to be properly situated on the unit before turning it on and engaging the throttle.
  • Page 8 Items to Carry with the Electric Mobility Scooter It is a good idea to carry the following items with you at all times when you ride your Mobility Scooter. • The charger, to charge the mobility scooter in case the battery power runs out.
  • Page 9 Accelerating and Decelerating The throttle is on the handlebars (see Operation for more information). Use this carefully when situated on the mobility scooter to go forward and release to decelerate. Warning Do not activate the accelerator until you are seated on the mobility scooter and are ready to accelerate.
  • Page 10 Signalling The Horn The mobility scooter has a horn. Use this when coming close to pedestrians to warn of your passing. See the operation section for where to find your horn and how to use it. Lights The headlight and tail light are useful features when you are riding at night or in dark areas.

  • Page 11: Assembling The Boomerbuggy Split

    Assembling the Boomerbuggy split To assemble the Boomerbuggy Split, you can either go online and watch a video of the assembly or scan this QR Code with your smart device. This will give you a comprehensive guide on assembling the Boomerbuggy Split from scratch.

  • Page 12: The Battery

    The Battery This section details what you need to know about the battery that powers your mobility scooter. Always remember to treat your mobility scooters electrical systems with respect. Battery Power The dashboard has a battery charge indicator. When the mobility scooter is activated, the guage will jump and indicate the currently available battery power.

  • Page 13: Charging Your Mobility Scooter

    If your charger’s LED status light does not change from red to green over an extended period of time, for perhaps more than 14 hours, and the battery is very hot, the battery or charger may need replacing. Stop charging and bring both to your Daymak dealer immediately. Do not overcharge the battery.

  • Page 14: Understanding Your Voltage

    Underneath each reading on the above chart shows a number and a “S” this represents how many series are in your battery pack. To know the exact series of your battery contact your local Daymak dealer.

  • Page 15: Charging The Boomerbuggy Split

    Mobility Scooter is ready to go. Warning Do not leave the Boomerbuggy Split charging for long periods of time after it is fully charged. Once the Mobility Scooter is charged unplug it ASAP to avoid doing damage to...
  • Page 16 Contact your local Daymak dealer to purchase a new battery. When replacing your battery, dispose of it at a proper municipal battery recycling facility.

  • Page 17: Operation

    Operation Once you are in your unit and properly seated, you are now ready to begin operating. Warning Do not engage the machine without being seated properly on the unit as this can cause injury. We recommend reading through the whole manual prior to use for a complete understanding of the inner workings of this machine.
  • Page 18 engaging / disengaging the brake lock Pictured on the right is the Brake lock. This is situated on the back of the unit on the right hand side. Pull this lever down to lock the brakes and pull it up to unlock it. Once locked you will not be able to push the scooter manually.
  • Page 19 handle bar Controls Above you will see the main handlebars. These are used to steer your vehicle. By pulling the left side of the handlebar towards you will turn the vehicle to the left and vice versa. On the handlebars there are some controls. Below is what each does: 1) Potentiometer Dial (Speed Dial) - This dial gives more control to the minimum or maximum speed your vehicle can go.

  • Page 20: Brakes

    Brakes The Boomerbuggy Split comes with electronic brakes. Simply release the throttle and the brakes will engage automatically. Seat The seat on the Boomerbuggy Split can be raised or lowered to fit your riding comfortability. To lift thes seat pull the lever seen below up and while holding it up adjust the height to the desired position.

  • Page 21: Adjusting The Tiller

    The Boomerbuggy Split has an adjustable tiller that allows you bring the handlebars closer to you. To do this, simply spin the knob seen here counter clockwise until it is loose, then adjust the handlebars to the desired position, then turn the knob again clockwise to lock it into...

  • Page 22: Disassembling The Split

    The Boomerbuggy Split can be disassembled to make it easy for storage or to take with you for travelling. To minimize the total space follow these steps. 1) Remove seat and arm rests See the section SEAT on how to lift the seat out and adjust arm rests to remove them.

  • Page 23: Technical Data

    This section provides you with the technical specifications for your Mobility Scooter. The Motor and Wheel Assembly The Boomerbuggy Split has a magnetic DC brushless motor on the rear wheel hub. This type of motor has excellent low-end torque and high efficiency when working within its range.

  • Page 24: Maintenance And Troubleshooting

    Alteration of these components voids the warranty. The Motor Do not service the motor yourself. Bring the mobility scooter to your Daymak dealer for service. The motor in your mobility scooter is a highly complex and fine-tuned mechanism. Repairing it requires significant expertise. We suggest maintenance every 100 running hours or so.
  • Page 25 Cleaning Cleaning is extremely important this will ensure your mobility scooter will serve you for a long time. In the long run, it will save you money and a lot of time waiting for the Mobility Scooter to be repaired. You should clean your mobility scooter weekly. Do not use aggressive power jets or water sprays when washing the mobility scooter and keep water off the battery as much as you can.
  • Page 26 Schedule The frequency of maintenance depends on how much you ride and under which conditions. Recreational riders needs far less maintenance then off-road riders. The harder you ride, the more you have to take care of your Mobility Scooter if you want it to last. There are various time intervals for proper maintenance.

  • Page 27: Specifications

    Specifications Name Boomerbuggy Split Motor 300W Voltage Amp Hour 20AH Watt Hours 480WH Battery Life 300 cycles Battery Lead Acid Removable Battery Charger 29.4V 2.5A 100-240V Charge Time 6 - 8 Hours Lights Max Load 275 lbs. Assembled Weight 119 lbs.
  • Page 28 Frame Size Rear / Basket Storage Under Seat Storage Rear / Basket Storage Volume 17860 cubic inch Under Seat / Glove Storage Occupancy Alarm Steering Lock Center Kickstand Foldable Folded Dimenison 47 x 20 x 19" Thank you for choosing Daymak...
