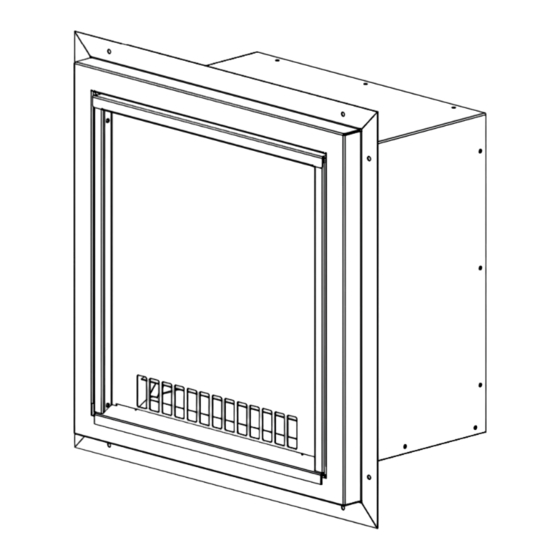

50-3813 Chase Comfort Kit
INSTALL MANUAL
WARNING: ONLY FOR USE ON URBANA BRANDED & ENVIRO G-SERIES FIREPLACES. If
the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life. Installation and service
must be performed by a qualified installer, service agency or the gas supplier.
C#4001609
CERTIFIED TO: ANSI Z21.88 / CSA 2.33 VENTED GAS FIREPLACE HEATERS
| 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENVIRO 50-3813 and is the answer not in the manual?

Questions and answers

Related Manuals for Urbana ENVIRO 50-3813

Summary of Contents for Urbana ENVIRO 50-3813

  • Page 1 50-3813 Chase Comfort Kit INSTALL MANUAL WARNING: ONLY FOR USE ON URBANA BRANDED & ENVIRO G-SERIES FIREPLACES. If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Installation and service must be performed by a qualified installer, service agency or the gas supplier.

  • Page 2: Specifications

    Specifications imensions 13.62 14.00 18.12 16.26 8.65 18.29 16.43 14.04 Figure 1: Power Head Dimensions ontents The table below outlines the complete contents of the Chase Comfort Kit (50-3813). Refer to the parts diagram section of this manual for reference and ensure that your kit is complete and undamaged. Table 1: Chase Comfort Kit Contents Part Description Part Description...
  • Page 3 Assembly ssembly Prior to installation the heat collector must be attached to the rear of the power head, as shown below, using the supplied #8 screws and a 1/4” nut drive #8 Screws (x4) Power head Chase Comfort kit must be installed a minimum of 25”...
  • Page 4 Installation - Enviro G-Series Restrictions nviro eries estriCtions WARNING : IT IS ESSENTIAL THAT THE CHASE IS VENTED TO ALLOW ADEQUATE AIRFLOW FOR THE CHASE COMFORT KIT. ENSURE ONE OF THE AVAILABLE FRAMING OPTIONS HAS BEEN CONSTRUCTED AS PERMITTED IN THE FIREPLACE’S OWNER MANUAL.
  • Page 5 Installation - Power Head Restrictions & Clearances & C ower heAD estriCtions leArAnCes To determine the location of the power head refer to Figure 7 & Table 2 Power head Minimum Clearances below. Note - The power head must be located within the same chase as the fireplace and can’t be attached to ducting/venting or installed in a separate bulkhead.
  • Page 6 Installation - Power Head Framing 1. Determine the location of the power head as directed on the previous page. NOTE: The Chase Comfort Kit allows for a minimum wall thickness of 8” (203mm) and a maximum wall thickness of 12” (305mm).
  • Page 7 Installation - Power Head Exterior Wall Cladding Seal gaps with Silicone Figure 11: Silicone locations Figure 10: Power Head installation 11. The exterior wall finishing material can now be installed around the power head. The finishing 7. Upon completion of Step 6, mount the finishing face material can butt up against the perimeter of the to the power head using eight (8) self-tapping screws.
  • Page 8 Power Head Wiring ower irinG 1. Remove the power head’s front cover by removing the four (4) screws using a 1/4” nut driver. See Figures 13 & 14. 2. To wire the blower motor, use the supplied wire nuts to connect the two loose blower motor leads to the incoming power that was routed through the rear strain relief.
  • Page 9 User Control Wiring Remote Control (Urbana Fireplaces Only) - The Chase Comfort kit may be wired to the fireplace via the unused comfort fan circuit (X10) on the existing IFC terminal block (see Figure 16). This will allow for on/off and 6 speed level control via the fireplace’s remote control.
  • Page 10 Fan Icon Activation (Urbana Only) CtivAtion rbAnA irePlACes Figure 17: Step 1 Figure 18: Step 2 Figure 19: Step 4 Figure 20: Step 5 1. With no batteries inserted into the remote, keep pressed Power On/Off and O buttons. 2. Insert batteries into the remote while still pressing the two buttons. The following screen is displayed. Each icon can be: a.

  • Page 11: Maintenance And Service

    Maintenance & Service isChArGe AmPer An external duct damper is NOT required with this kit. The Chase Comfort Kit is equipped with an internal sealing damper that closes whenever the blower is not in operation, sealing off the chase from the outside. Whenever the blower is turned on, air from the chase will flow out of the power head discharge automatically opening the damper.

  • Page 12: Parts List

    Parts List Reference Part Description Part Number Number Finishing Face 50-3770 Front Cover 50-3980 Blower Motor 50-3978 Framing Thimble Assembly 50-3768 MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.Urbanafireplaces.com www.Enviro.com Spring 2020 C-16010 12 |...
