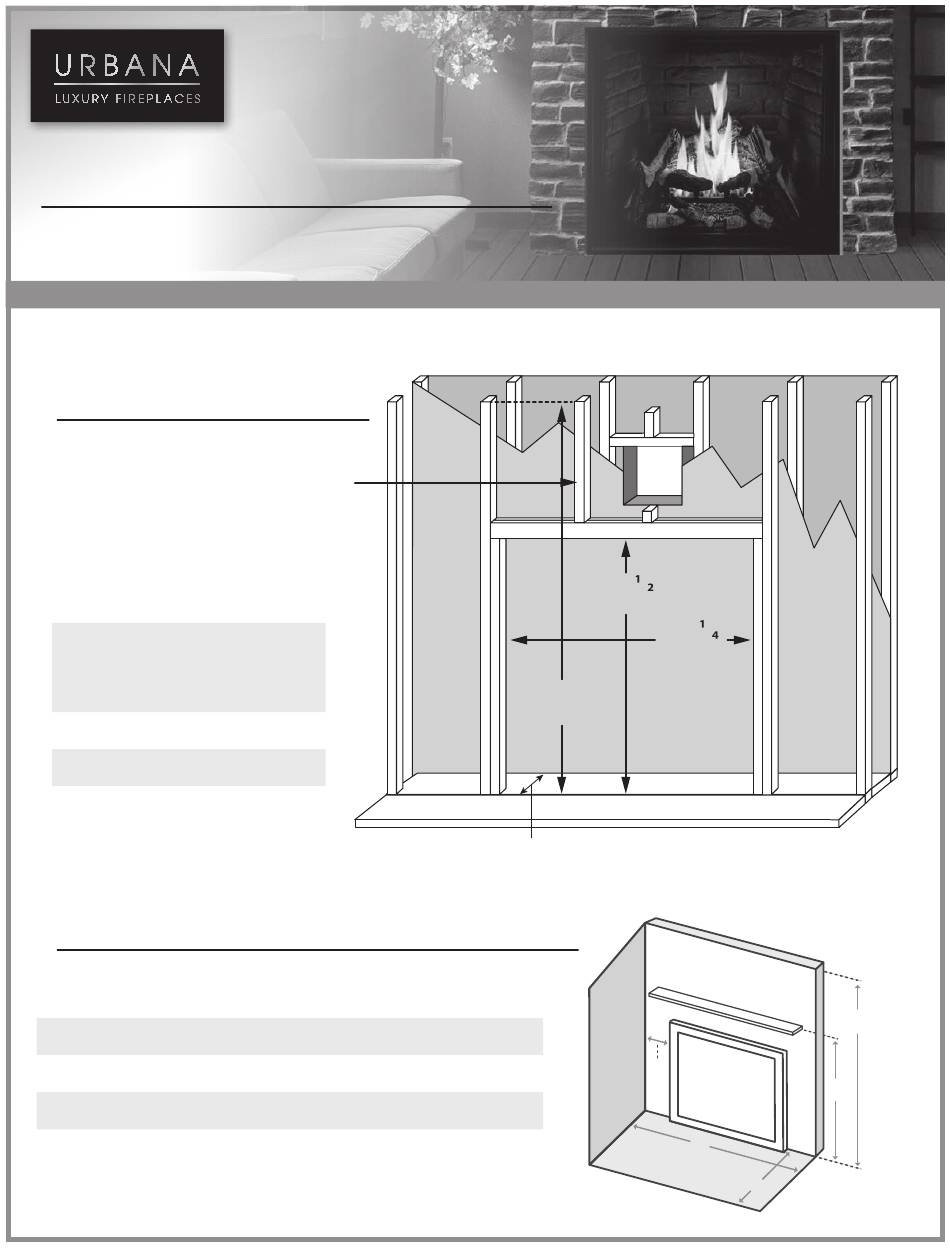

U37
FIREPLACE
Installation Reference Guide
REFER TO OWNER'S MANUAL FOR SPECIFIC INSTALLATION REQUIREMENTS AND ADDITIONAL PRODUCT INSTRUCTIONS
Minimum
Framing Dimensions
Note: When framing the unit, care
must be taken to consider the final
floor thickness, the bottom of the
fireplace must sit flush with the
finished floor to ensure proper fit of
the surround components
Note: Vent size: 8 x 11" Rigid Co-Axial
Minimum Depth
22 3/4"
(2" facing mat.)
Maximum Depth
24 1/4"
(½" facing mat.)
Width
46 1/4 " 1175 mm
Header Height
44 1/2"
†
Enclosure Ceiling
79 ½"
Clearance to Combustibles
A - Finishing edge to side wall
B - Minimum clearance to enclosure ceiling
C - Minimum clearance to mantel height
D - Front of door to edge of floor protection
E - Minimum alcove width
† - Additional ceiling height required if using 5x8 co-axial venting, refer to installation manual.
1"
25mm
Clearance from
framing studs
to venting
578 mm
616 mm
1130mm
2020 mm
3 1/2"
†
79 ½"
38 5/8"
0"
44 3/4"
44 / "
1283 mm
79 ½"
2172 mm
Refer to Table on left
89 mm
2020 mm
981 mm
0 mm
1137 mm
46 / "
1359 mm
A
C
E
D
B
Advertisement
Table of Contents
Related Manuals for Urbana U37
Summary of Contents for Urbana U37
- Page 1 FIREPLACE Installation Reference Guide REFER TO OWNER’S MANUAL FOR SPECIFIC INSTALLATION REQUIREMENTS AND ADDITIONAL PRODUCT INSTRUCTIONS Minimum Framing Dimensions Note: When framing the unit, care 1” 25mm must be taken to consider the final Clearance from floor thickness, the bottom of the framing studs fireplace must sit flush with the to venting...
- Page 2 Non-Combustible Board Fireplace Dimensions Placement 22 1/4" [565] 8" x 11" vent 22 3/4" [578] COMBUSTIBLE Wood 24 7/8" [632] 22 3/8" raming 24 1/4" [616] [568] Header 12” NON COMBUSTIBLE Combustible 8 1/2" [216] 46 1/8" [1172] Board 11 1/8" [283] 44 3/4"...
- Page 3 Mantel Projections with Cool Surface System Activating the Cool Surface System decreases the required 12” MANTEL height of the mantel. Use the graph on the right to determine the mantel height when using the Cool Surface System. Mantel graph dimensions are measured from the bottom of the fireplace, if you 8”...
- Page 4 Cool Surface System Framing Framing Option 3: Valance A valance may be desired to accentuate or hide the CSS outlet. Consider framing option 1 or 2 to utilize the valance feature. This is an optional decorative feature that covers up the CSS outlet gap. Minimum opening and valance dimensions must be followed to ensure safe heat dissipation.
