5. Open the Positioning tab and set the Elevation mask (15° is recommended).
6. To set up the base station, open the Base tab and set the following parameters:
Antenna Phase Center Position (APC) – enter latitude, longitude, and altitude
(ellipsoidal height) values of the antenna position. Do one of the following:
If known, type in the values.
•
Click Get from receiver to use the current antenna position.
•
7. Restart your receiver. Open the Base tab and check coordinates. Click Refresh, to
refresh the parameters.

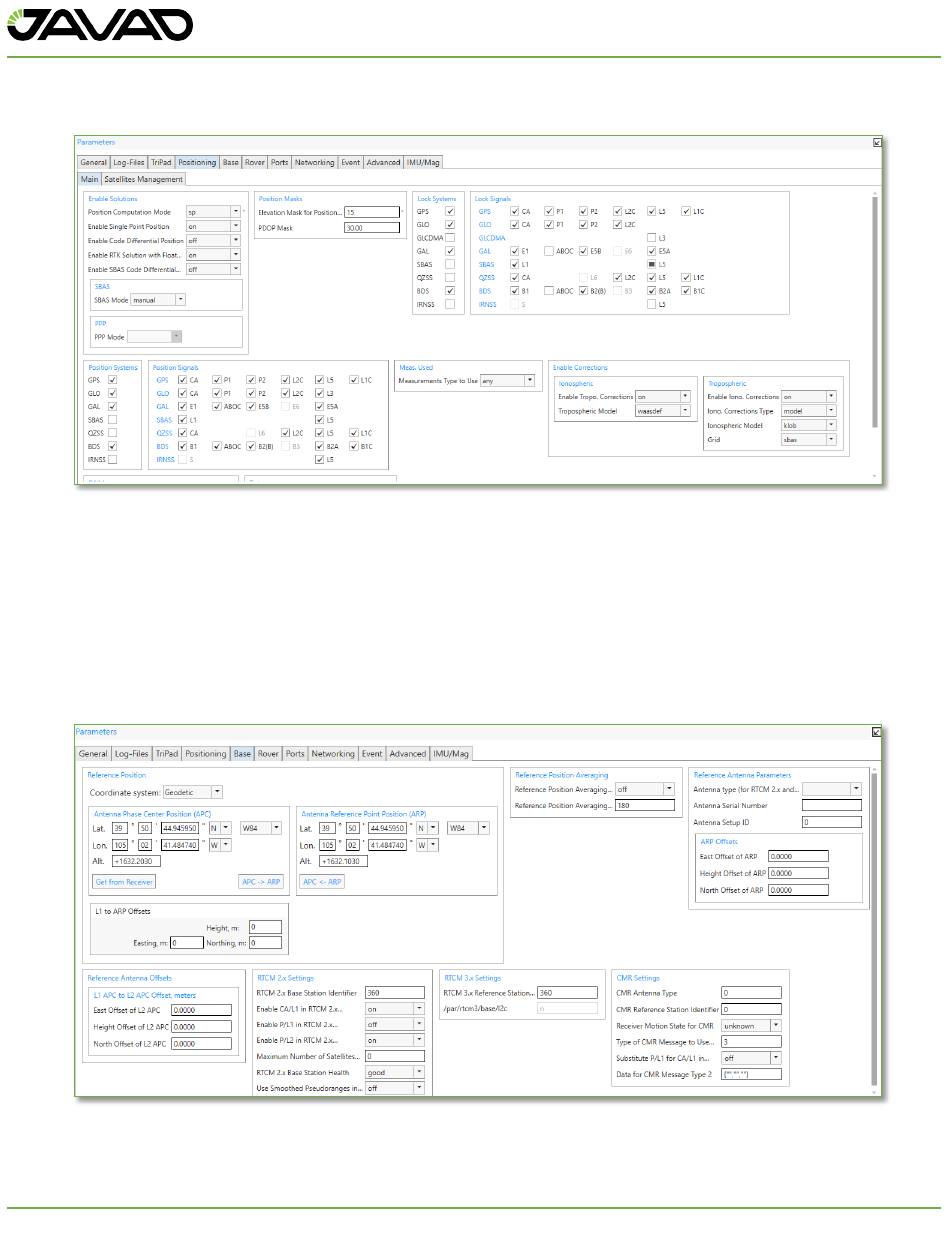

Figure 9: Parameters - Positioning - Elevation Mask
Figure 10: Parameters - Base
Page 21 of 35
