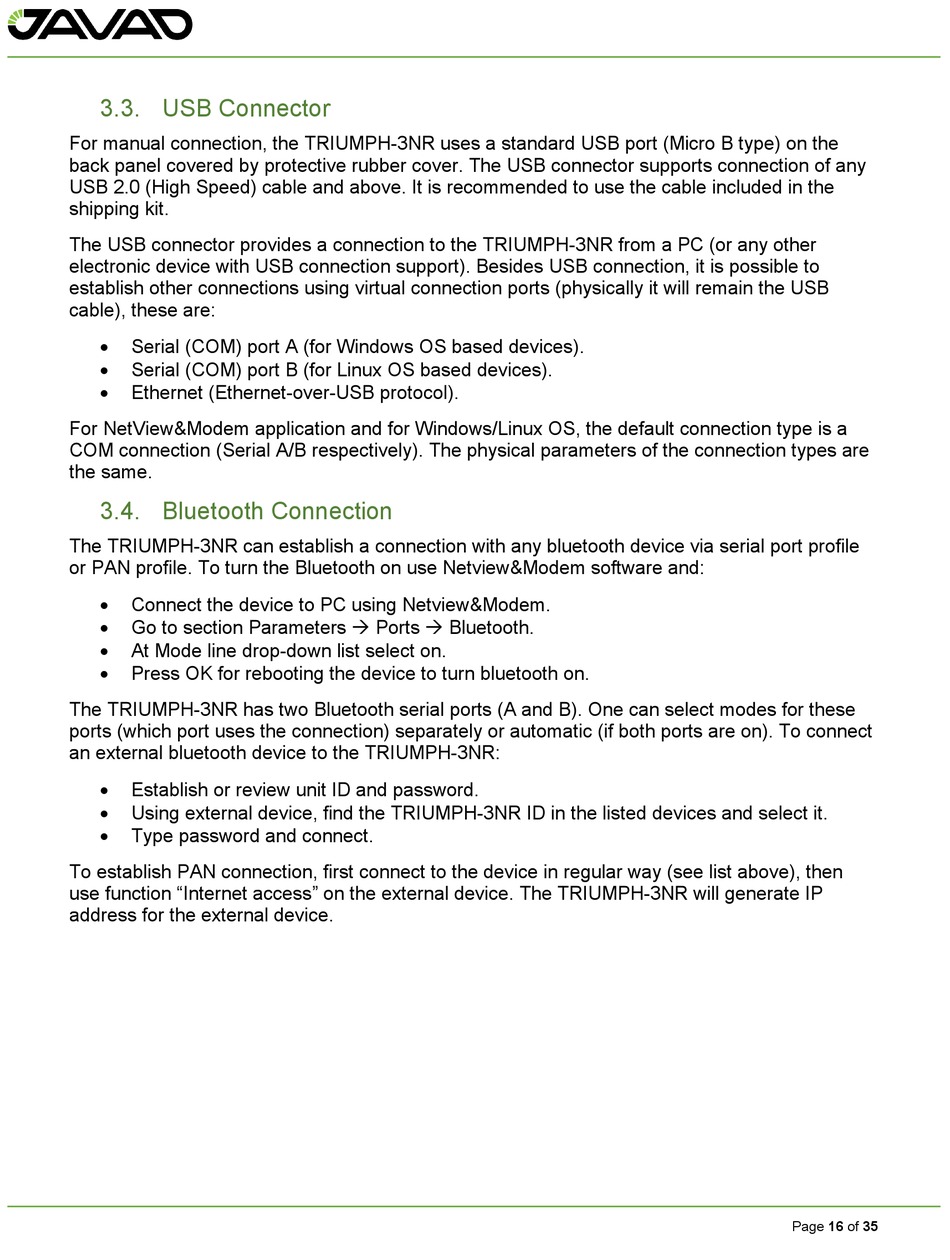

3.3. USB Connector

For manual connection, the TRIUMPH-3NR uses a standard USB port (Micro B type) on the
back panel covered by protective rubber cover. The USB connector supports connection of any
USB 2.0 (High Speed) cable and above. It is recommended to use the cable included in the
shipping kit.
The USB connector provides a connection to the TRIUMPH-3NR from a PC (or any other
electronic device with USB connection support). Besides USB connection, it is possible to
establish other connections using virtual connection ports (physically it will remain the USB
cable), these are:
• Serial (COM) port A (for Windows OS based devices).
• Serial (COM) port B (for Linux OS based devices).
• Ethernet (Ethernet-over-USB protocol).
For NetView&Modem application and for Windows/Linux OS, the default connection type is a
COM connection (Serial A/B respectively). The physical parameters of the connection types are
the same.

3.4. Bluetooth Connection

The TRIUMPH-3NR can establish a connection with any bluetooth device via serial port profile
or PAN profile. To turn the Bluetooth on use Netview&Modem software and:
Connect the device to PC using Netview&Modem.
•
Go to section Parameters  Ports  Bluetooth.
•
• At Mode line drop-down list select on.
• Press OK for rebooting the device to turn bluetooth on.
The TRIUMPH-3NR has two Bluetooth serial ports (A and B). One can select modes for these
ports (which port uses the connection) separately or automatic (if both ports are on). To connect
an external bluetooth device to the TRIUMPH-3NR:
Establish or review unit ID and password.
•
Using external device, find the TRIUMPH-3NR ID in the listed devices and select it.
•
Type password and connect.
•
To establish PAN connection, first connect to the device in regular way (see list above), then
use function "Internet access" on the external device. The TRIUMPH-3NR will generate IP
address for the external device.
