3. Port and Connections

3.1. Block Diagram

The block diagram illustrates the internal connections of the TRIUMPH-3NR.

3.2. Power Management

The TRIUMPH-3NR receiver has an embedded battery pack inside the housing. The battery
pack features:
Power voltage up to 8.3V
Internal Fuel Gauge system that prevents any occasions that can damage the battery
and device (shortcuts, overheating, etc.)
Battery lifecycle – about 25 working hours (all systems on).
Battery charge input – up to 30V.
3.2.1.
Battery Status
The internal battery pack status is shown via LED color on the front panel.
Battery status LED indicator:
PWR LED green
more than 30%

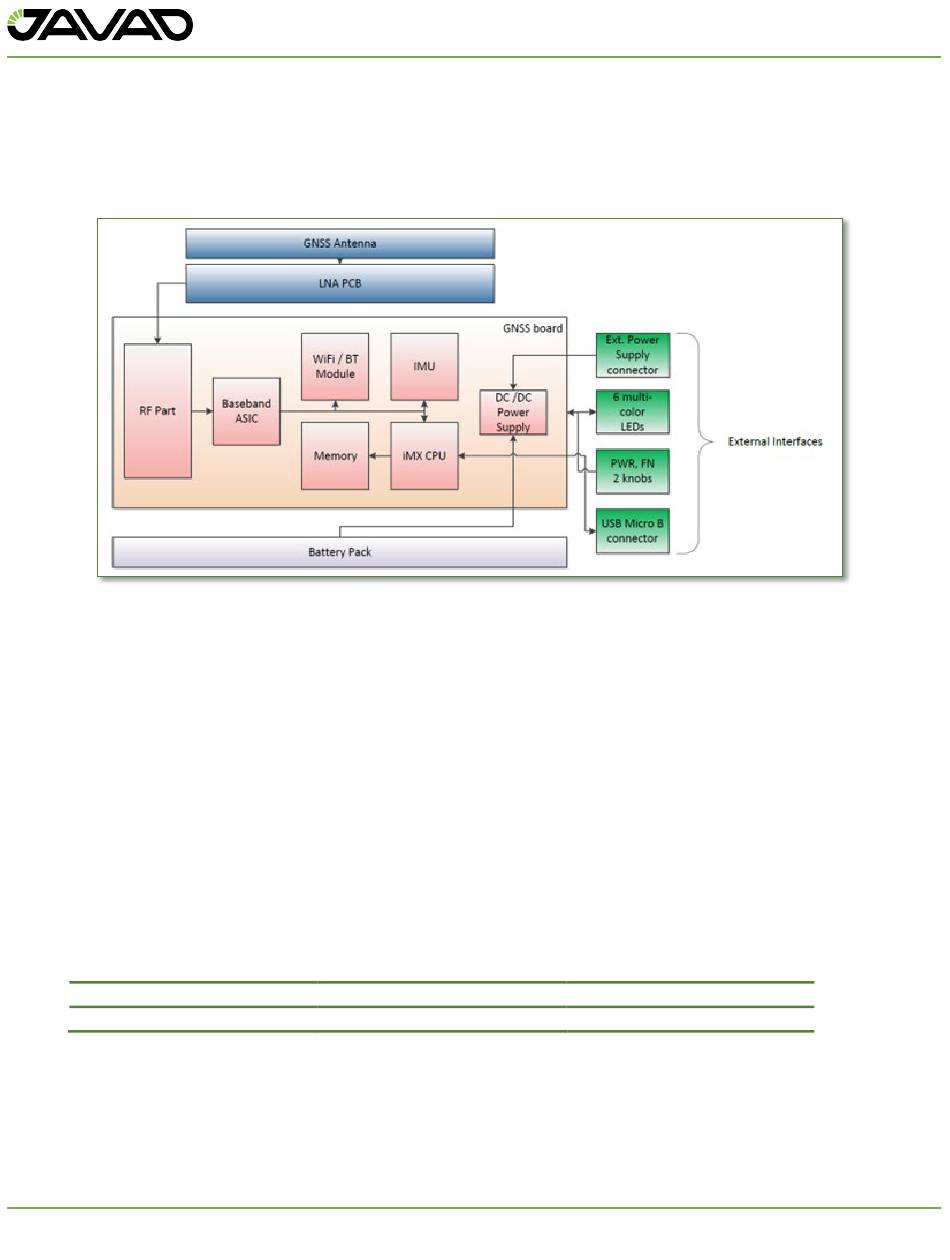

Figure 6: TRIUMPH-3NR Block Diagram
PWR LED yellow
from 30% to 15%
PWR LED red
less than 15%
Page 13 of 35
