- Page 1 Installation Manual SMA SPEEDWIRE/WEBCONNECT DATA MODULE SWWEBCONDM-IA-US_en-14 | Version 1.4 AMERICAN ENGLISH...
- Page 2 All such warranties are expressly disclaimed. Neither SMA America, LLC nor its distributors or dealers nor SMA Solar Technology Canada Inc. nor its distributors or dealers shall be liable for any indirect, incidental, or consequential damages under any circumstances.
- Page 3 A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the SMA equipment and/or other equipment connected to the SMA equipment or personal injury. Symbol...
- Page 4 The product contains no user-serviceable parts. For all repair and maintenance, always return the unit to an authorized SMA Service Center. Before installing or using the product, read all of the instructions, cautions, and warnings in this manual.
-
Page 5: Table Of Contents
SMA America, LLC Table of Contents Table of Contents 1 Information on this Document......7 1.1 Validity. - Page 6 Table of Contents SMA America, LLC 6 Commissioning ........22 6.1 Commissioning a Large-Scale PV Power Plant with...
-
Page 7: Information On This Document
• Knowledge of how an inverter works and is operated • Knowledge of and compliance with this document and all safety precautions 1.3 Additional Information Links to additional information can be found at www.SMA-Solar.com: Document title Document type Firmware Update with SD Card... -
Page 8: Typographies
PV system Small-scale photovoltaic system Small-scale PV system Large-scale photovoltaic power plant Large-scale PV power plant SMA America Production, LLC SMA Solar Technology Canada Inc. SMA Cluster Controller Cluster Controller SMA Speedwire Speedwire SMA Speedwire/Webconnect data module Speedwire/Webconnect data module... -
Page 9: Safety
Speedwire is a cable-based type of communication based on the Ethernet standard and the communication protocol SMA Data2+. This enables inverter-optimized 10/100 Mbit data transmission between Speedwire devices in PV systems. The Webconnect function enables direct data... -
Page 10: Operating Instructions
600 kB per hour. • Since the Internet connection to Sunny Portal is permanent, time-based billing systems should be avoided. High costs could be incurred. SMA recommends using an Internet flat rate. If UMTS is used, VoIP is required If UMTS is used, VoIP (Voice over IP) is required to use the Webconnect function. -
Page 11: Supported Products
STP 20000TL-US-10 STP 24000TL-US-10 * For information on which of these SMA inverters with Speedwire/Webconnect data module support the mode interface of the Speedwire/Webconnect data module, refer to the datasheet "SMA_Modbus-DB-en.xlsx" at www.SMA-Solar.com. ** If the firmware version of the inverter is less than 2.60, you must perform a firmware update for this inverter to version 2.60 or higher. -
Page 12: Scope Of Delivery
3 Scope of Delivery SMA America, LLC 3 Scope of Delivery Check the scope of delivery for completeness and any visible external damage. Contact your distributor if the scope of delivery is incomplete or damaged. Order Option: Speedwire/Webconnect Data Module Pre-Installed in the Inverter Figure 1:... -
Page 13: Product Description

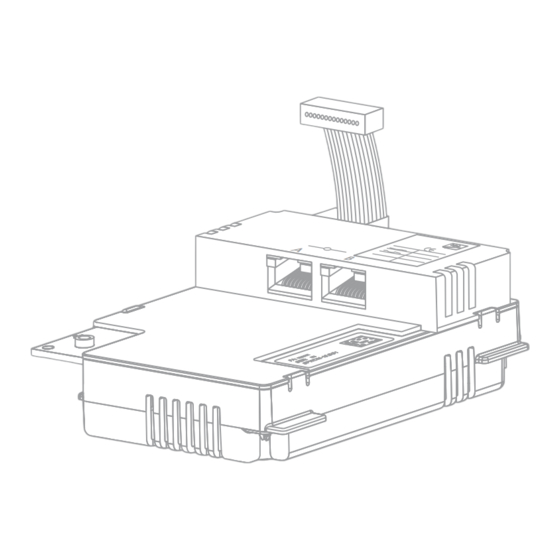

The Speedwire/Webconnect data module is available as a retrofit kit or pre-installed in the inverter. Figure 3: Design of the Speedwire/Webconnect data module * For information on which of the supported SMA inverters (see Section 2.4) support the Modbus interface of the Speedwire/ Webconnect data module, refer to the datasheet "SMA_Modbus-DB-en.xlsx" at www.SMA-Solar.com. Installation Manual... -
Page 14: Possible Network Topologies
The possible network topologies depend on the devices used and on the number of network ports. The Speedwire/Webconnect data module has two network ports. For further information on network topologies, refer to the technical information "SMA Speedwire Fieldbus" at www.SMA-Solar.com. 4.3 Type Label The type label clearly identifies the product. -
Page 15: Cable Gland
SMA America, LLC 4 Product Description 4.4 Cable Gland The cable gland is used to fix the network cables to the inverter enclosure. The cable gland also protects the interior of the inverter from dust intrusion and moisture penetration. Figure 4:... -
Page 16: Connection
5 Connection SMA America, LLC 5 Connection 5.1 Mounting Position and Cable Route Figure 5: Mounting position and cable route in the inverter with the lower enclosure lid open and the display flipped up Position Designation Flipped up display Cable route to the network ports Inverter enclosure opening for cable gland or conduit fitting and conduit •... -
Page 17: Installing The Speedwire/Webconnect Data Module
☐ Cable length between two nodes: max. 164 ft (50 m) with patch cable, max. 328 ft (100 m) with installation cable SMA recommends the following cable types: • For outdoor use: SMA COMCAB-OUTxxx • For indoor use: SMA COMCAB-INxxx* The cables are available in the lengths xxx = 328 ft (100 m), 656 ft (200 m), 1,640 ft (500 m) and 3,280 ft (1,000 m). - Page 18 5 Connection SMA America, LLC 4. Push the pre-mounted filler plug out of the second hole from the left in the inverter enclosure and retain it for future decommissioning. 5. Attach the cable gland to the enclosure opening using the counter nut.
-
Page 19: Connecting The Speedwire/Webconnect Data Module
SMA America, LLC 5 Connection 9. Plug the ribbon cable plug onto the center connector strip. 10. Stick one of the labels with the data for registration in Sunny Portal (PIC and RID) on the outside of the inverter in the vicinity of the type label. - Page 20 5 Connection SMA America, LLC 3. Push the pre-mounted filler plug out of the second hole from the left in the inverter enclosure. 4. If a conduit is to be used, proceed as follows: • Insert one rain-tight or wet-strength conduit fitting into the enclosure opening and fasten from the inside using a counter nut.
- Page 21 SMA America, LLC 5 Connection • Lead the network cables from the outside through the released swivel nut and the cable gland into the inverter. • For each network cable, remove one of the filler plugs from the seal and retain for later decommissioning.
-
Page 22: Commissioning
(see the router manual). If you do not want to use DHCP or your router does not support DHCP, use either the SMA Connection Assist or Sunny Explorer to integrate the inverters with Speedwire/Webconnect data module into the local network (see Section 2.4 "Supported Products", page 11). -
Page 23: Managing Small-Scale Pv Systems With Sunny Explorer
Procedure: 1. Connect the computer to the PV system router with a network cable. 2. If you have used the SMA Connection Assist for static network configuration, ensure that the SMA Connection Assist has terminated. 3. Start Sunny Explorer and create a Speedwire system for the small-scale PV system in Sunny Explorer (see Sunny Explorer help). -
Page 24: Pv System Registration In Sunny Portal
Procedure: • If necessary, adjust the preset ports in the Speedwire/Webconnect data module for Modbus ® ® ® communication (see technical description "SMA Modbus Interface" or "SunSpec Modbus Interface" at www.SMA-Solar.com). 6.5 PV System Registration in Sunny Portal 6.5.1 Registering a Large-Scale PV Power Plant with... - Page 25 SMA America, LLC 6 Commissioning Small-scale PV system with Speedwire/Webconnect data module cannot be combined with other PV systems If you already have a PV system set up in Sunny Portal with a different communication device, e.g. Sunny WebBox, you will still need to create a separate small-scale PV system with Speedwire/Webconnect data module.
-
Page 26: Decommissioning
7 Decommissioning SMA America, LLC 7 Decommissioning 7.1 Disassembling the Speedwire/Webconnect Data Module Danger to life due to electric shock when opening the inverter High voltages are present in the conductive components of the inverter. Touching live components results in death or serious injury. -
Page 27: Troubleshooting
Corrective measures: • Make sure DHCP is enabled for the router • Use SMA Connection Assist or Sunny Explorer to assign an appropriate static IP address to the Speedwire/Webconnect data module. You can obtain the Sunny Explorer and SMA Connection Assist software free of charge from the download area at www.SMA-Solar.com. - Page 28 The firmware version of the inverter is not supported (see Section 2.4, page 11). Corrective measures: • Perform a firmware update on the inverter. For information on performing a firmware update, refer to the technical description "Firmware Update with SD Card" at www.SMA-Solar.com. SWWEBCONDM-IA-US_en-14 Installation Manual...
-
Page 29: Technical Data
SMA America, LLC 9 Technical Data 9 Technical Data General Information Mounting location In the inverter Voltage supply Via the inverter Mechanical Data Width x height x depth ⁄ in x 3 ⁄ in x 1 ⁄ (73 mm x 88 mm x 34 mm) -
Page 30: Compliance Information
2. This device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that changes or modifications not expressly approved by SMA America, LLC could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 31: Contact
SMA America, LLC 11 Contact 11 Contact If you have technical problems with our products, please contact the SMA Service Line. We need the following information in order to provide you with the necessary assistance: • Inverter: – Device type and serial number (see type label) –... - Page 32 SMA Solar Technology www.SMA-Solar.com...
