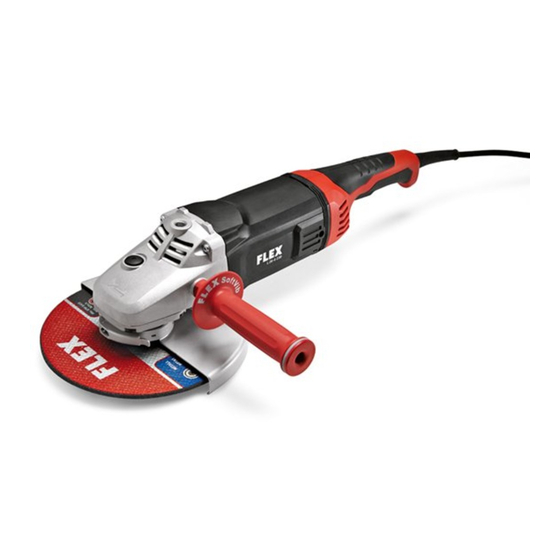

Flex L 26-6 230 Manual

Hide thumbs Also See for L 26-6 230:
Table of Contents

Advertisement

Quick Links

Download this manual
L 26-6 230
Contents
Symbols used in this manual . . . . . . . . 15
Symbols on the power tool . . . . . . . . . . 15
For your safety . . . . . . . . . . . . . . . . . . . 15
Noise and vibration . . . . . . . . . . . . . . . . 18
Technical specifications . . . . . . . . . . . . 19
Overview . . . . . . . . . . . . . . . . . . . . . . . . 20
Instructions for use . . . . . . . . . . . . . . . . 21
Maintenance and care . . . . . . . . . . . . . . 24
Disposal information . . . . . . . . . . . . . . . 24
Declaration of Conformity . . . . . . . . 24
Declaration of Conformity . . . . . . . . 25
Exemption from liability . . . . . . . . . . . . . 25

Symbols used in this manual

WARNING!
Denotes impending danger. Non-
observance of this warning may result
in death or extremely severe injuries.
CAUTION!
Denotes a possibly dangerous situation.
Non-observance of this warning may result
in slight injury or damage to property.
NOTE
Denotes application tips and important
information.

Symbols on the power tool

Before switching on the power
tool, read the operating manual!
Wear goggles!
Protection class II
(completely insulated)
Disposal information for the old
machine (see page 24)

For your safety

WARNING!
Before using the angle grinder, please read
and follow:
these operating instructions,
-
the "General safety instructions" on the
-
handling of power tools in the enclosed
booklet (leaflet-no.: 315.915),
the currently valid site rules and the
-
regulations for the prevention of
accidents.
This angle grinder is state of the art and has
been constructed in accordance with the
acknowledged safety regulations.
Nevertheless, when in use, the power tool
may be a danger to life and limb of the user
or a third party, or the power tool or other
property may be damaged. The angle
grinder may be operated only if it is
as intended,
-
in perfect working order.
-
Faults which impair safety must be repaired
immediately.
Intended use
This angle grinder
- for commercial use in industry and trade,
- is designed for dry grinding and cutting
metal and stone; a special cutting guard
must be used for cutting,
- for surface grinding with sanding sheets
on a backing pad which has been
designed to operate at the speed of the
machine,
- for use with grinding tools and acces-
sories which are indicated in these
instructions or recommended by the
manufacturer.
Not permitted are e.g. chain cutting wheels,
saw blades.
15

Advertisement

Table of Contents
loading

Related Manuals for Flex L 26-6 230

Summary of Contents for Flex L 26-6 230

  • Page 1: Table Of Contents

    L 26-6 230 Contents For your safety Symbols used in this manual ..15 WARNING! Symbols on the power tool ..15 Before using the angle grinder, please read For your safety .
  • Page 2 L 26-6 230 Safety Warnings for Angle Grinder Do not use a damaged accessory. Before  each use inspect the accessory such as WARNING! abrasive wheels for chips and cracks, Read all safety warnings and all instruc- backing pad for cracks, tear or excess tions.
  • Page 3 L 26-6 230 Do not run the power tool while carrying it Do not position your body in the area   at your side. Accidental contact with the where power tool will move if kickback spinning accessory could snag your occurs.

  • Page 4: Noise And Vibration

    L 26-6 230 Safety Warnings Specific for Sanding Do not use worn down wheels from larger  power tools. Wheel intended for larger Operations power tool is not suitable for the higher Do not use excessively oversized sanding  speed of a smaller tool and may burst.

  • Page 5: Technical Specifications

    L 26-6 230 CAUTION! However if the tool is used for different Wear ear protection at a sound pressure applications, with different accessories or above 85 dB(A). poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period.

  • Page 6: Overview

    L 26-6 230 Overview Different electric power tools are described in these instructions. The illustrated electric power tool may differ in detail from the one which you purchased. Spindle Switch handle Threaded flange Switch a Clamping nut Switches the power tool on and off.

  • Page 7: Instructions For Use

    L 26-6 230 Instructions for use Attach the handle WARNING! Before carrying out any work on the angle grinder, always pull out the mains plug. Before switching on the power tool Unpack the angle grinder and check that there are no missing or damaged parts.
  • Page 8 L 26-6 230 Switching on and off Screw the clamping nut with flange face  up, onto the spindle. Brief operation without engaged switch Press and hold down the spindle lock.  Tighten the clamping nut with the face ...
  • Page 9 Press the release button (1.) and simul- the feed.  taneously rotate the switch handle (2.). For further information on the manufac- Release the button. turer’s products go to www.flex-tools.com.  Ensure that the release button is engaged in the respective end position.

  • Page 10: Maintenance And Care

    2006/42/EC, 2011/65/EU. off the angle grinder immediately. Take the Responsible for technical documents: angle grinder to a customer service FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr workshop authorised by the manufacturer. Gears NOTE Do not loosen the screws on the gear head during the warranty period.

  • Page 11: Declaration Of Conformity

    L 26-6 230 Exemption from liability Declaration of Conformity The manufacturer and his representative We as the manufacturer: FLEX Elektro- are not liable for any damage and lost profit werkzeuge GmbH, due to interruption in business caused Business address: Bahnhofstr. 15, by the product or by an unusable product.
