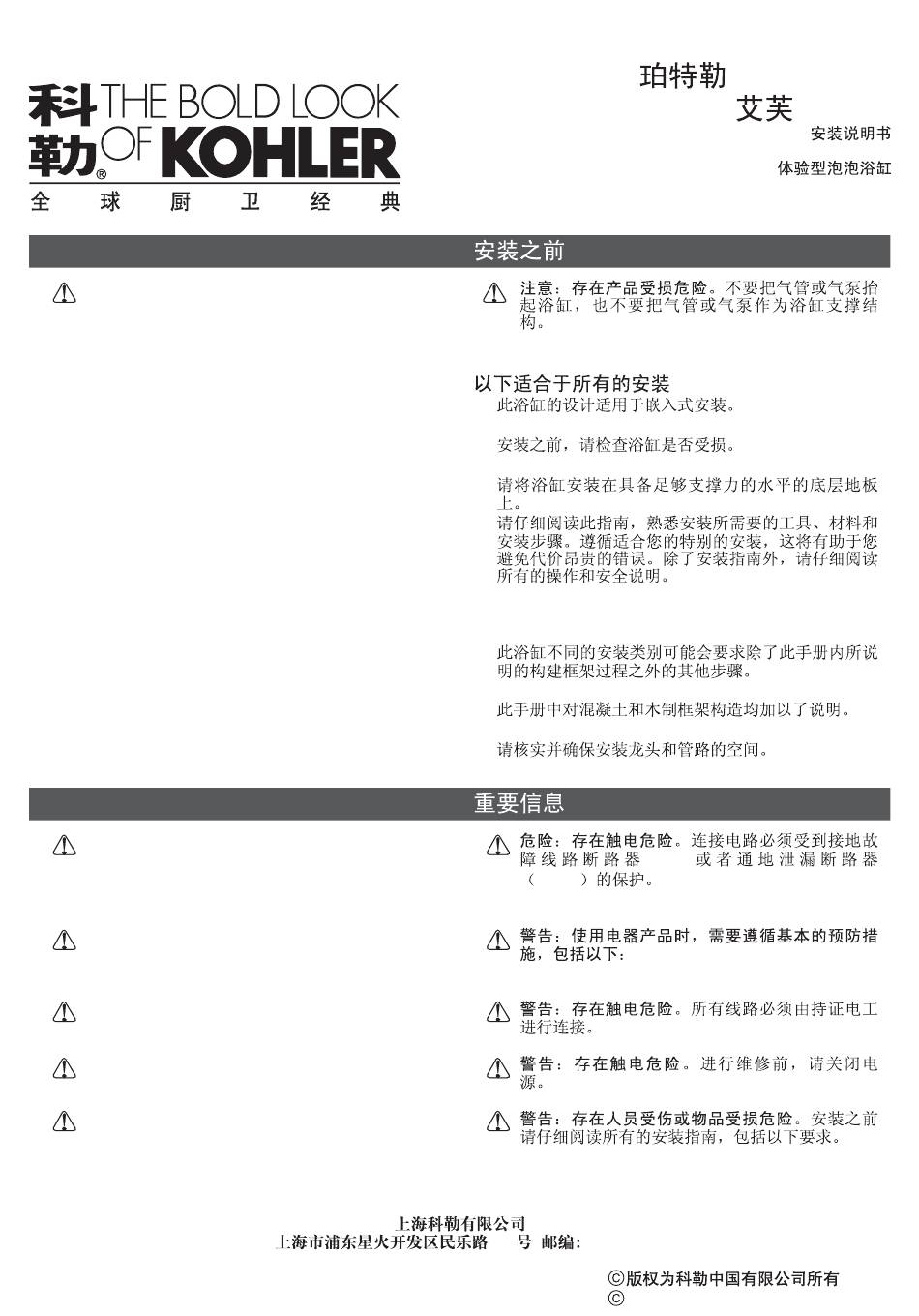

BEFORE YOU BEGIN
BEFORE YOU BEGIN
CAUTION: Risk of product damage. Do not lift
the bath with airjets by the piping or blower motor,
or use the piping or blower motor for structural
support of the bath.
For All Installations
·
We recommend this bath with airjets for drop-in
installation.
·
Inspect the bath for damage before you begin
installation.
·
You must install this bath to an adequately
supported, level subfloor.
·
Please read these instructions carefully to
familiarize yourself with the required tools, material,
and
installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to installation
instructions, read all operating and safety
instructions.
·
The variety of installations possible with this bath
may require framing procedures other than those
described in this manual.
·
Both concrete and wood frame construction
techniques are discussed in this manual.
·
Confirm adequate mounting and connection space
for the faucet specified for your installation.
IMPORTANT INFORMATION
DANGER: Risk of electric shock.
to circuits protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB).
WARNING: When using electrical products,
basic precautions should always be followed,
including the following:
WARNING: Risk of electric shock.
electrician should make all electrical connections.
WARNING: Risk of electric shock.
power before servicing.
WARNING: Risk of injury or property damage.
Please read all instructions thoroughly before
beginning installation, including the following
requirements.
1070462-T01-B
·
·
·
·
·
·
·
Connect only
A licensed
Disconnect
368
-1-
INSTALLATION INSTRUCTIONS
EXPERIENCE BUBBLE MASSAGE BATH
K-1457T-G, K-1744T-G1P/G58
(GFCI)
ELCB
201419
Copyright Kohler China Ltd., 2007
PORTRAIT
EVOK
, 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-1457T-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kohler K-1457T-G

Summary of Contents for Kohler K-1457T-G

  • Page 1 WARNING: Risk of electric shock. Disconnect power before servicing. WARNING: Risk of injury or property damage. Please read all instructions thoroughly before beginning installation, including the following requirements. 201419 , 2007 1070462-T01-B Copyright Kohler China Ltd., 2007...

  • Page 2: Electrical Requirements

    Kohler China shall not be liable under its warranty or otherwise for personal injury or damage caused by any such unauthorized modification.

  • Page 3: Tools And Materials

    Product Information (cont.) Factory Assembled Features Factory assembled components include a blower motor, air harness, control, check valve, butterfly valves, chromatherapy lights (if provided), electrical harnesses, and an illuminated user keypad. Other than power wiring and plumbing, no assembly is required. Connections and Service Access NOTICE: Provide unrestricted service access to the blower motor.
  • Page 4 ROUGHING-IN K-1457T-G UNIT:mm Note: The blower and piping protrude beyond the rim. Access Panel Access Panel 1702 1067 Blower/Control Access 864 W 381 H Drain/Switch Access Panel 864 W 500 H Product Information Bath K-1457T-G K-1457T-G Bath with chromatherapy K-1457T-GCR...
  • Page 5 K-1744T-G1P/G58 UNIT:mm Note: Try to avoid the air channel below the rim during the installation. 1800 Access Panel Access Panel Drain/Switch Access Panel 1000 W 500 H 1000 Blower/Control Access 800W 380H Product Information Bath K-1744T-G1P/G58 K-1744T-G1P/G58 Bath with chromatherapy K-1744T-G1PCR/G58CR K-1744T-G1PCR/G58CR Fixture*:...

  • Page 6: Installation

    Notes The blower and piping protrude beyond the rim. Install this product according to the installation guide. GB/T 1804-1992V Fixture dimensions are nominal and conform to tolerances in GB/T 1804-1992V. Floor support under bath must provide for a minimum 816.5 kg of 816.5 kg.
  • Page 7 1. Prepare the Site - Wood Construction (cont.) · Make sure the flooring offers adequate support for · your bath, and verify that the subfloor is flat and level. · · For drop-in installation: Carefully lay out and cut the rough deck material. Use the cutout template if one is provided, or refer to the roughing-in cutout information.
  • Page 8 2. Prepare the Site - Concrete Construction (cont.) · Make sure the flooring offers adequate support for · your bath, and verify that the subfloor is flat and level. · Provide access panels as required to service the · blower motor and control. ·...
  • Page 9 4. Secure the Bath with Airjets to the Subfloor - Standard CAUTION: Risk of product damage. Do not lift the bath with airjets by the piping or blower motor, or use the piping or blower motor for structural support of the bath. CAUTION: Risk of product damage.
  • Page 10 4. Secure the Bath with Airjets to the Subfloor - Standard (cont.) Option for Using Silicone Sealant · · With help, carefully lift the bath into position. · · Insert the drain tailpiece into the trap. Make sure the bath is level and resting on all support blocks. ·...
  • Page 11 6. Connect the Electrical Service - Standard (cont.) NOTE: The bath model number is printed on a label near the bath blower motor. This label also identifies the electrical rating of the bath. All baths come 220/240 50 60 equipped with a wiring junction box and will only operate at 220 V through 240 V and at 50 Hz or 60 IMPORTANT! The bath controls, bath system, and...
  • Page 12 7. Test Run the Bath with Airjets - Standard NOTE: For additional information on operating the bath with airjets, see the Confirm Proper Operation Section. · · Check all electrical connections. Make sure the electrical power to the bath with airjets is turned on. ·...

  • Page 13: Clean-Up After Installation

    8. Complete the Finished Deck For Drop-Installations · · If you have not already done so, carefully remove the protective tape from the bath rim. · · Cover the framing with water-resistant deck material. Seal the joints between the bath rim edge and the water-resistant deck material with silicone sealant.

  • Page 14: Confirm Proper Operation

    11. Confirm Proper Operation For All Installations · · Power On/Off - Turns the blower motor on and off. Symbols illuminated in blue indicate available modes/features. Modes which are operating will display in green. · · Activate Button - Press OK to activate the desired mode.

  • Page 15: Operating Sequence

    11. Confirm Proper Operation (cont.) · · User Keypad leep Modes - To enhance your bathing experience, the keypad is programmed to darken after approximately 15 seconds of inactivity. Only the last feature selected will remain illuminated. To resume normal operation, press any key or turn the outer ring.
  • Page 16 12. Operating Sequence (cont.) · · If provided, verify that all four chromatherapy lights are illuminated. The cycling of colors may not be readily apparent as the cycle time may be rather long. NOTE: The purge cycle mode cannot be selected while there is water in the bath.

  • Page 17: Troubleshooting Procedures

    14. Troubleshooting Procedures For All Installations This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale Distributor.
  • Page 18 TROUBLESHOOTING THE BATH WITH AIRJETS SYSTEM TROUBLESHOOTING THE BATH WITH AIRJETS SYSTEM This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor.
  • Page 19 GFCI ELCB A. Control program is locked. A. Reset GFCI or ELCB. 3. User keypad is B. P5 plug assembly harness from B. Check wiring for proper connections. Replace the illuminated, but user keypad to control is loose, wiring harness if necessary. Refer to your installer does not disconnected, or damaged.
  • Page 20 A. Blower motor inlet is blocked. A. Clean blower motor inlet. 7. Blower motor B. Use a small between-the-teeth dental brush and runs but no air B. Airjets are clogged. white vinegar. Dip the brush in the vinegar, brush bubbles are the hole, rinse the brush in clean water, and then formed.
  • Page 21 A. Zone is not selected. A. Select the zone as per the instructions in the “ ” Confirm Proper Operation section. 10. A zone does B. Butterfly valve does not work. B. Replace the butterfly valve. Refer to your installer or wholesale dealer.
  • Page 22 PORTRAIT EVOK SERVICE PARTS PAGE EXPERIENCE BUBBLE MASSAGE BATH K-1457T-G, K-1744T-G1P/G58 Chromatherapy system is not provided with K-1744T-G1P/G58/K-1457T-Gl bath. Note: All tubing 1 unless otherwise noted. K-1744T-G1P/G58/K-1457T-Gl 1039254-J-0 Keypad flagship Bubble bath W/O Lights 1020677 Gasket Chromatherapy system is not provided with...
  • Page 23 PORTRAIT EVOK SERVICE PARTS PAGE EXPERIENCE BUBBLE MASSAGE BATH K-1457T-G, K-1744T-G1P/G58 1033678 Screw 61776 Lock Washer 73519 93892-A Water Lever Probe Electrical Box 67065 Ground Lug 63270 93841 Washer 60129 Screw 93893 Cover 93003 Strain Relief 102177 Wire Harness 93836-(1/2") 93838-(1")
