ROTONDI MINI 3 Instruction And Maintenance

INSTRUCTIONS AND MAINTENANCE
Read these directions carefully before operating.
Don't use the machine differently from the following description.
SPECIFICATIONS
1.
MODEL:
POWER SUPPLY:
TOTAL INSTALLED POWER:
IRON POWER:
BOILER POWER:
BOILER CAPACITY:
IRONING ENDURANCE:
OPERATING STEAM PRESSURE:
MAXIMUM PRESSURE:
WEIGHT:
OVERALL DIMENSIONS:
MADE IN ITALY
HOOK FOR
CABLE SUPPORT
SPRING
IRON
IRON REST
5. Put the iron on its rubber iron rest For MINI 3 supplied with trolley: screw the trolley knob
on the proper connection under the base of the machine (fig. 2).
MINI 3
MOD. MINI 3
CABLE SUPPORT
HANDLE

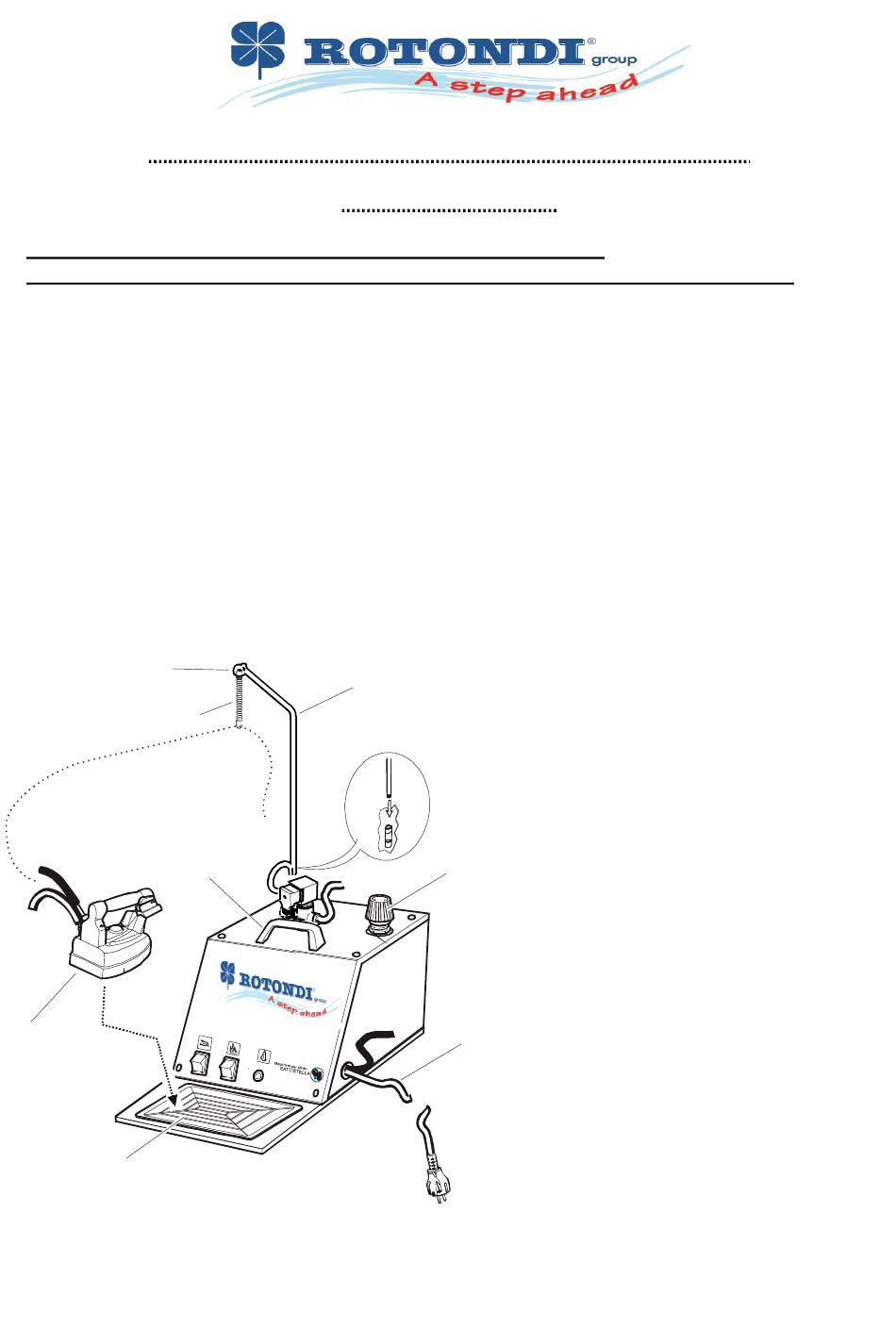

Fig. 1
MINI 3
230 V
W 1800
W 800
W 1000
L. 2,15
about 3 hours
2,7-2,8 BAR
5 BAR
KG. 8
cm 24x38x28 h.
SECURITY
VALVE PLUG
ELECTRIC
WIRE
p. 1
2. IMPORTANT
Before installing MINI 3, it is
necessary to set up the following
facilities:
1. electrical plug protected and
suitable to MINI 3 power (it is
better to use an earth protector
magnetothermic switch 16 A ld
30mA).
2. a steady and plane surface
where to put the machine.
For the transport
displacement, take the generator
only by the handle, never pull its
electric wires (fig. 1).
3. OPENING OF PACKAGE
1. Open the box containing
2. MINI 3, take the instructions
manual and read it carefully.
3. Remove MINI 3 from the box,
insert the cable support deep
into the special support holder
(fig. 1) placed on the back side
of the generator.
4. Fix iron cable to the support
hook (avoid twining).
and the
