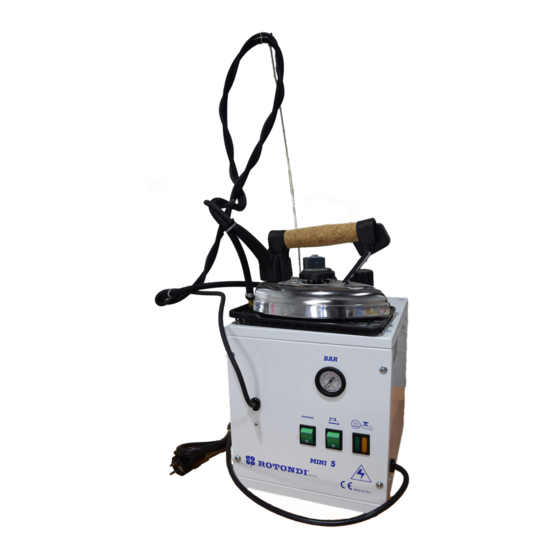

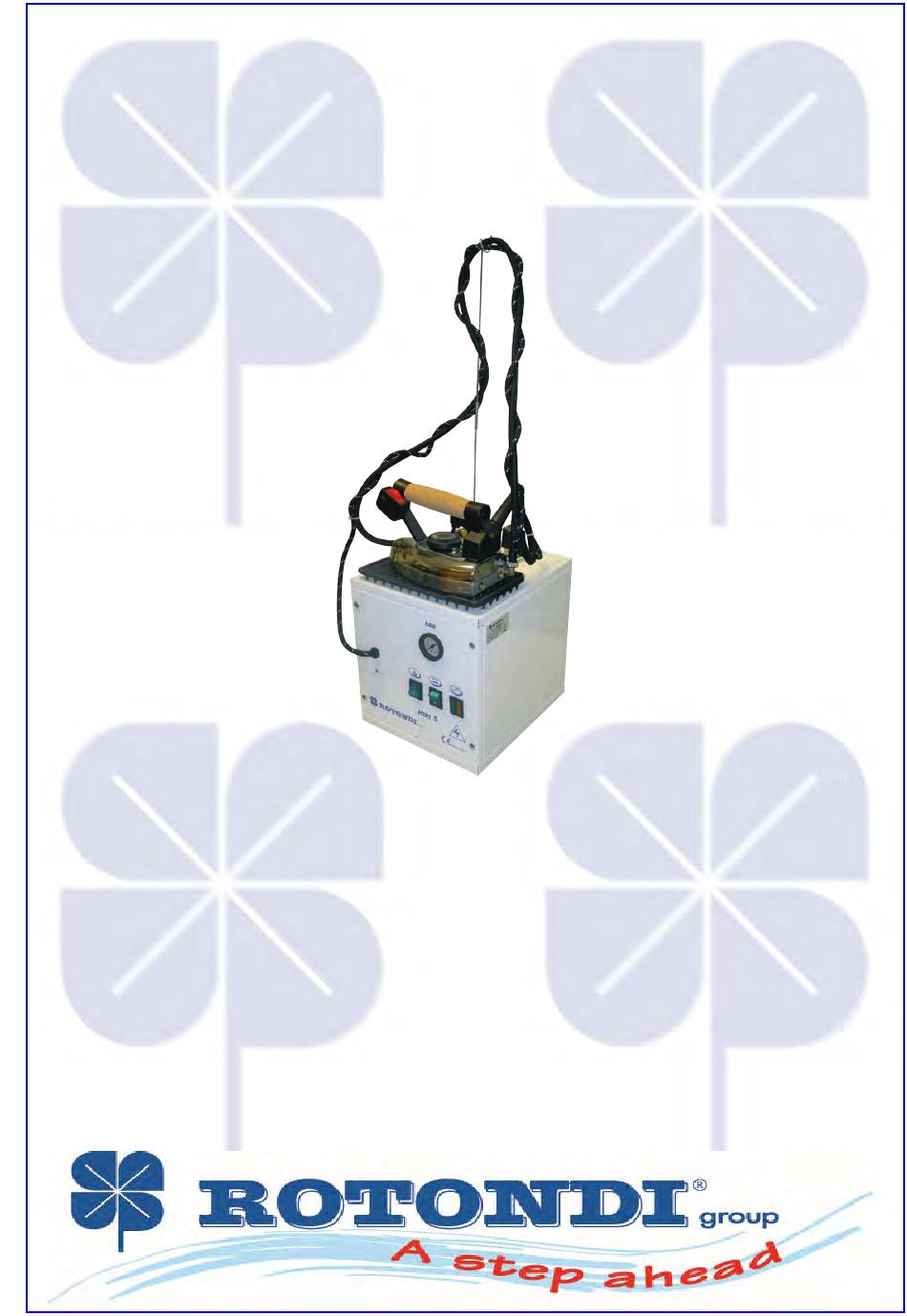

- Page 1 Instructions and Maintenance SERIES MINI 5...
- Page 3 Series Mini 5 REV. 2015 INSTRUCTIONS AND MAINTENANCE MOD. MINI 5 Read these directions carefully before operating. Don’t use the machine differently from the following description. 1. SPECIFICATIONS MODEL: MINI 5 POWER SUPPLY: 230 V / Hz 50-60 TOTAL INSTALLED POWER: W 2500 IRON POWER: W 800...
- Page 4 Series Mini 5 REV. 2015 OPENING OF PACKAGE Open the box containing MINI 5, take the instruction manual and read it carefully. Remove MINI 5 from the box, insert the cable support deep into the special support holder (fig. 1) placed on the back side of the generator. Fix iron cable to the support hook (avoid twining).
- Page 5 Series Mini 5 REV. 2015 Never replace the security valve plug (fig.3) with other types of plug. P.S. the security valve plug is set on 4,5 BAR and it has the function of a security valve. Connect MINI 5 to suitable protected socket. Always keep children away from MINI 5, both when it is on and off.
- Page 6 Series Mini 5 REV. 2015 WATER FILLING During the ironing, if steam flow decreases considerably and then ends definitely, it means that there is no more water in the boiler. So MINI 5 has to be switched off by disconnecting the plug;...
- Page 7 Series Mini 5 REV. 2015 ELECTRICAL RISKS The following situations are considered dangerous for the operator: 1. earth protector switch is activated when turning on the main switch, 2. using MINI 5 during thunderstorms, 3. when using MINI 5 without shoes or with improper shoes or with wet feet 4.
- Page 8 (included, without any limitation, consequential damages due to loss or no profit, cutback or any other economical loss) deriving form the use of a ROTONDI GROUP machine, even in case the Company had been previously informed of such kind of possibility.
- Page 9 Series Mini 5 REV. 2015 REFERENCE TO NORMS AND TERMINOLOGY EMPLOYED Indications contained in the following documents were used in the compilation of the present manual: - UNI EN ISO 12100 - Machinery safety: general principles for design - risk assessment and risk reduction - EN 294 - Machinery safety: Stop equipment to prevent the attainment of dangerous areas whit upper limb...
- Page 10 Series Mini 5 REV. 2015 See drawing representing steam iron's spare parts pag. 8...
- Page 11 Series Mini 5 REV. 2015 Spare parts Q.ty DESCRIPTION PART NUMBER Iron REC100 Iron cable 4x1 3060004 Iron steam hose 3067012 Rubber cable holder 3067029 Connector 3067004 Fitting steam 1/4" 3067030 È Coil 3067005 Solenoid valve 1/4" 3067006 Nut 1/4" 3067031 3067032 Washer 1/4"...
- Page 12 Series Mini 5 REV. 2015 Spare parts Q.Ty DESCRIPTION PART NUMBER 1/8" Pressostat 2,8 Bar 3067028 165°C Thermostat + thermofuse 298° C 3067046 Element 1700 W 3067100 3067025 Terminal block 3067022 Element ring 3067047 Cap 1/4" 3067039 Rubber feet 3067014 Electric cable Cable holder 3067014...
- Page 13 Series Mini 5 REV. 2015 Iron Mod. EC100 3060004 3014002 3060093 3060058 3033024 13033040 3033041 3026208...
- Page 14 Series Mini 5 REV. 2015 Accessories DESCRIPTION Vacuum table Mod. Mini 9 Arm RA1 for vacuum table pag. 12...
- Page 15 Series Mini 5 REV. 2015 Accessory Series Mini 3 Inox Series Mini 4 Series Mini 5 with trolley Series Mini 5 pag. 13...
