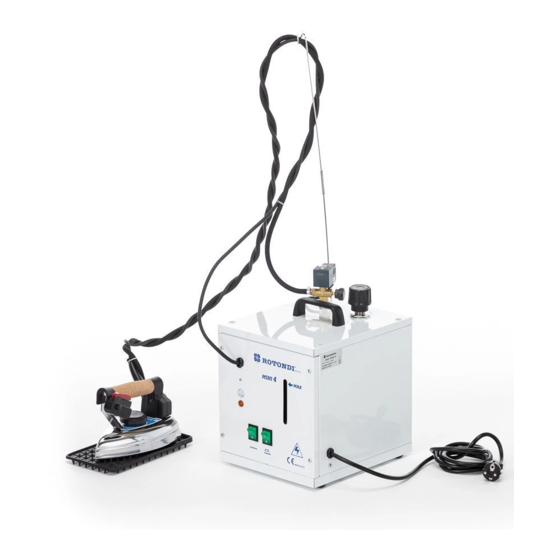

ROTONDI MINI 4 Instruction And Maintenance

INSTRUCTIONS AND MAINTENANCE
Read these directions carefully before operating.
Don't use the machine differently from the following description.

1. SPECIFICATIONS

MODEL:
POWER SUPPLY:
TOTAL INSTALLED POWER:
IRON POWER:
BOILER POWER:
BOILER CAPACITY:
IRONING ENDURANCE:
OPERATING STEAM PRESSURE:
MAXIMUM PRESSURE:
WEIGHT:
OVERALL DIMENSIONS:
MADE IN ITALY

2. IMPORTANT

Before installing MINI 4, it is necessary to set up
the following facilities:
- electrical plug protected and suitable to MINI 4
power (it is better to use an earth protector
thermo magnetic switch 16 A ld 30mA).

OPENING OF PACKAGE

3.
1. Open the box containing MINI 4, take the
manual of instructions and read it carefully.
2. Remove MINI 4 from the box, insert the cable
support deep into the special hole (fig. 1) placed
on the back side of the generator.
3. Fix the spring to the support hook, place the
iron rest on the table and put the iron over it
(fig. 1).

CONNECTION AND STARTING

4.
With MINI 4 switched off and disconnected plug:
1. Unscrew the security valve plug (fig. 1), fill the boiler with water till MAX level (fig. 2-4).
Take the plug by the plastic part and screw it again: do not tighten too much or its gasket
might get spoilt. N.B. make sure the exhaust tap of the boiler is closed.
2. Insert the plug into a 220 V 16 A socket.
MINI 4
MOD.MINI 4
MINI 4
230 V
W 2300
W 800
W 1500
L. 2,7 ( INOX)
about 3/4 hours
2,7-2,8 BAR
5 BAR
KG. 15
cm 25x29x89 h.
ELECTRIC WIRE
IRON
IRON REST
p. 1
CABLE
SUPPORT
HOOK
SPRING
STEAM
TUBE
STEAM
TUBE

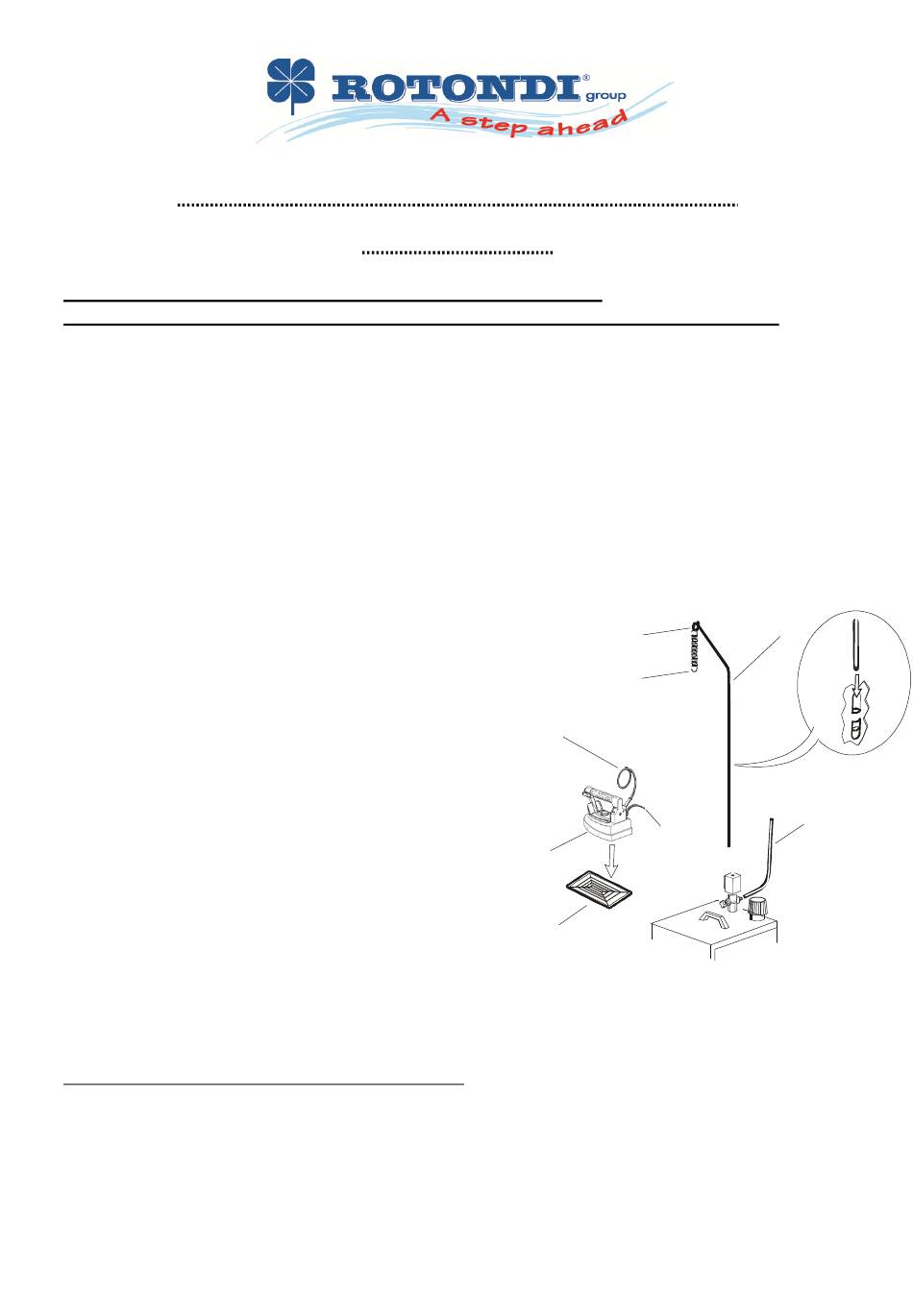

Fig. 1
MARCH 2011
