Summary of Contents for Total TIWLI2001

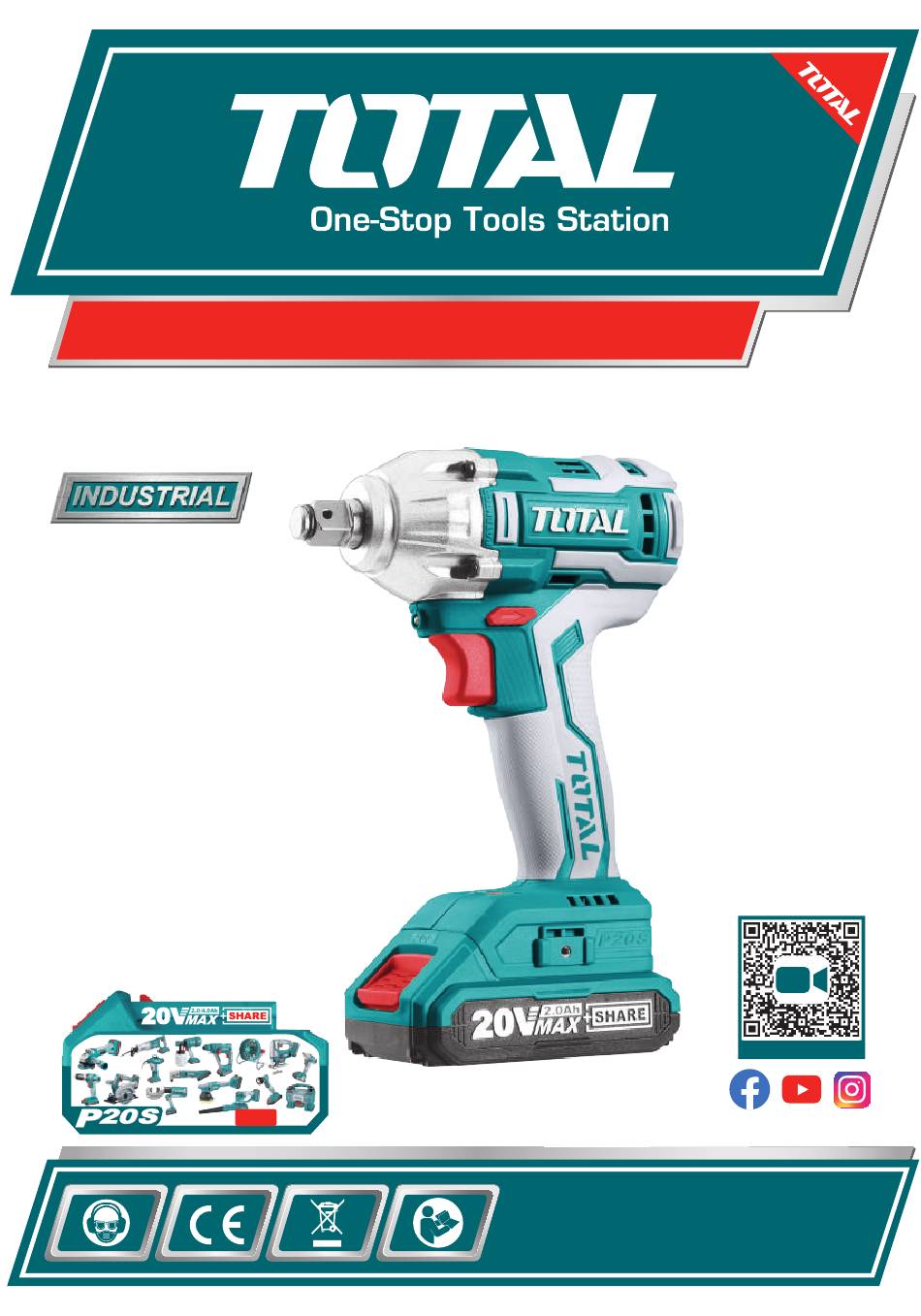

- Page 1 LITHIUM-ION IMPACT WRENCH TIWLI2001,UTIWLI2001,TIWLI20010,TIWLI2001E,TIWLI2001S, TIWLI2001M,TIWLI2001A,TIWLI2001X,TIWLI2001-X (X Stands for 1 to 9) SCAN FOR VIDEO 150+ SAME BATTERY TOOLS TOTAL TOOLS WORLD...
- Page 2 The symbols in instruction manual and the label on the tool Double insulated for additional protection. Read the instruction manual before using. CE conformity. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
- Page 3 GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 reduces the risk of electric shock. Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 5 c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
-
Page 6: Specifications
ENGLISH (Original instructions) SPECIFICATIONS TIWLI2001,TIWLI2001E,TIWLI20010,TIWLI2001S,TIWLI2001-X,TIWLI2001M, Model Number TIWLI2001A,TIWLI2001X (X stands for 1 to 9) M10 - M20 Standard bolt Fastening capacities M10 - M16 High tensile bolt 5 mm - 14 mm High tensile bolt 0 - 2100 /min Hard impact mode... - Page 7 ENGLISH (Original instructions) Cordless impact driver safety Symbols warnings The followings show the symbols used for tool. Hold power tool by insulated gripping sur- faces, when performing an operation where volts the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live"...
-
Page 8: Functional Description
To install the battery cartridge, align the tongue on the CAUTION: Only use genuine battteries. TOTAL battery cartridge with the groove in the housing and slip Use of non-genuine batt eries, or batteries that TOTAL it into place. -
Page 9: Overheat Protection
This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a TOTAL service NOTE: Depending on the conditions of use and the center. - Page 10 You can change the impact force in three steps: hard, soft. This allows a tightening suitable to the work. Every time the button is pressed, the number of blows High Change changes in two steps. Only Clockwise ! only when running ! Reversing switch action 1.
-
Page 11: Installing Hook
ASSEMBLY Installing hook CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Selecting correct impact socket Always use the correct size impact socket for bolts and nuts. -
Page 12: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by TOTAL Authorized or Factory Service 1. Fastening time (second) 2. Fastening torque Centers, always using TOTAL replacement parts. NOTE: Hold the tool pointed straight at the bolt or nut. - Page 13 TIWLI2001,UTIWLI2001,TIWLI20010,TIWLI2001E,TIWLI2001S, TIWLI2001M,TIWLI2001A,TIWLI2001X,TIWLI2001-X (X stands for 1 to 9) Exploded view...
- Page 14 TIWLI2001,UTIWLI2001,TIWLI20010,TIWLI2001E,TIWLI2001S, TIWLI2001M,TIWLI2001A,TIWLI2001X,TIWLI2001-X (X stands for 1 to 9) Spare part list Part Description Part Description Tapping Screw ST3.9*22 Left&Right Shell Gear Box Assy & Hammer Assy Function Panel Stator Terminal Motor Gear Controller Rotor Trigger F/R Change Lever Tapping Screw ST3.5*16...
- Page 15 LITHIUM-ION IMPACT WRENCH www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road , Suzhou Industrial Park , China. MADE IN CHINA T0422.V08...
- Page 16 LITHIUM-ION CORDLESS DRILL TDLI200215,UTDLI200215...
- Page 17 Original Instructions...
- Page 18 Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Cluttered and dark areas invite accidents.
- Page 19 A moment of inattention while operating power tools may result in serious personal injury. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. A wrench a key left attached rotating part of the power tool may result in personal injury.
- Page 20 Power tools are dangerous in the hands of untrained users. Many accidents are caused by poorly maintained power tools. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 21 Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. This will ensure that the safety of the power tool is maintained. Service of battery packs should only be performed by the manufacturer or authorized service providers.
- Page 22 SPECIFICATIONS Model Number TDLI200215 UTDLI200215 Drill voltage Mechanical speed settings No-load variable speed 0-400/0-1500 /min 0-400/0-1500 /min Torque settings 15+1 15+1 Max torque force 45Nm 45Nm Keyless chuck capacity 0.8-10mm 1/32 -3/8 and battery cartridge may differ from country to country. SAVE THESE INSTRUCTIONS.
-
Page 23: Installing Or Removing Battery Cartridge
FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch off the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- 1. -
Page 24: Speed Change
Depress the reversing switch lever from the is released, have the tool serviced at a TOTAL service A side for clockwise rotation or from the B side for coun- center. - Page 25 Adjusting the fastening torque 1. Adjusting rin raduation 3.Arrow The fastening torque can be adjusted in 16 steps by turning the adjusting ring. Align the graduations with the arrow on the tool body. You can get the minimum fastening torque at 1 and maximum torque at marking.
- Page 26 CAUTION: CAUTION: CAUTION: CAUTION: CAUTION: CAUTION: CAUTION: CAUTION: CAUTION: CAUTION:...
- Page 27 TDLI200215,UTDLI200215 Exploded view...
- Page 28 TDLI200215,UTDLI200215 Spare part list No. Part Description Screw M5*25 Left Drill Chuck 10mm Gear Box Assy Motor Gear Screw&Washer M3*6 Motor Plate Motor Rubber Ring Click Spring 10 Left&Right Housing 11 Switch&Terminal 12 F/R Change Lever 13 Shift Knob Spring 14 Shift Knob 15 Tapping Screw ST3.5*16...
- Page 29 SCAN FOR VIDEO www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. TOTAL TOOLS WORLD MADE IN CHINA T0622.V03 No. 45 Songbei Road, Suzhou Industrial Park, China.
