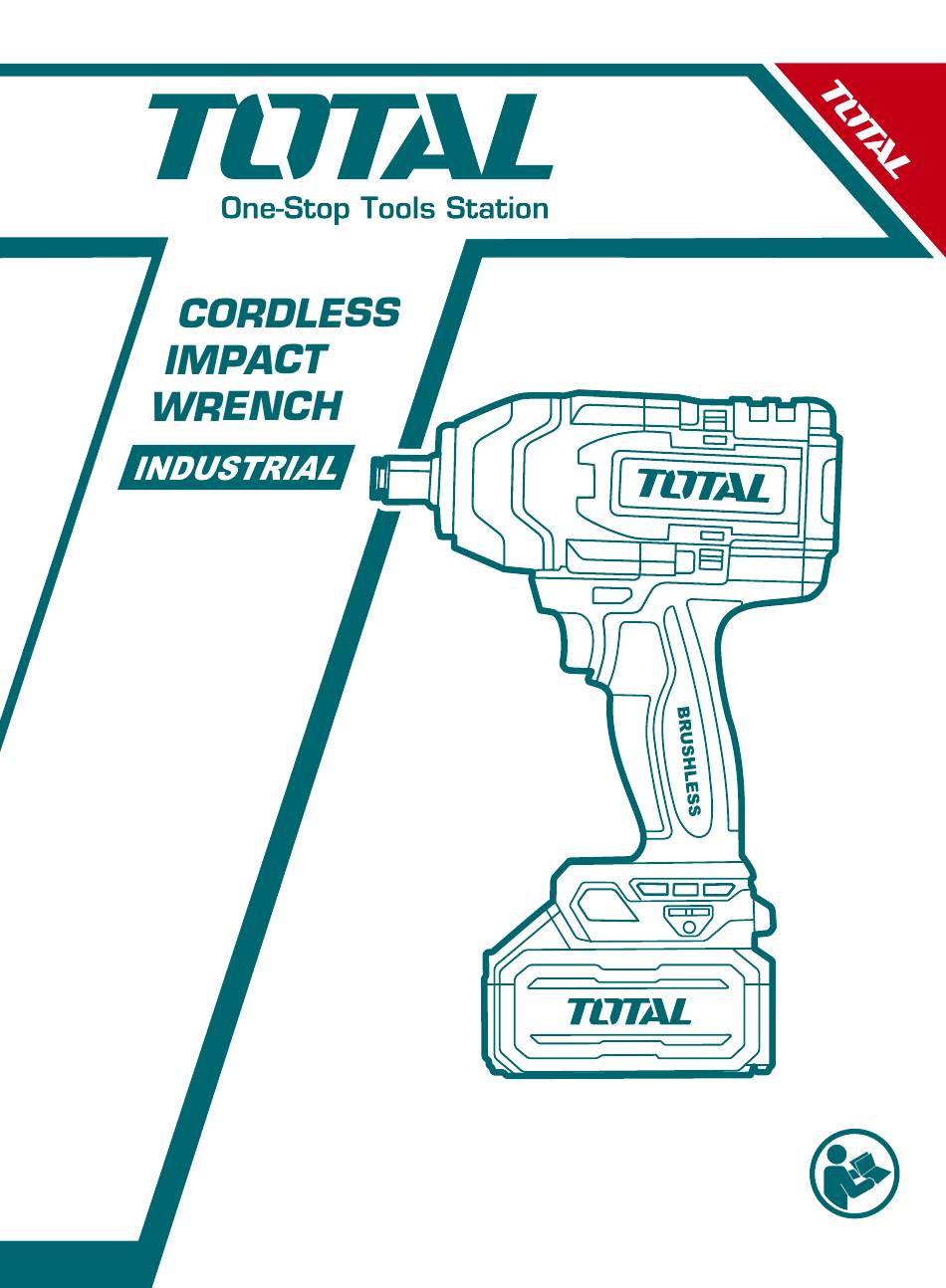

- Page 1 PRODUCT MANUAL TIWLI2085 TIWLI2085xy UTIWLI2085 UTIWLI2085xy x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION! Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 8 | English • Do not expose battery cartridge to water or rain. • A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).
- Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 11: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING ⚠ Cordless impact wrench safety warnings Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. -
Page 12: Specifications
| English SPECIFICATIONS Components 1/2˝ Square drive Forward and reverse rotation control LED work light Switch... -
Page 13: Technical Specifications
| English Technical specifications Model No. TIWLI2085 TIWLI2085xy UTIWLI2085 UTIWLI2085xy Square drive 12.7mm (1/2˝) 12.7mm (1/2˝) No load speed 0-1600/0-2100/0-2400rpm 0-1600/0-2100/0-2400rpm Impacts per minute 0-1500/0-1800/0-2200bpm 0-1500/0-1800/0-2200bpm Fastening torque 850Nm 850Nm Nut busting torque 1000Nm 1000Nm Fastening capacities M10-M24 M10-M24 (standard bolt) Fastening capacities M10-M18 M10-M18... - Page 14 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity TFBLI2001 2.0Ah TFBLI2001xy TFBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah TFBLI2002xy TFBLI2053 5.0Ah TFBLI2053xy Model No.
- Page 15 | English OPERATION PICTURE...
-
Page 16: Function Description
| English FUNCTION DESCRIPTION ⚠ CAUTION! Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool Installing or removing battery cartridge (see Figure A) Figure A: 1. Button 2. Battery cartridge ⚠... - Page 17 | English Indicator lamps Remaining capacity Lighted >80% 30% to 80% <30% NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. Tool / battery protection system The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life.
-
Page 18: Electric Brake
| English by increasing pressure on the switch trigger. Release the switch trigger to stop. NOTE: The tool automatically stops if you keep pulling the switch trigger for about 6 minutes. Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a service center. - Page 19 | English neutral position. This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counter clockwise rotation. When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.
- Page 20 | English Specifications of each impact force grade Impact force grade Maximum Application Work displayed on panel blows Tightening when Assembling the big High 2200min (/min) force and speed diameter bolt are desired. Tightening when Assembling the Middle 1800min (/min) force and speed middle diameter are desired.
-
Page 21: Operation
| English OPERATION ⚠ CAUTION! Always insert the battery cartridge all the way until it locks in place. If you can see the red indicator on the upper side of the button, it is not locked completely. Insert it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. - Page 22 | English Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the class of bolt and the bolt length. The use of the universal joint or the extension bar somewhat reduces the fastening force of the impact wrench.
- Page 23 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 24 TOTAL TOOLS WORLD MADE IN CHINA T0824.V02 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No.20 Dagang Road, Fuqiao Town, Taicang City, China SCAN FOR VIDEO...
