Summary of Contents for Total TAT40111

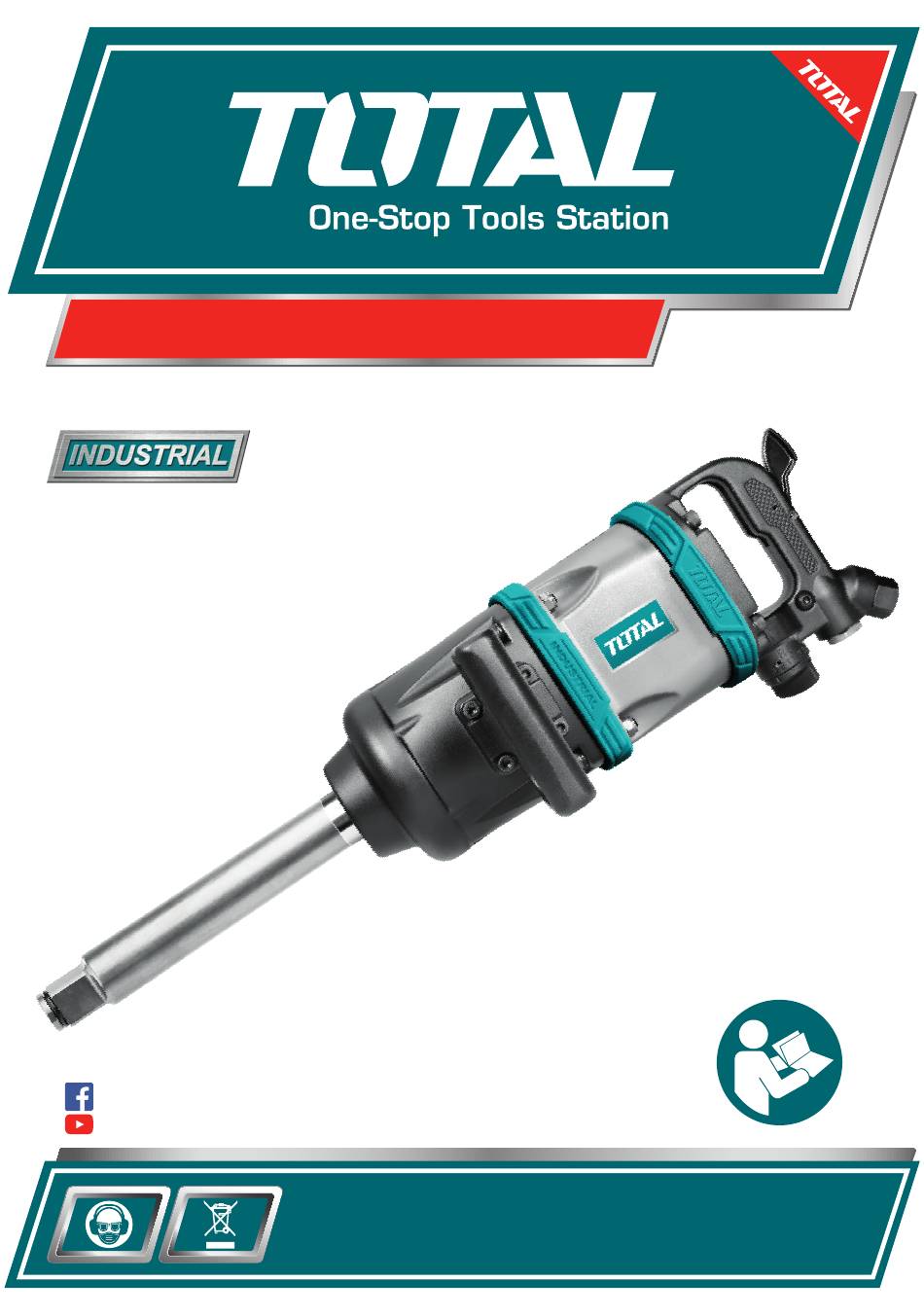

- Page 1 1˝ AIR IMPACT WRENCH TAT40111 totaltoolsworld TOTAL TOOLS WORLD 3100N.m...
- Page 2 Technical Data Square drive…………………………………………………………………………………1˝(25.4mm) Free speed……………………………………………………………………………………3600/min Max torque………………………………………………………………………………….2220ft/lb(3100N.m) Operating pressure………………………………………………………………………….90psi(6.3bar) Air inlet size…………………………………………………………………………………1/2˝ Air hose size………………………………………………………………………....5/8˝ Weight………………………………………………………………………………………20.5kgs Important Safety Rules 1. Follow all workshop safety rules, regulations, and conditions when using wrench. 2. Do not wear watches, rings bracelets or loose clothing when using air tools. WARNING! Disconnect from air supply before changing accessories or servicing.
- Page 3 WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the wrench. Too high an air pressure and unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage or personal injury. 4.
- Page 4 WARNING: 1. Only use impact sockets which are specifically designed for use with impact wrench. 2. Connect the wrench to the air hose . 3. Place the socket over the subject nut and depress the trigger to operate the wrench. 4.
- Page 5 Trouble Shooting The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. If any of the following symptoms appears during your operating, stop using the tool WARNING: immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool.
- Page 6 TAT40111 Exploded view...
- Page 7 TAT40111 Spare part list Part Description Part Description Pin 4*10 oil seal Cylinder back Cover Casing head back paper pad Carrying handle Closed cover Spring Washer 6 value cover Bolt M6*22 Bolt M8*45 O-ring 17*2.65 otary controller Spring Washer 8 steel ball φ4...
- Page 8 1˝ AIR IMPACT WRENCH www.totaltools.cn TOTAL TOOLS CO., PTE. LTD. MADE IN CHINA T0919.V06 3100N.m...
