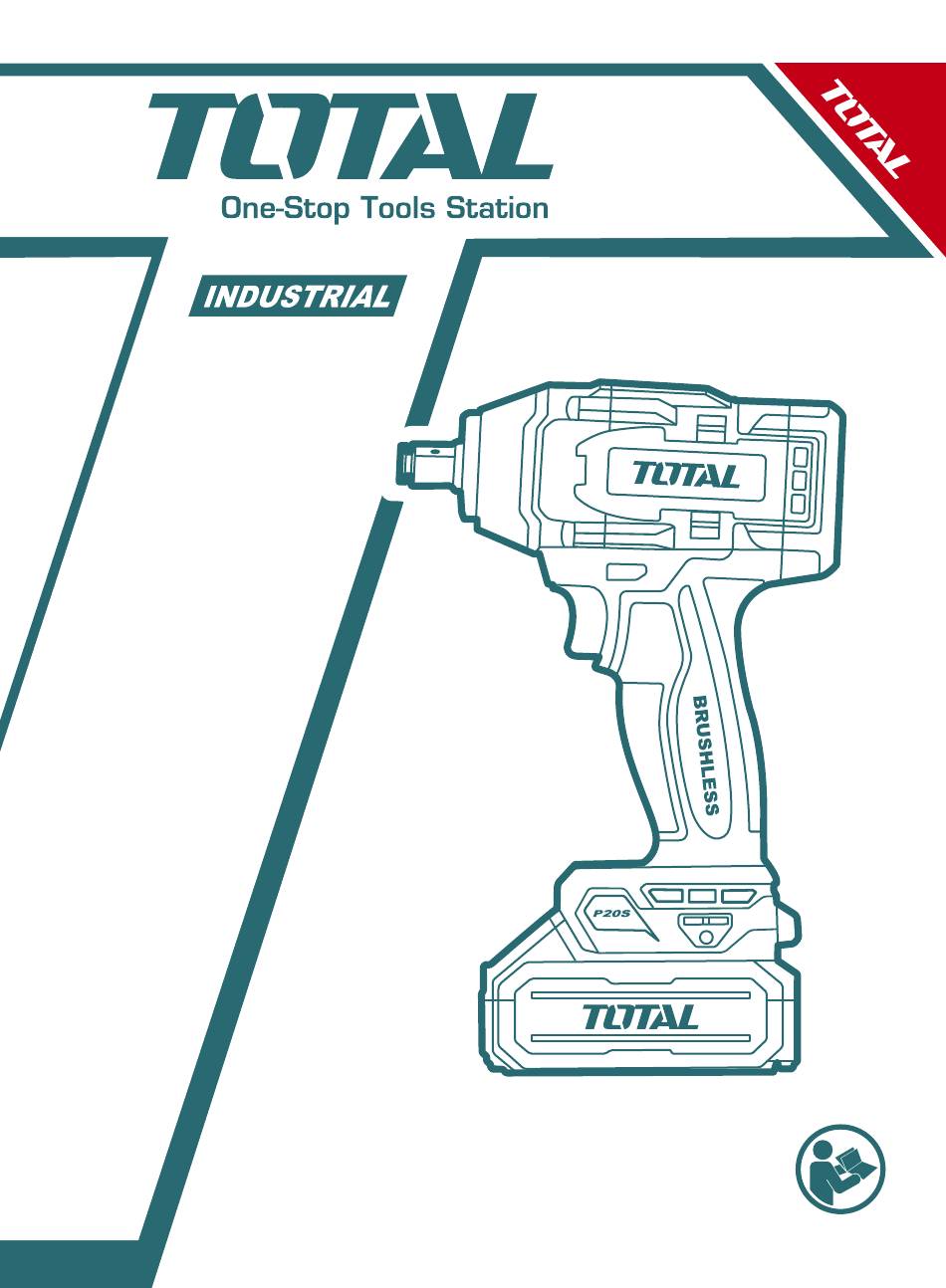

- Page 1 PRODUCT MANUAL LITHIUM-ION IMPACT WRENCH TIWLI2050 UTIWLI2050 TIWLI2050xy UTIWLI2050xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English Keep cells and batteries clean and dry. Wipe the cell or battery terminals with a clean dry cloth if they become dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
- Page 8 | English Do not touch the terminals with any conductive material. Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.
- Page 9 | English The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer’s responsibility to ensure that its activities comply with the applicable regulations.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 11: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING ⚠ Cordless impact wrench safety warnings Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. -
Page 12: Technical Specifications
| English SPECIFICATIONS 1/2˝ Square drive Forward and reverse rotation control LED work light Switch Technical specifications TIWLI2050 UTIWLI2050 Model No. TIWLI2050xy UTIWLI2050xy Square drive 12.7mm (1/2˝) 12.7mm (1/2˝) No load speed 0-1200/0-1800/0-2200/min 0-1200/0-1800/0-2200/min Impacts per minute 0-2400/0-2800/0-3300/min 0-2400/0-2800/0-3300/min Fastening torque 500Nm 500Nm Nut busting torque... - Page 13 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity TFBLI2001 2.0Ah TFBLI2001xy TFBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah TFBLI2002xy TFBLI2053 5.0Ah TFBLI2053xy Model No.
- Page 14 | English OPERATION PICTURE...
-
Page 15: Function Description
| English FUNCTION DESCRIPTION ⚠ CAUTION Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool Installing or removing battery cartridge (see Figure A) Figure A: 1. Button 2. Battery cartridge ⚠... - Page 16 | English Indicator lamps Remaining capacity Lighted >80% 30% to 80% <30% ⚠ NOTE Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. ⚠ NOTE Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.
-
Page 17: Electric Brake
| English ⚠ CAUTION Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. - Page 18 | English ⚠ CAUTION Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool. ⚠ CAUTION When not operating the tool, always set the reversing switch lever to the neutral position.
- Page 19 | English trigger to the extent that the tool does not operate. ⚠ NOTE While pulling the switch trigger, the impact force grade cannot be changed. Specifications of each impact force grade Impact force grade Maximum Application Work displayed on panel blows Tightening when...
-
Page 20: Operation
| English (see Figure G) Figure G: 1. Impact socket 2. Square drive Align the hole in the side of the impact socket with the detent pin on the square drive and push the impact socket onto the square drive until it locks into place. Tap it lightly if required. - Page 21 | English Impact socket Failure to use the correct size impact socket will cause a reduction in the fastening torque. A worm impact socket (wear on the hex end or square end) will cause a reduction in the fastening torque. Bolt Even though the torque coefficient and the class of bolt are the same, the proper fastening torque will differ according to the diameter of bolt.
- Page 22 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 23 TOTAL TOOLS WORLD MADE IN CHINA T0923.V01 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
