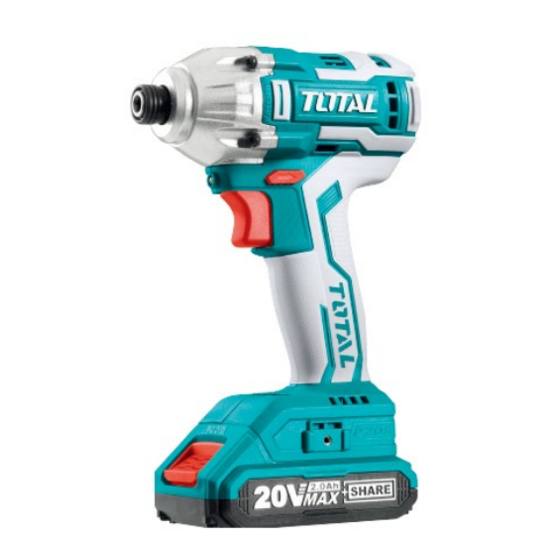

LITHIUM-ION IMPACT DRIVER
TIRLI2002
v
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIRLI2002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Total TIRLI2002

Summary of Contents for Total TIRLI2002

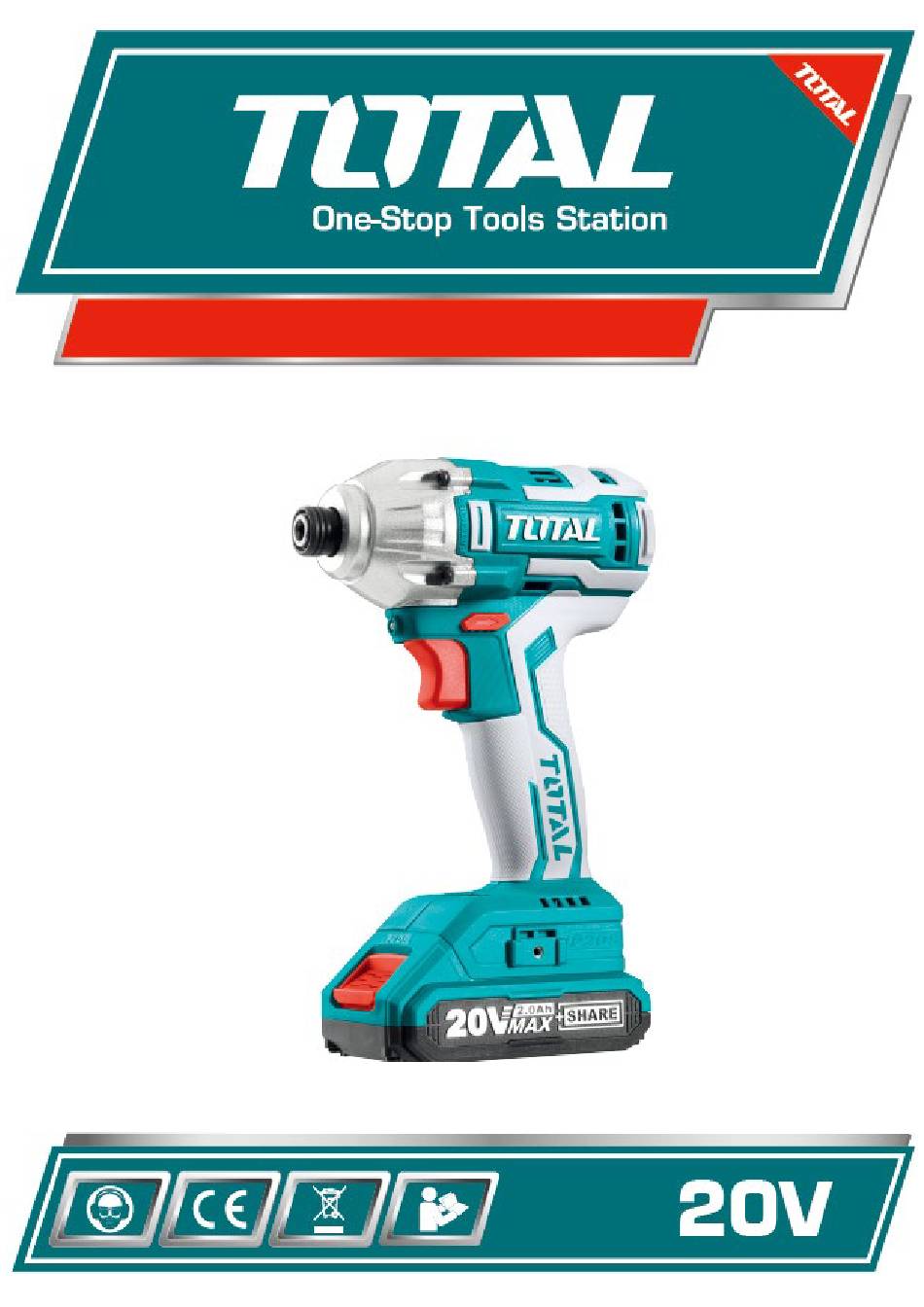

  • Page 1 LITHIUM-ION IMPACT DRIVER TIRLI2002...

  • Page 2: Security Instructions

    Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electrical shock, fire, and/or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 3 4) Use and care of the battery tool a. Recharge the battery only with the charger specified by the manufacturer. An unsuitable charger can create a fire hazard. b. Use power tools only with specifically designated batteries. Use of other batteries may create a risk of injury or fire.

  • Page 4: Additional Security Warnings

    Safety rules for correct use Double insulation for additional protection. Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice.

  • Page 5: Other Risks

    Other risks Even when the power tool is used as prescribed, it is not possible to eliminate all residual risk factors: a. Health defects resulting from vibration emission if the power tool is used for a longer period of time or if it is not managed and maintained properly. b.

  • Page 6: Other Warnings

    Other warnings Save these instructions Attention Do not let comfort or familiarity with the product (gained from repeated use) replace strict adherence to safety rules for the product in question. Incorrect use or non-compliance with the safety rules indicated in this instruction manual can cause serious personal injury.

  • Page 7: Product Description

    Note: Use only manufacturer-approved batteries. The use of non-original batteries or altered batteries may cause battery explosion or serious personal injury. Tips for maintaining maximum battery life 1. Charge the battery cartridge before it is fully discharged. Always stop tool operation and charge the battery cartridge when you notice less power from the tool.
  • Page 8 Attention Always install the battery cartridge completely until the red indicator cannot be seen. Otherwise, it may accidentally fall off the tool and injure you or someone around you. Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.
  • Page 9 "OFF" position when released. Electric brake This tool is equipped with an electric brake. If the tool does not stop quickly after releasing the switch trigger, have the tool repaired by an authorized Total dealer. Front light 1. light Pull the switch trigger to turn on the light.
  • Page 10 1. Button Impact Force Modification 1. Hard 2. Soft 3. Button Impact strength grade Application max hits Purpose displayed on the panel example Tighten wood Squeeze when strength High screws, tighten and speed are desired bolts Tighten with less force Tighten small to avoid breaking the screws like M6...
  • Page 11 Reversing switch lever 1. Reversing switch lever This tool has a reverse switch to change the direction of rotation. • Press the reversing switch lever from side A to rotate clockwise. • Press from side B to rotate counterclockwise. • When the direction change switch lever is in the neutral position, the switch trigger cannot be pulled.
  • Page 12 1. Screwdriver bit 2. Chuck To install the screwdriver tip: Pull the sleeve in the direction of the arrow and insert the tip of the screwdriver • into the chuck as far as it will go. Then release the chuck to secure the tip of the screwdriver. •...
  • Page 13 Start up Attention Always insert the battery cartridge all the way in until it clicks into place. If you can see the red part at the top of the button, it is not completely locked. Insert it fully until the red part is no longer visible. Otherwise, it may accidentally fall off the tool and injure you or someone around you.
  • Page 14 Proper tightening torque for high tensile bolt 1. Tightening time (second) 2. Tightening torque Work indications Keep the tool pointed directly at the bolt or nut. Use the appropriate drill bit for the screw/bolt head you wish to use. When tightening an M8 or smaller screw, choose a suitable impact force and carefully adjust the pressure on the switch trigger so that the screw is not damaged.

  • Page 15: Maintenance

    To maintain the safety and reliability of the product, repairs and any other type of maintenance or adjustment must be carried out with original spare parts and by official Total distributors. A replacement of non-original parts could cause injury to the machine and the operator.

  • Page 16: Exploded View

    Exploded view...
  • Page 17 LITHIUM-ION IMPACT DRIVER...
