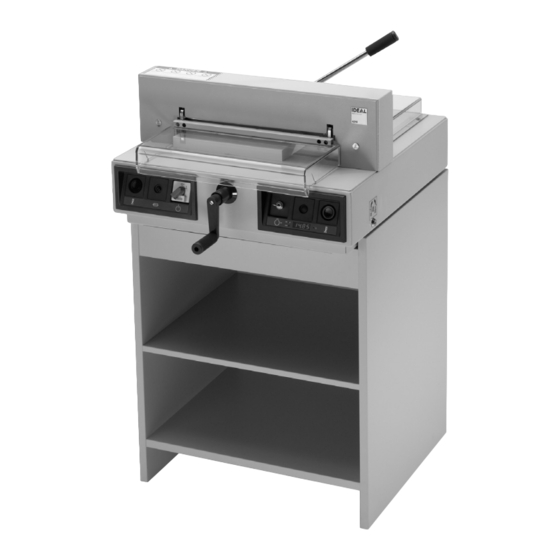

IDEAL 4215 Operating Instructions Manual

Guillotines
Hide thumbs Also See for 4215:

Advertisement

Quick Links

Download this manual
Guillotines
GB Operating Instructions
IDEAL 4215
IDEAL 4250

Advertisement

loading

Related Manuals for IDEAL 4215

Summary of Contents for IDEAL 4215

  • Page 1 Guillotines GB Operating Instructions IDEAL 4215 IDEAL 4250...
  • Page 2 • • Sicherheitshinweise IDEAL 4215 • IDEAL 4250 Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. Please read these operating instructions before putting the machine into operation and observe the safety precautions.
  • Page 3 • S • icherheitshinweise Keine Bedienung durch Kinder! GB Children must not operate the machine! Pas d‘utilisation par un enfant! Geen bediening door kinderen! Non lasciare utilizzare il tagliacarte a bambini! No dejar que la utilicen los niños! Installera maskinen utom räckhåll för barn! FIN Asentakaa laite lasten ulottumattomiin ! Installer maskinen utenfor rekkevidde for barn! Dzieciom nie wolno obsługiwać...
  • Page 4 • • Sicherheitshinweise IDEAL 4215 • IDEAL 4250 Messer nie lose liegen lassen! Messer nur mit Messerwechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 26 und 28). Warnung! Verletzungsgefahr! GB Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 26 and 28).
  • Page 5 • S • icherheitshinweise DK Knivbladet må aldrig efterlades uden opsyn. Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 26 og 28) FARE! Risiko for legemlig beskadigelse. Nikdy nenechávejte nůž bez krytu. Nikdy nevyjímejte nebo neprepravujte nuz bez ochranného krytu (viz.
  • Page 6 • • Sicherheitshinweise IDEAL 4215 • IDEAL 4250 Keine harten und splitternden Materialien schneiden! GB Do not cut hard materials or materials which may splinter! La coupe de matériaux trop durs ou risquant des projections est interdite ! Snij geen harde materialen of materiaal dat kan splinteren!
  • Page 7 • • Safety precautions The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is...
  • Page 8 • • Safety precautions IDEAL 4215 • IDEAL 4250 All components which could endanger the operator are covered by a guard! Operating the machine without safety device is forbidden! • Movable front safety guard (A) • rear screwed safety guard (B) •...
  • Page 9 • • Safety precautions The dangerous cutting movement is safeguarded by a movable guard (A), rear screwed safety guard (B) and a safety two-handed control system! (C) Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A),(correct if distance between cover and table is <...
  • Page 10 • • Safety precautions IDEAL 4215 • IDEAL 4250 Protect mains cable against heat, oil and sharp edges! Connect the power cord to a single phase 230 V / 10A min socket. 120 V / 15A min Ensure free access to mains...
  • Page 11 • • Safety precautions When not in use for a longer period switch off. (Main switch to "0"). Danger! Do not turn main switch to position "0" whilst blade is moving upwards or downwards! Risk of injury! Danger! Blade must always be covered by the pressing bar.
  • Page 12 • • Installation IDEAL 4215 • IDEAL 4250 Unpack the cabinet (A), (accessories) or stand (B), (accessories) and assemble according to the enclosed separate instructions. 2 strong people are required to lift the machine onto the cabinet. Beware of fingers!
  • Page 13 • • Installation Assembly of stand: 2 strong people are required to lift the machine out of the packaging. • Lay the machine on the floor side wards (1.). • Remove the lower cover (2.) • Place the cutter correctly onto the machine stand.
  • Page 14 • • Installation IDEAL 4215 • IDEAL 4250 Screw on the backgauge crank (A). Screw on the handle (B) (only IDEAL 4215) found in the tool set (C). Plug into socket. - 14 -...
  • Page 15 • • Operation It is forbidden to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices are functioning and complete before use. • All covers have to be mounted (A). • The release for cutting is allowed only if the cover is closed and the two-hand safety device is operated at the same time (B).
  • Page 16 • • Operation IDEAL 4215 • IDEAL 4250 Position the main switch "I" (A) Insert the key the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use. - 16 -...
  • Page 17 • • Operation The measurement is set with the backgauge crank.(A) The symbol – rotary direction – moves to the right on the display (B) (see picture C). The rotary direction of the backgauge crank (A) is indicated on the right. Keep turning the backgauge crank to the right until a measurement appears (see picture E).
  • Page 18 • • Operation IDEAL 4215 • IDEAL 4250 Optical cutting red line (A). Blade cuts on the front edge (B) of the light beam. (Only use when no exact cut is required). Pull out the handle to avoid the measurement being wrongly adjusted.
  • Page 19 • • Operation Position the paper on the backgauge (A) and the side lay (B). To move paper stacks, please use the paper knock-up block (C). Run backgauge to the front for turning the paper stack. Close the safety guard. - 19 -...
  • Page 20 • • Operation IDEAL 4215 • IDEAL 4250 IDEAL 4215 Before every cut the lever must be moved to the left and tightened with light pressure. IDEAL 4250 The clamp moves automatically when cutting is activated. Cutting activation: Press both buttons of the two-handed control system (A) simultaneously and keep them pressed until the paper is completely cut.
  • Page 21 • • Operation Operating elements - Front safety guard - Safety two-handed control system - Overload switch blade drive - Clamping - Main switch - Crank handle for backgauge setting - Key switch - Backgauge - Side lay left - Display cutting size (cm or inch) - Changeover cm/inch - Measuring unit (cm or inch) - 21 -...
  • Page 22 • • Operation IDEAL 4215 • IDEAL 4250 Start machine • Main switch to position "I", insert the key for the control panel and turn it to the right. Open the front safety guard Warning! Before cutting a measurement please check if the correct scale (cm or inch) is set.
  • Page 23 • Move the pressing lever to the left by a slight swing (only IDEAL 4215). • Close the front safety guard • Release the cut. Cut according to markings •...
  • Page 24 • • Blade and cutting stick replacement IDEAL 4215 • IDEAL 4250 If the cutting quality decreases: • Check the cutting depth (see page 32). • Check the cutting stick (see page 25). • Replace or grind the blade (see page 24 - 32).
  • Page 25 (The cutting stick can be used eight times). (2.). Waring! The machine may only be operated when the cutting sticks are inserted! After exchanging the cutting stick close the clamp by moving the clamp lever to the left (3) (only IDEAL 4215). - 25 -...
  • Page 26 • • Blade and cutting stick replacement IDEAL 4215 • IDEAL 4250 Position the main switch to "0" (1.) Open the safety guard (2.). Remove the 2 blade screws on the elongated holes (3.). Then put the blade changing tool (R) into place and fasten it to the blade (4.).
  • Page 27 • • Blade and cutting stick replacement Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (A) • blade must be covered! (B). Danger! Risk of injury! - 27 -...
  • Page 28 • • Blade and cutting stick replacement IDEAL 4215 • IDEAL 4250 Place the blade to be exchanged, using the blade changing tool, into the blade carrier and push to the top and to the left.(1.) (see picture A) while doing so push both springs back.
  • Page 29 • • Blade and cutting stick replacement Push the blade changing tool to the top with your hand (1.). First, lightly tighten the middle blade screw with your other hand (2.) and then both blade screws left and right (3.). Remove the blade changing tool (R) (unscrew the grips).
  • Page 30 • • Blade and cutting stick replacement IDEAL 4215 • IDEAL 4250 Open the clamp by moving the clamp lever to the right (1.). Remove all tools and distribute paper along the entire cutting length (2.). Turn main switch to position "I" (3.).
  • Page 31 • • Blade and cutting stick replacement Tighten all 5 blade screws. - 31 -...
  • Page 32 • • Blade and cutting stick replacement IDEAL 4215 • IDEAL 4250 Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the knob for blade depth adjustment (A) ¼ turn to the right until the paper is cut along the entire length.
  • Page 33 • • Maintenance and cleaning Maintenance work may only be performed by trained staff. Danger! Disconnect the mains before starting any service work or before removing the cover. Safety test The safety regulations are according to the regulations of the country where the cutting machine is operated.
  • Page 34 • • Blade and cutting stick replacement IDEAL 4215 • IDEAL 4250 = Greasing points on the machine. Nr. 9003 233 Nr. 9001 828 Grease the backgauge (A) control weekly. (Use non-resinous grease). Grease the remaining parts (B) twice a year (see picture).
  • Page 35 • • Possible malfuntions Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Release a cut see page 20. - 35 -...
  • Page 36 • • Possible malfuntions IDEAL 4215 • IDEAL 4250 Machine turns off: • Machine overloaded Safety button (A) ejects. Allow 1 minute cooling time and reset the safety button (A). • Machine blocked • Blade is blunt Eliminate the cause, and push the safety button (A).
  • Page 37 • • Possible malfuntions Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B). (See page 32). Poor cutting quality or blade stays in the paper stack.
  • Page 38 • • Possible malfuntions IDEAL 4215 • IDEAL 4250 Cut cannot be made. • If cover is open: close • If cover is closed: open and re-close it. (Security check). Motor runs but blade does not move downwards. • Security brake has been activated!
  • Page 39 Accessories Recommended Accessories: Blade Nr. 9000 121 Cutting stick (6 pieces) Nr. 9000 221 Paper knock-up block Nr. 9000 520 Blade changing tool Nr. 9000 517 Cabinet Nr. 4215 1100 Stand Nr. 4205 1100 Included in delivery. - 39 -...
  • Page 40 • • Technical data IDEAL 4215 • IDEAL 4250 Technical data: • Power supply: 230V/50Hz/0,45KW, 120V/60Hz/0,45KW • Cutting height: 40 mm • Sound level: EN 13023: < 70 dB (A) • Leakage current < 3,5mA • Power cord gauge min. 1,5mm (230V) •...
  • Page 41 • • Technical data This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 98/37/EG, 2006/95/EG and 2004/108/EG. Sound level information: The sound level is < 70 db (A) as defined by EN 13023. Subject to alteration without notice. - 41 -...
  • Page 42 IDEAL 4215 • IDEAL 4250 EG-KONFORMITÄTSERKLÄRUNG EC-declaration of conformity Déclaration de conformité CE - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que 4215; 4250 - folgenden einschlägigen Bestimmungen entspricht...
  • Page 43 Remarks: - 43 -...
  • Page 44 IDEAL • Made in Germany Document Shredders Trimmers and Guillotines • • • • • IDEAL Krug & Priester 72336 Balingen Germany www.ideal.de...

This manual is also suitable for:

4250
