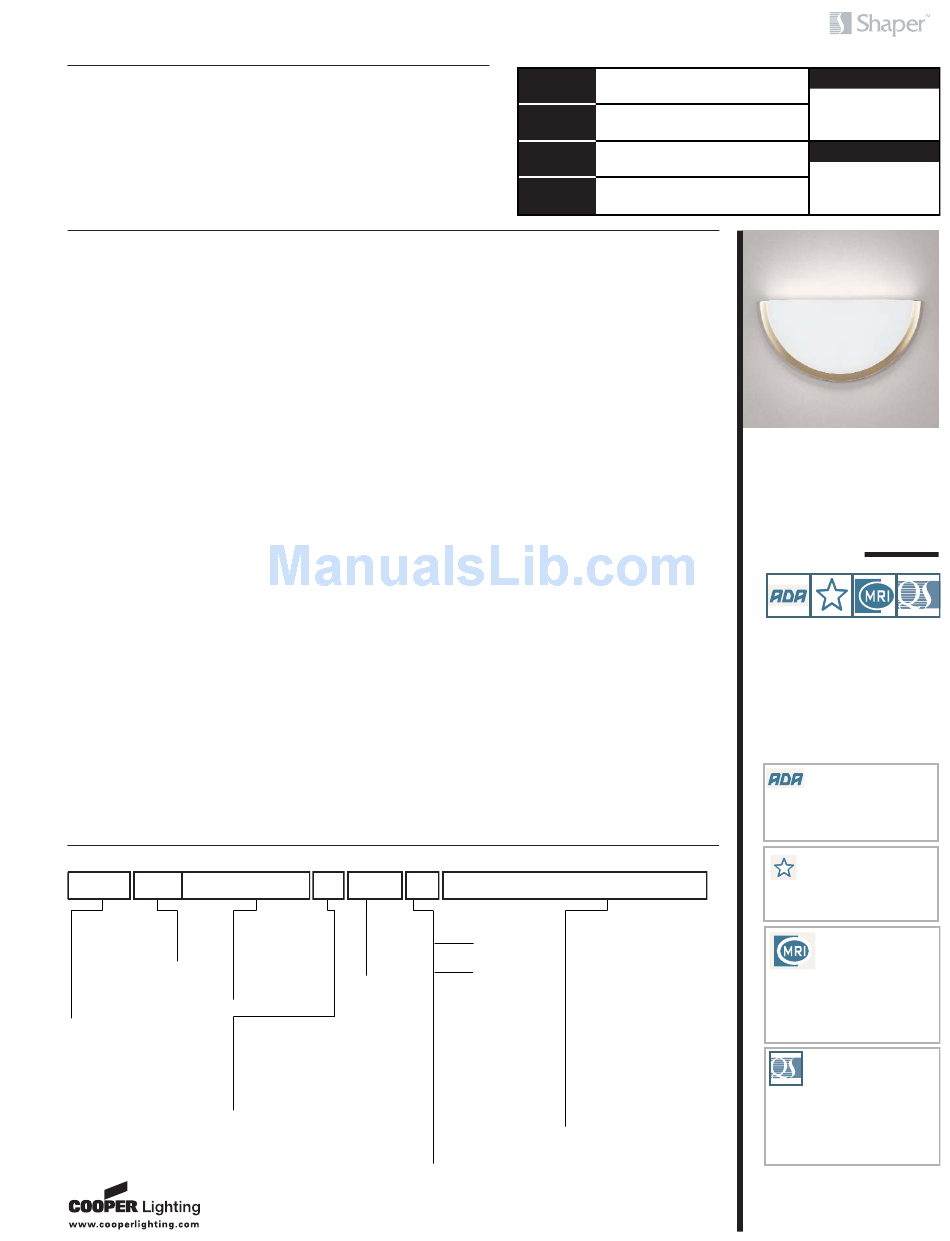

Cooper Lighting Shaper 643 SERIES Specification Sheet

D E S C R I P T I O N
643 Luminous Quarter Sphere Wall Sconce features three Back Trim
options. 643/4 is ADA compliant.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or plated cold rolled
steel back plate with a 1/8" thick
matte white acrylic bowl. 1/4"
Reduced Back Trim (RBT) or 3/4"
Standard Back Trim (SBT) or
Large Back Trim (LBT) in painted
or plated cold-rolled steel base
metal. Optional natural
aluminum hexcel louver. Solid
brass, stainless steel or painted
steel trim ring.
F i n i s h
Finish (Back and Caming Trim)
Standard: Matte White (MW).
Premium: Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Polished Brass (PB),
Satin Nickel (SN), Polished Nickel
(PN), Satin Copper (SCP),
Polished Copper (PCP),
Lacquered Satin Chrome (SCL),
Lacquered Satin Nickel (SNL) or
Custom Color (CC). Mounting
Plate is painted matte white.
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
O R D E R I N G I N F O R M AT I O N
Sample Number: 643/4-18-RBT-CFL/2/13-277V-PCP
Series Size Style
643 Luminous = 14" LBT Large Back
Quarter 1
18"
Sphere
RBT 1/4" Reduced
643/4 ADA Compliant =
Luminous
SBT 3/4" Standard
Quarter
Sphere
Lamp
Notes:
CFL/1/13
1
Available with 643/4 Series.
2 CFL/2/13
Available with 643 Series.
3
Available in 14". CFL/2/26
4
Available in 18".
INC/1/60
5
Available with CFL only.
INC/1/75
6
Supplied by others.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
L a m p / S o cke t
643: Two (2) 13W (2GX7) 4-pin
low wattage CFL lamps, two (2)
26W (G24q-3) 4-pin quad CFL
lamps or one (1) 75W A-19 lamp.
643/4-14": One (1) 13W (2GX7)
4-pin low wattage CFL lamp.
643/4-18": Two (2) 13W (2GX7)
4-pin low wattage CFL lamps or
one (1) 60W T-10 lamp. CFL
socket injection molded plastic.
INC socket fired ceramic rated for
660W-250V. Lamps furnished by
others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Trim Ring (TR), Hexcel Louver
(HL), Modified Integral
Emergency Battery (643
only)(MEM), Remote Emergency
Voltage
= 120V
2
Trim 5
277V
=
5
347V
Back Trim
=
Back Trim
3, 1
4, 1
2
4, 1
2
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Battery (643/4 only) - Supplied by
others (REM), Hand Painted Faux
Alabaster Diffuser (FD), Double
Trim Ring with Balls (2TRB),
Damp Location (DL): All Painted
Finishes, Lacquered Satin
Chrome (SCL) and Lacquered
Satin Nickel (SNL) finishes only.
Energy Star Rating - Consult
factory. MRI Applications (INC
only) - Contact Factory.
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements. 643/4 is
ADA Compliant.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Finish Options
2TRB Two Trim =
Standard
Rings w/ Balls
MW Matte White =
TR Trim Ring =
Premium
CC Custom Color =
DL Damp Location =
PB Polished Brass =
MEM Modified Integral =
Emergency
PC Polished Chrome =
Battery
PCP Polished Copper =
REM Remote =
PN Polished Nickel =
Emergency
SB Satin Brass =
Battery
SC Satin Chrome =
FD Hand Painted =
SCL Lacquered Satin =
Faux Alabaster
Chrome
Diffuser
SCP Satin Copper =
HL Hexcel Louver =
SN Satin Nickel =
SNL Lacquered Satin =
Nickel
643/4 SERIES
I n t e r i o r W a l l L u m i n a i r e
L u m i n o u s Q u a r t e r S p h e r e
Shaper offers a large selection of ADA
interior and exterior wall luminaires.
ADA requires all fixtures below 68" to
have a maximum projection of 4".
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
2
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
QUICK
6, 1
SHIP
(QS)
Shaper's Quick Ship program features
over thirty-four fixtures with finish
options such as Satin Chrome, Natural
Aluminum and Satin Brass, and a wide
variety of lamp selections. All products
ship in five days from receipt of order.
Refer to the Icon Legend
Link on shaperlighting.com.
shaperlighting.com
Type
Date
643 SERIES
w i t h B a c k Tr i m
AMERICAN DISABILITIES
ACT (ADA)
MAGNETIC
RESONANCE
IMAGING (MRI)
