Cooper Lighting 641 Series Specification Sheet

D E S C R I P T I O N

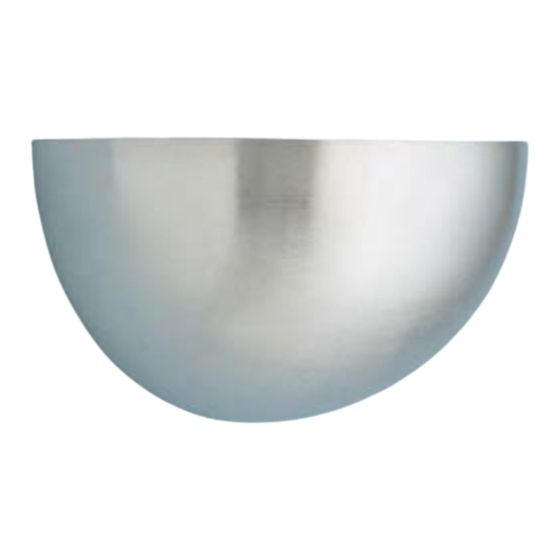

641 Quarter Sphere Wall Sconce features indirect illumination and is
offered in three sizes.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or plated cold-rolled
steel base metal. Optional hexcel
top louver, painted white or black
aluminum.
F i n i s h
Standard: Matte White (MW).
Premium: Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Polished Brass (PB),
Satin Copper (SCP), Polished
Copper (PCP), Oxidized Copper
(OCP), Satin Nickel (SN),
Polished Nickel (PN), Natural
Aluminum (NA) [Sustainable
Design], (SAL) Laquered Satin
Aluminum, Oxidized Brass
(OBRS), Gun Metal (GNM),
Lacquered Satin Chrome (SCL),
Lacquered Satin Nickel
(SNL) or Custom Color (CC).
Custom Decorative Metals:
(Specify a Color and Pattern)
Colors - Clear (CLR, Cabernet
(CBT), Sapphire (SPE), Sage
(SGE), Brass (BRS), Copper
(CPR), Black Pearl (BPL), Slate
Green (SGN), Champagne (CMP),
Chocolate (CLE), Indigo (IDO),
Royal blue (RBE), or Pewter
(PWR). Patterns - Coral (COL),
Seashell (SHL) or Smooth (SMT).
Minimum quantity is 5 of one
color/pattern. Contact the factory
for lead time.
O R D E R I N G I N F O R M AT I O N
Sample Number: 641-16-MH/1/70-277V-PCP
Series Lamp
641 Wall = CFL/1/26
Sconce
CFL/2
(26/32W-Triple)
CFL/2/13
Size
CFL/2/26
10"
INC/1/75
12"
INC/1/100
16"
INC/2/100
HAL/1/300
Notes:
MH/1/50
1 MH/1/70
Available in 10".
2
MH/1/100
Available in 16".
3
Available in 12".
4
CFL and MH only.
5
Available with CFL only.
6
Supplied by others.
7
MH only.
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified CFL lamp wattage.
Metal halide ballast are HPF
magnetic, multi-volt 120V/277V
for the specified wattage. Contact
factory for 347V.
L a m p / S o cke t
10": One (1) 26W (G24q-3) 4-pin
quad CFL lamps or one (1) 75W
A-19 lamp.
12": Two (2) 13W (2GX7) 4-pin
low wattage CFL lamps, two (2)
26W (G24q-3) 4-pin quad CFL
lamps or one (1) 100W A-19
lamp.
16": Two (2) 26W or 32W (GX24q-
3) 4-pin triple tube CFL lamps,
one (1) 50/70/100W open burn
metal halide ED-17 lamp, one (1)
300W T-3 linear halogen double-
ended lamp or two (2) 100W A-19
lamps. CFL socket injection
molded plastic top. Metal halide
socket is ceramic pulse-rated,
4KV. INC socket fired ceramic
rated for 660W-250V. Lamps
furnished by others.
Voltage Finish
1 120V
Standard
4 MW Matte White =
277V
2
4
347V
Premium
CC Custom Color =
3
3 GNM=Gun Metal
MB Matte Black =
1
3 =Oxidized Copper
OCP
2
OBRS Oxidized Brass =
2
PB Polished Brass =
2
PC Polished Chrome =
2
PCP Polished Copper =
2
PN Polished Nickel =
SB Satin Brass =
SC Satin Chrome =
SCL Lacquered =
Satin Chrome
SCP Satin Copper =
SN Satin Nickel =
SNL Lacquered =
Satin Nickel
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
White Hexcel Top Louver - CFL
only (WHL), Black Hexcel Top
Louver - CFL only (BHL),
Tempered Glass Lense - MH only
(TGL), Quartz Restrike (MH only)
- Contact factory, Remote
Emergency Battery - Supplied by
others (REM), MRI Applications
(INC only) - Contact factory,
Damp Location (DL): All Painted
Finishes, Lacquered Satin
Chrome (SCL) and Lacquered
Satin Nickel (SNL) finishes only.
Energy Star Rating - Consult
factory.
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Contact the factory regarding
scale options, unique finishes,
mounting, additional
materials/colors, or decorative
detailing.
Options
Color
BHL Black Hexcel =
Custom
Top Louver
Decorative
WHL White Hexcel =
Metals
Top Louver
CLR=Clear
CBT=Cabernet
DL Damp Location =
SPE=Sapphire
REM Remote =
SGE=Sage
Emergency
BRS=Brass
Battery
CPR=Copper
BPL=Black Pearl
= Sandblasted
TGL
SGN=Slate green
Tempered
CMP=Champagne
Glass Lens
CLE=Chocolate
IDO=Indigo
RBE=Royal Blue
PWR=Pewter
Pattern
COL=Coral
SHL=Seashell
SMT=Smooth
shaperlighting.com
Type
Date
641 SERIES
I n t e r i o r W a l l L u m i n a i r e
Q u a r t e r S p h e r e
New Custom
Decorative Metals Finish
SUSTAINABLE
DESIGN
Shaper has a long-standing history
of offering environmentally-friendly
fixtures. The copper and bronze alloys
used in our exterior luminaires feature
up to 98% recycled content, contribute
less undesirable air emissions compared
to painted aluminum and are easy to
5
recycle.
5
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
6, 6
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
7
ENERGY
STAR
Shaper now offers a wide variety of
fixtures that can be provided with an
Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
