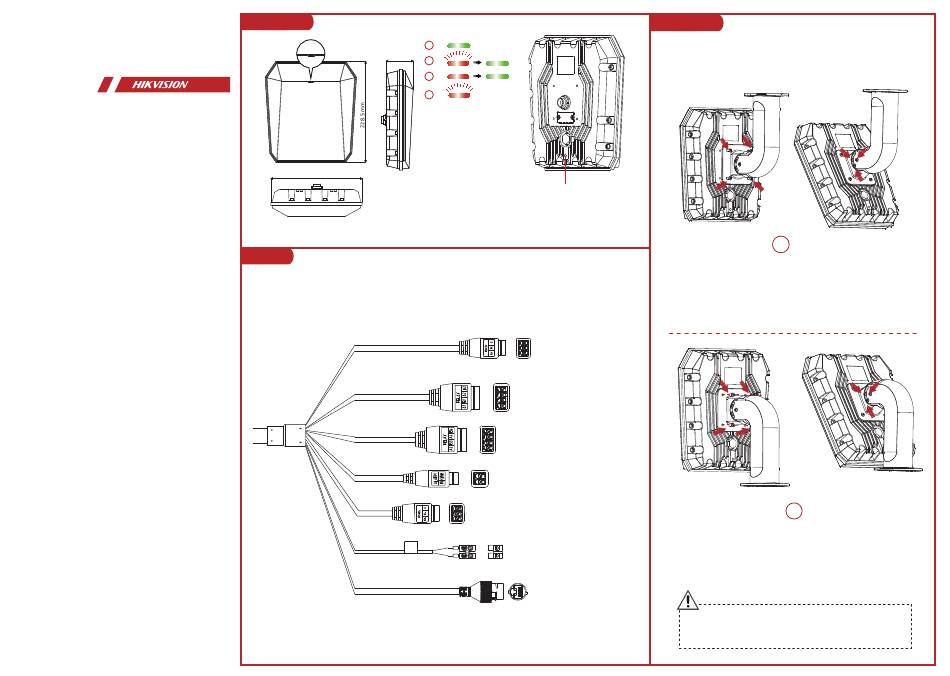

HIKVISION DS-TDSB0 Series Quick Start Manual

1

Appearance

Security Radar
Quick Start Guide
206.5 mm
2

Wiring

a
Indicator
60.8 mm
b
c
d
Indicator
a. Device Power on
Solid Green: Device is power-on.
b. Fault Alarm
Flashing Red: Fault Alarm Occurred,
Solid Green: Alarm Restored
c. Zone/Trigger Line Alarm
Solid Red: Zone/Trigger Line Alarm
Occurred
Solid Green: Alarm Restored
d. Restoring Factory Settings
Flashing Red and Green: Restoring
Factory Settings Succeeded
3 3
安装

Installation

Screw: SC-PSFM4×10-SUS-GB9074.8
Notes:
1. If using latitude and longitude/GPS to calibrate, you should measure the latitude and
longitude and orientation angle of the radar at the time of installation.
2. When measuring the direction of the radar, the deviation angle of the radar direction should
be measured with 0° due north as the reference.
Grounding
Ceiling Mounting
a. Use 4 screws to secure the bracket on the device.
b. Loosen the screws on each side on the bracket.
c. Adjust the device's pitch angle and secure the
screws back.
RS-232 Debugging Port
(for debugging use only)
Relay Output
Relay Output
Alarm Input
RS-485
Pole Mounting
Power Input
a. Use 4 screws to secure the bracket on the device.
(36 VDC, with power adaptor)
b. Loosen the screws on each side on the bracket.
c. Adjust the device's pitch angle and secure the
screws back.
Network
Installation Notes
1. Install the device according to the instructions in Quick Start Guide.
2. To prevent injury, this device must be securely attached to the installation surface in
accordance with the installation instructions.
3. CAUTION: If the bracket is designed for a specific device model of our company, use the bracket
with the corresponding device only. Use with other devices may result in instability and cause
injury.
